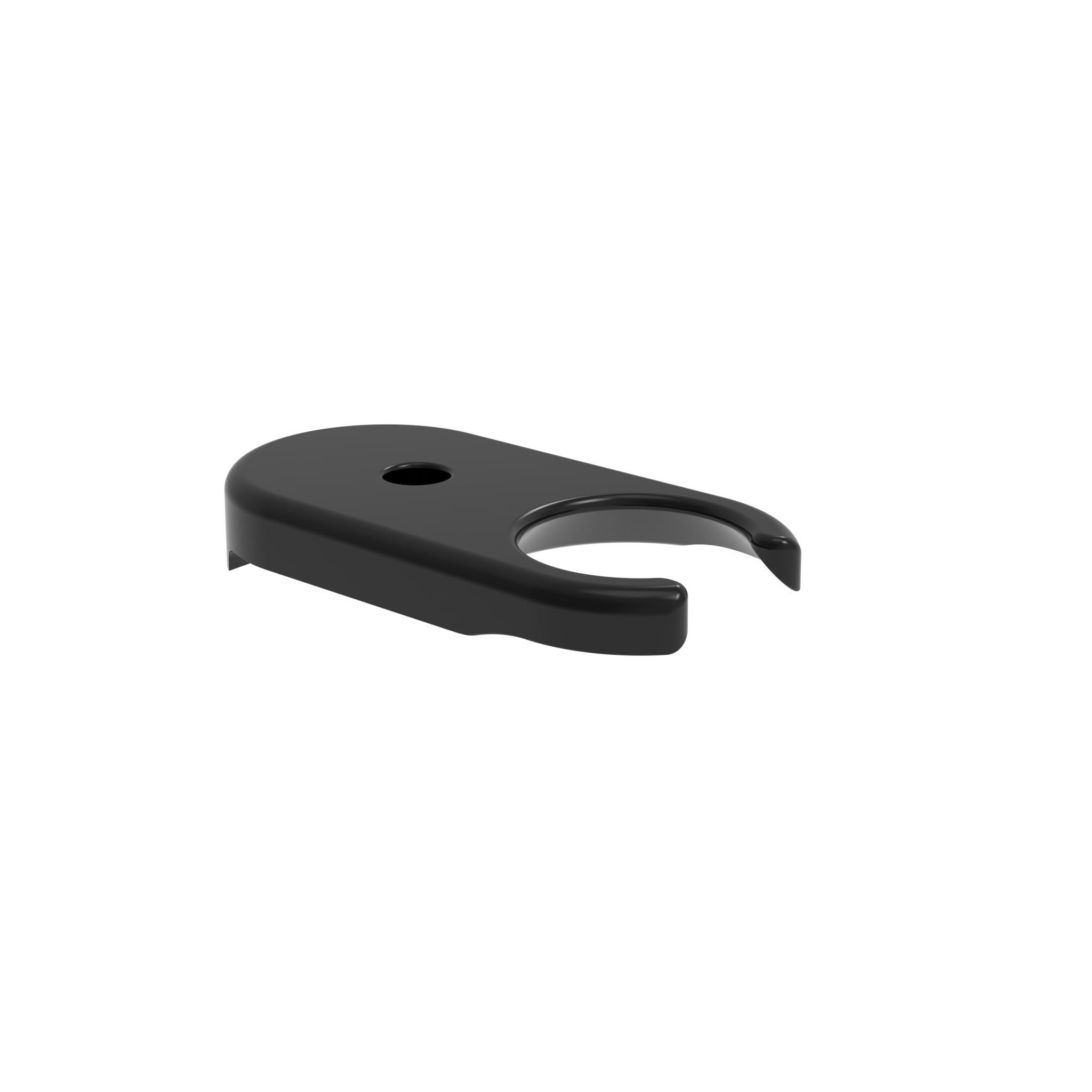

Floor Mounting for Base of Trapezoid Foot

Product information "Floor Mounting for Base of Trapezoid Foot"

Color:
Black

Delivery Countries:
Worldwide

Description:

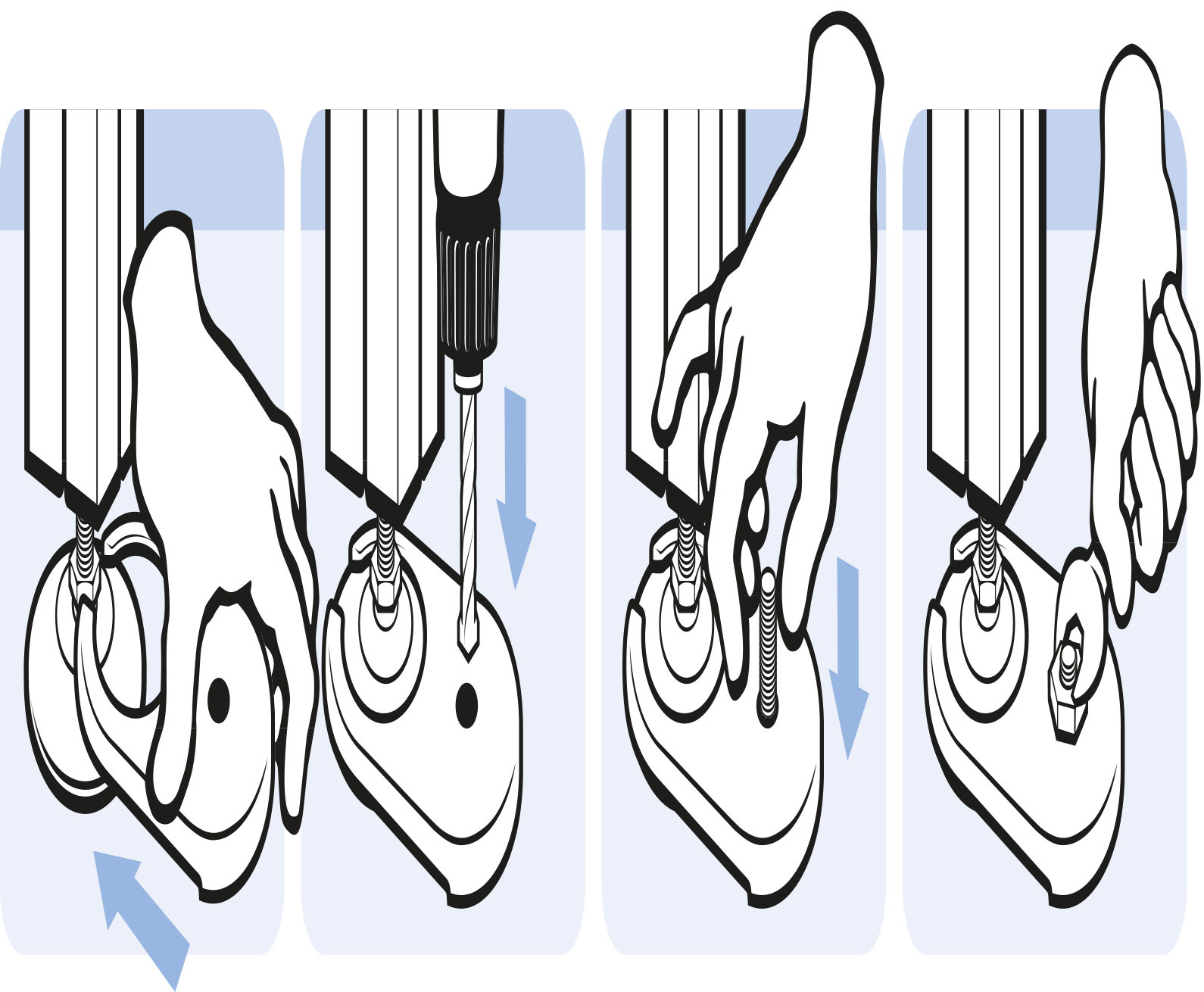

To securely fix the trapezoid leveling foot to the floor - can be mounted afterward

Material:
Zinc die-cast

Surface:
Powder coated

Tip:
Compatible Trapezoid Base see 098DI060ZS and 098AI060ZS

Pack Quantity:	1 piece
Model:	For trapezoid base
Weight (g):	240.5
ERP Number:	103733

Variants

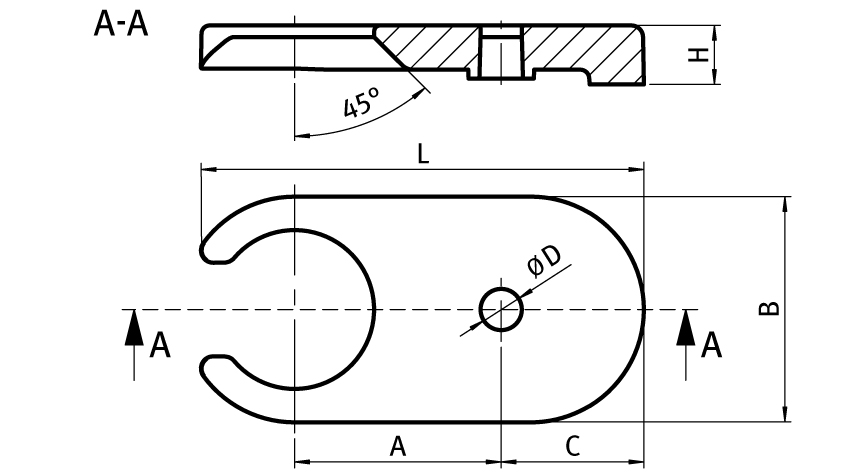

Part #	D (mm)	for Base	H (mm)	Profile	A (mm)	B (mm)	C (mm)	L (mm)	CAD
098BI060ZS	12.0	60	18.0	I	50.0	56.0	38.0	110.0
098BI080ZS	14.0	80	20.0	I	70.0	76.5	48.0	150.0

CAD Downloads

Classifications

ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 79070000900
Customs Tariff Number Export: 79070000

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering

Matching accessories

Trapezoid Base for Swivel Feet Ball Joint 15

Base: 60 Fmax (N): 24500 D (mm): 59 Version: without anti-slip plate H (mm): 18 F1 (mm): 29.5 F2 (mm): 32.5 F3 (mm): 33.5

Color:BlackDelivery Countries:WorldwideDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc die-castSpecials:Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSurface:Powder coatedTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate see 098DG030 f., Compatible Floor Mounting see 098BI060ZS
