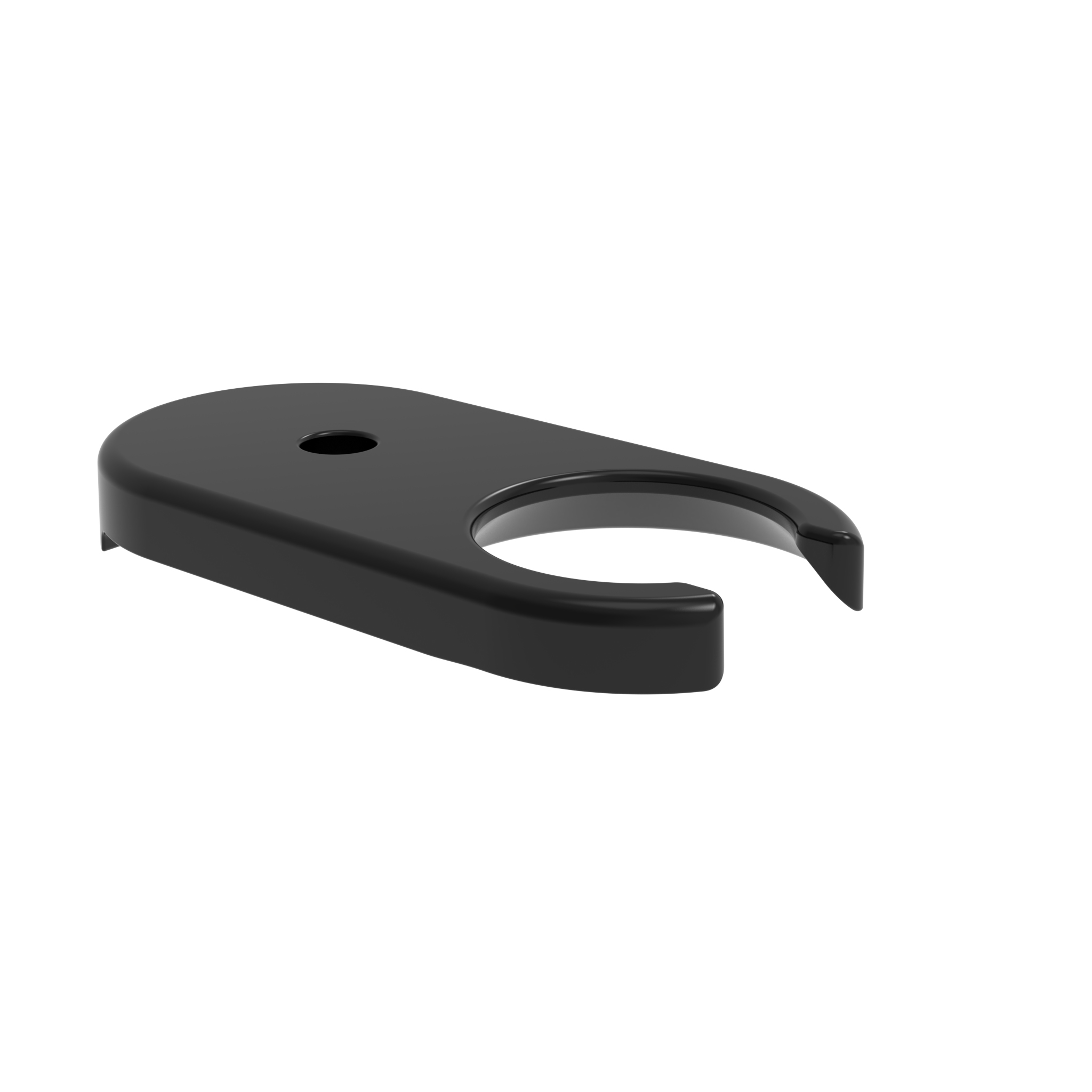

Floor Mounting for Base of Trapezoid Foot

Product information "Floor Mounting for Base of Trapezoid Foot"

Color:
Black

Delivery Countries:
Worldwide

Description:

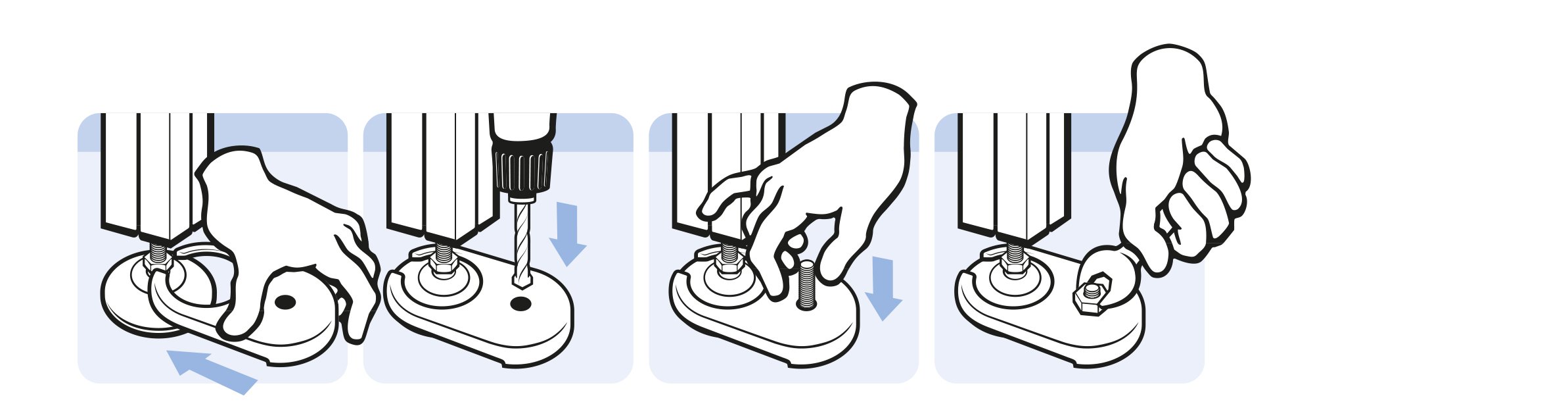

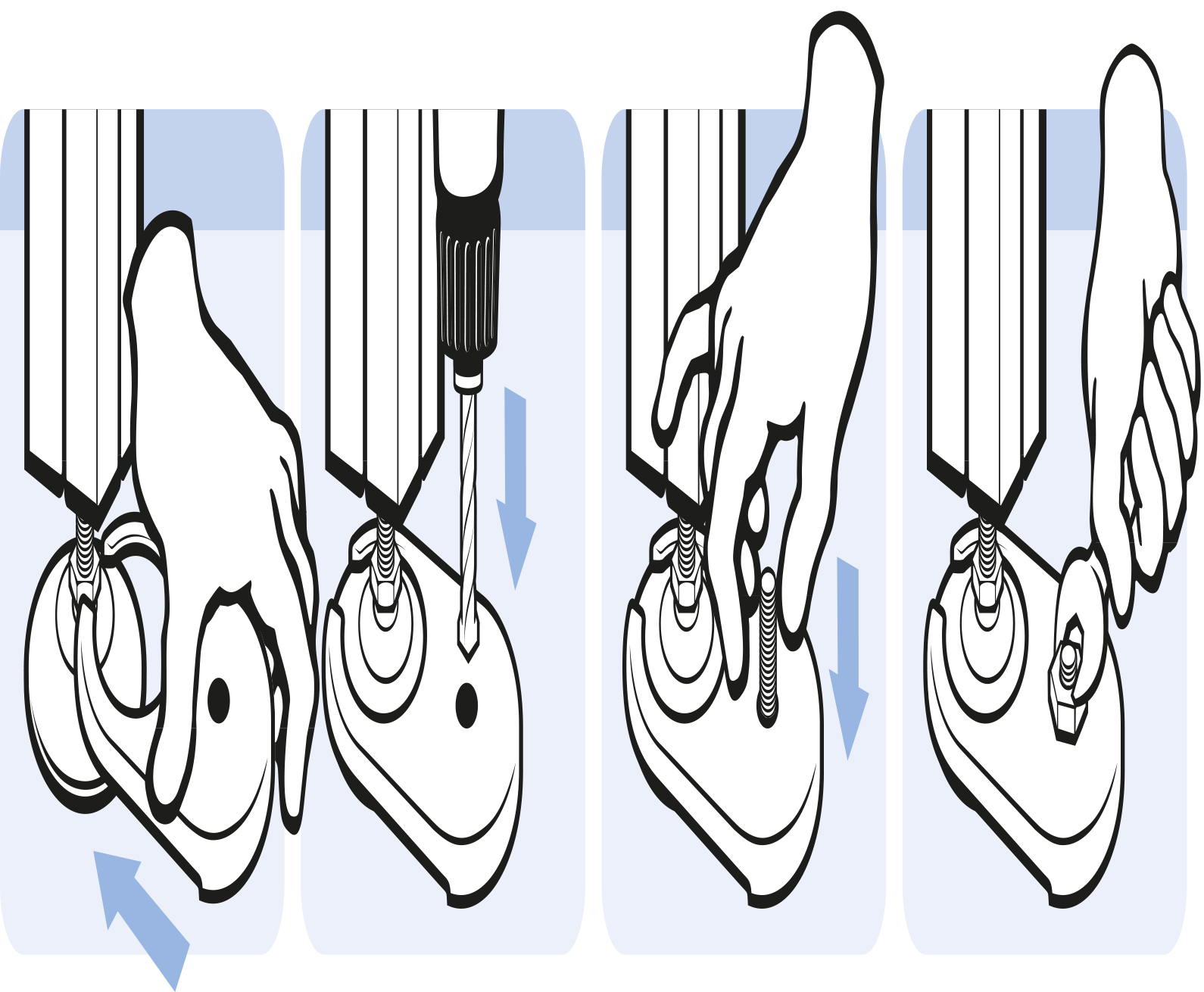

To securely fix the trapezoid leveling foot to the floor - can be mounted afterward

Material:
Zinc die-cast

Surface:
Powder coated

Tip:
Compatible Trapezoid Base see 098DI060ZS and 098AI060ZS

Pack Quantity:	1 piece
Model:	For trapezoid base
Weight (g):	502.4
ERP Number:	103735

Variants

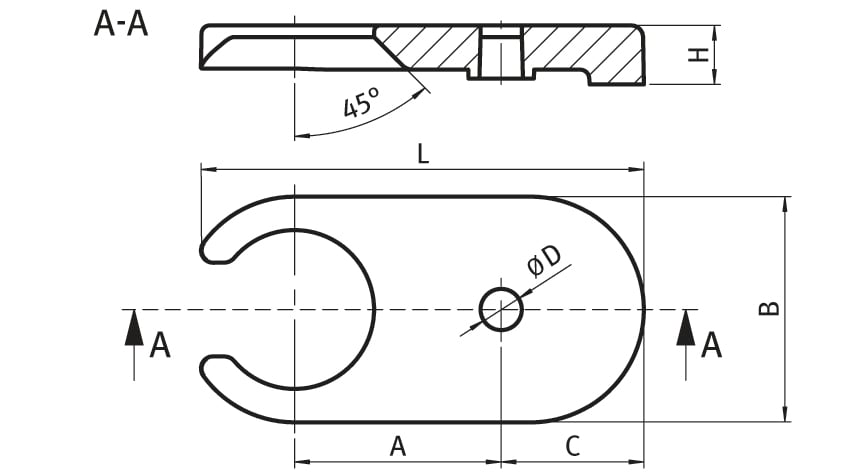

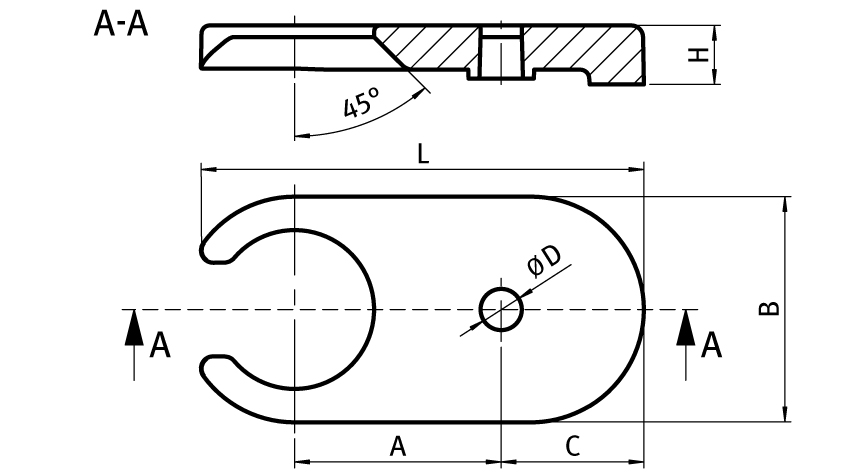

Part #	D (mm)	for Base	H (mm)	Profile	A (mm)	B (mm)	C (mm)	L (mm)	CAD
098BI060ZS	12.0	60	18.0	I	50.0	56.0	38.0	110.0
098BI080ZS	14.0	80	20.0	I	70.0	76.5	48.0	150.0

CAD Downloads

Classifications

ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 79070000900
Customs Tariff Number Export: 79070000

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
