Trapezoid Base for Pivot Feet, Black

Product information "Trapezoid Base for Pivot Feet, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

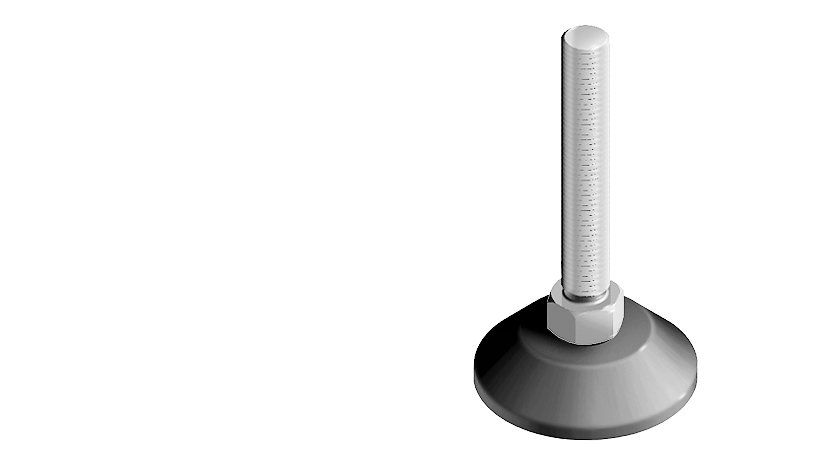

A leveling foot for strong positioning on slightly uneven floors

Material:
Zinc die-cast

Specials:
Other sizes, glued anti-slip plate on request;

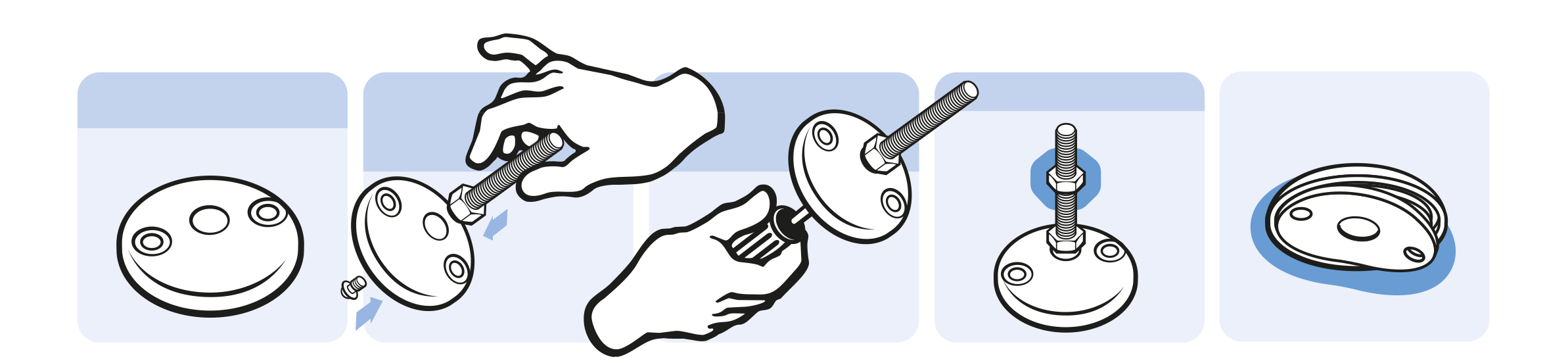

As factory assembled leveling foot on request

Surface:
Powder coated

Tip:
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG050
Customs Tariff Number Export: 79070000
Model: Zinc die-cast
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 115.6
Zolltarifnummer: 79070000900
pA Number: 108945

Variants

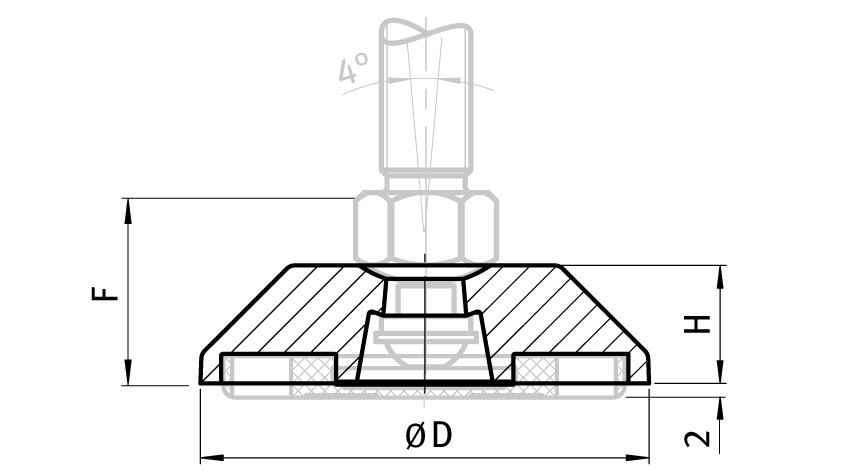

Product ID F (mm) Version Base Fmax (N) D (mm) H (mm)
098AI060ZS 31.0 without anti-slip plate 60 24500 59 18
098AI060ZSG 31.0 with anti-slip plate 60 24500 59 18
098AI080ZS 33.0 without anti-slip plate 80 29400 76 20
098AI080ZSG 33.0 with anti-slip plate 80 29400 76 20
