Base ZN BDH for Pivot Feet

Product information "Base ZN BDH for Pivot Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:

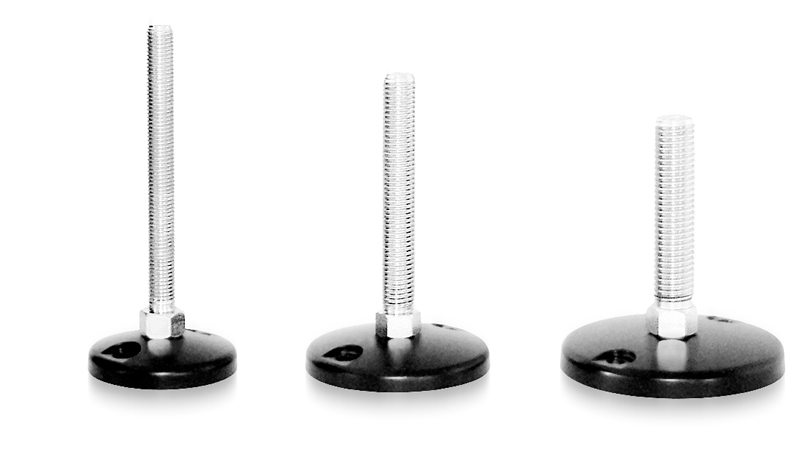

A leveling foot which can be fixed to the floor

Material:
Zinc die-cast

Specials:
Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Powder coated

Tip:
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG050
Customs Tariff Number Export: 79070000
Model: Zinc die-cast, with bolt-down holes
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 157.0
Zolltarifnummer: 79070000900
pA Number: 103383

Variants

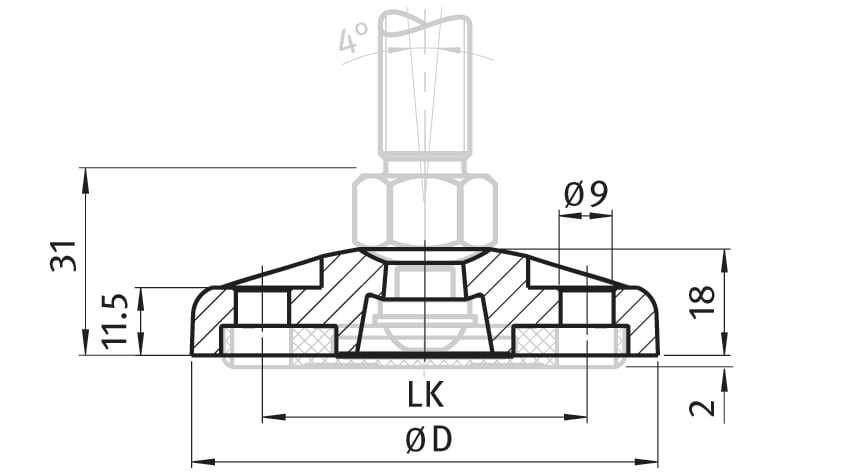

Product ID Version Base LK (mm) Fmax (N) D (mm)
098A060ZBS without anti-slip plate 60 40 29400 59
098A060ZBSG with anti-slip plate 60 40 29400 59
098A080ZBS without anti-slip plate 80 55 34300 79
098A080ZBSG with anti-slip plate 80 55 34300 79
098A100ZBS without anti-slip plate 100 74 34300 99
098A100ZBSG with anti-slip plate 100 74 34300 99
098A120ZBS without anti-slip plate 120 94 34300 119
098A120ZBSG with anti-slip plate 120 94 34300 119
