Pivot Foot, SS / SS - BDH

Product information "Pivot Foot, SS / SS - BDH"

Delivery Countries:
Worldwide

Description:
A leveling foot which can be fixed to the floor

Material:
Base: Stainless steel
Threaded rod: Stainless steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request

Surface:
Base: Plain
Threaded rod: Plain

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.

Zolltarifnummer:
73269098900
Model: Stainless steel, with bolt-down holes
Pack Quantity: 1 piece
Screw Joint: Swiveling range ±4°
Weight (g): 1183.4

Variants

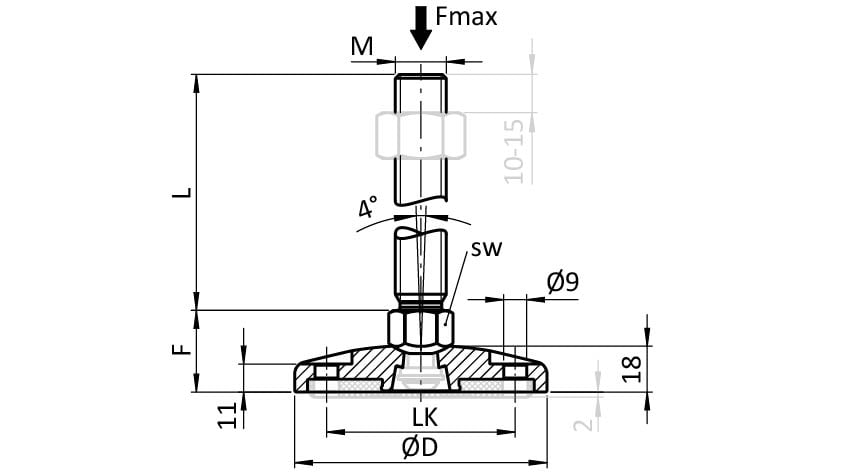

Product ID M x L (mm) Version F (mm) SW (mm) Fmax (N) LK (mm) D (mm) Base
9A100EB20150E M20 x 150 without anti-slip plate 31 22 23800 74 99 100
