Pivot Foot, PA / ST

Product information "Pivot Foot, PA / ST"

Color:
Base: Black

Delivery Countries:
Worldwide

Description:

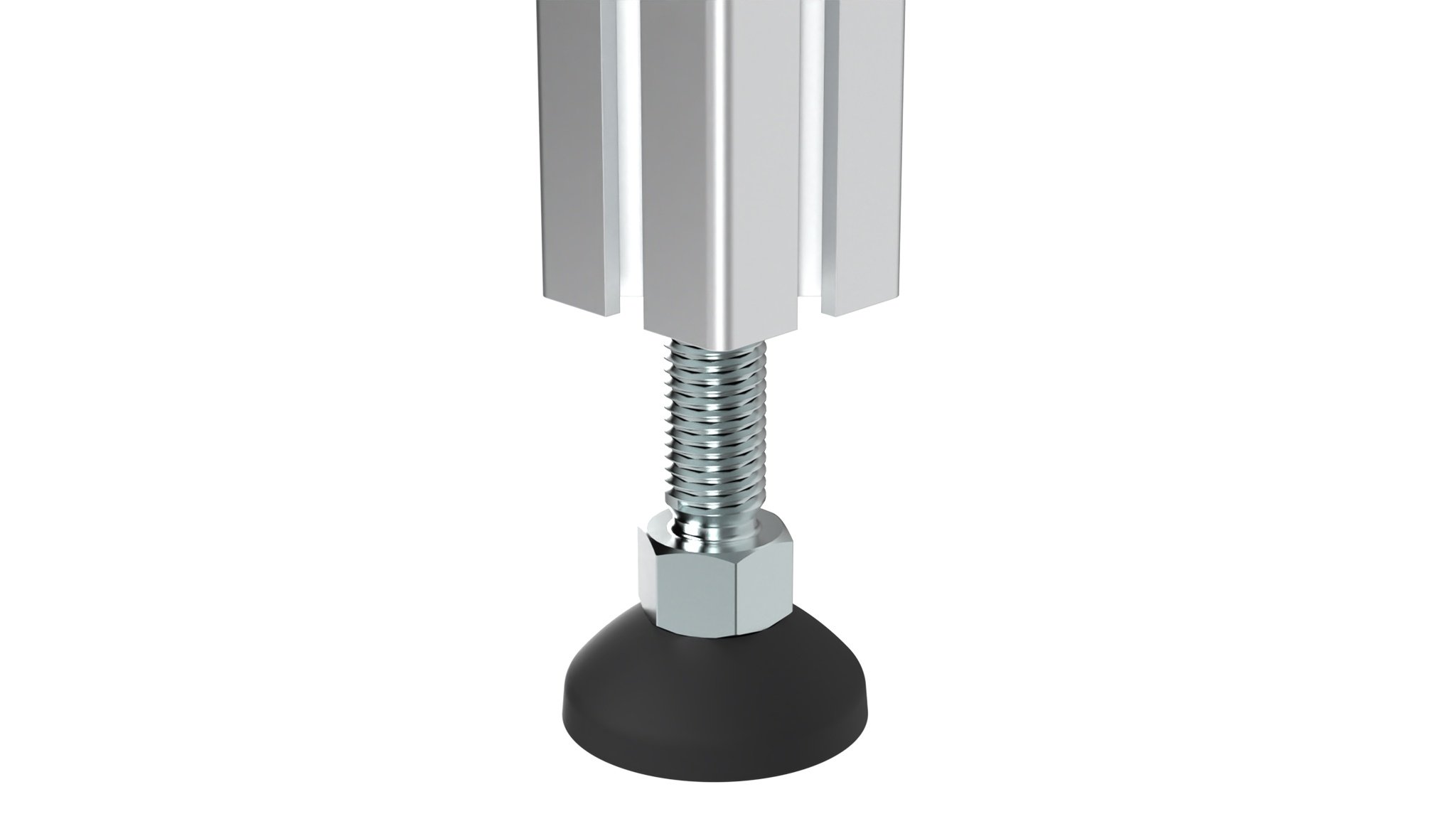

A leveling foot for strong positioning on slightly uneven floors

Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request

Surface:
Threaded rod: Zinc plated

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.

Zolltarifnummer:
73269098900
Model: Plastic PA / Steel, without bolt-down holes
Pack Quantity: 1 piece
Screw Joint: Swiveling range ±4°
Weight (g): 425.3

Variants

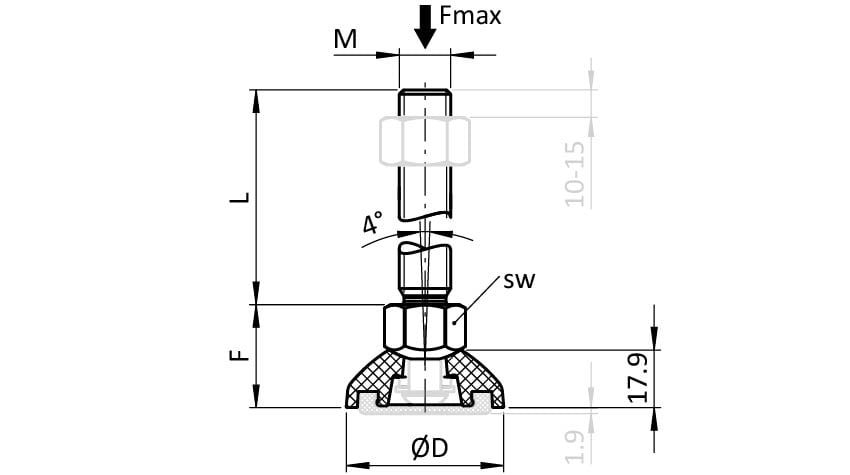

Product ID Fmax (N) Version F (mm) SW (mm) D (mm) M x L (mm) Base
9A050K16250M 11770 without anti-slip plate 31 22 49 M16 x 250 50
