Assembly Set for Pivot Feet

Product information "Assembly Set for Pivot Feet"

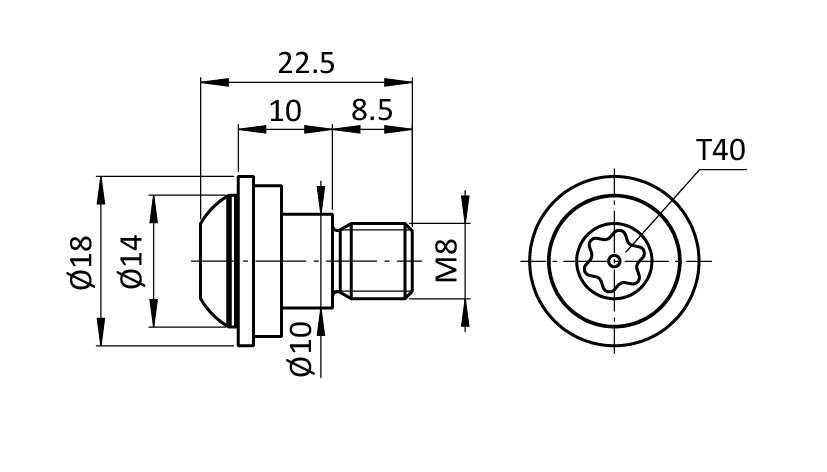

Assembly Set 1:
1 collar screw with shank - M8 x 18 - steel, zinc plated,
1 washer DIN 433 - 10.5 - steel, zinc plated,
1 bumper washer - rubber EPDM

Assembly Set 2:
1 collar screw with shank - M8 x 18 - stainless steel,
1 washer DIN 433 - 10.5 - stainless steel,
1 bumper washer - rubber EPDM

Delivery Countries:
Worldwide

Description:
To assemble pivot feet

Material:
Steel / stainless steel, rubber EPM

Surface:
Zinc plated / plain

Tip:

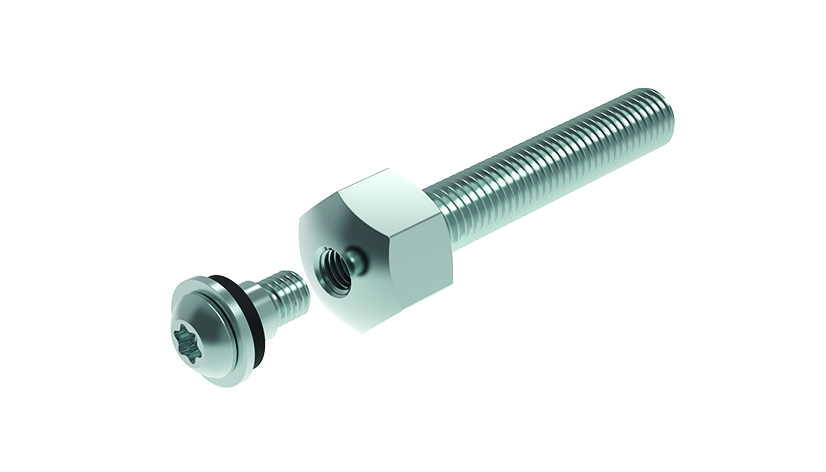

Compatible threaded rod ST metric for pivot feet see 098AM12066M,
Compatible threaded rod SS metric for pivot feet see 098AM12066E,
Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M,
Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
Customs Tariff Number Export: 73181595
Model: Stainless steel
Pack Quantity: 100 set
Weight (g): 14.8
pA Number: 105202

Variants

Product ID Material
098XAES03 Stainless steel
098XAMS03 Steel
