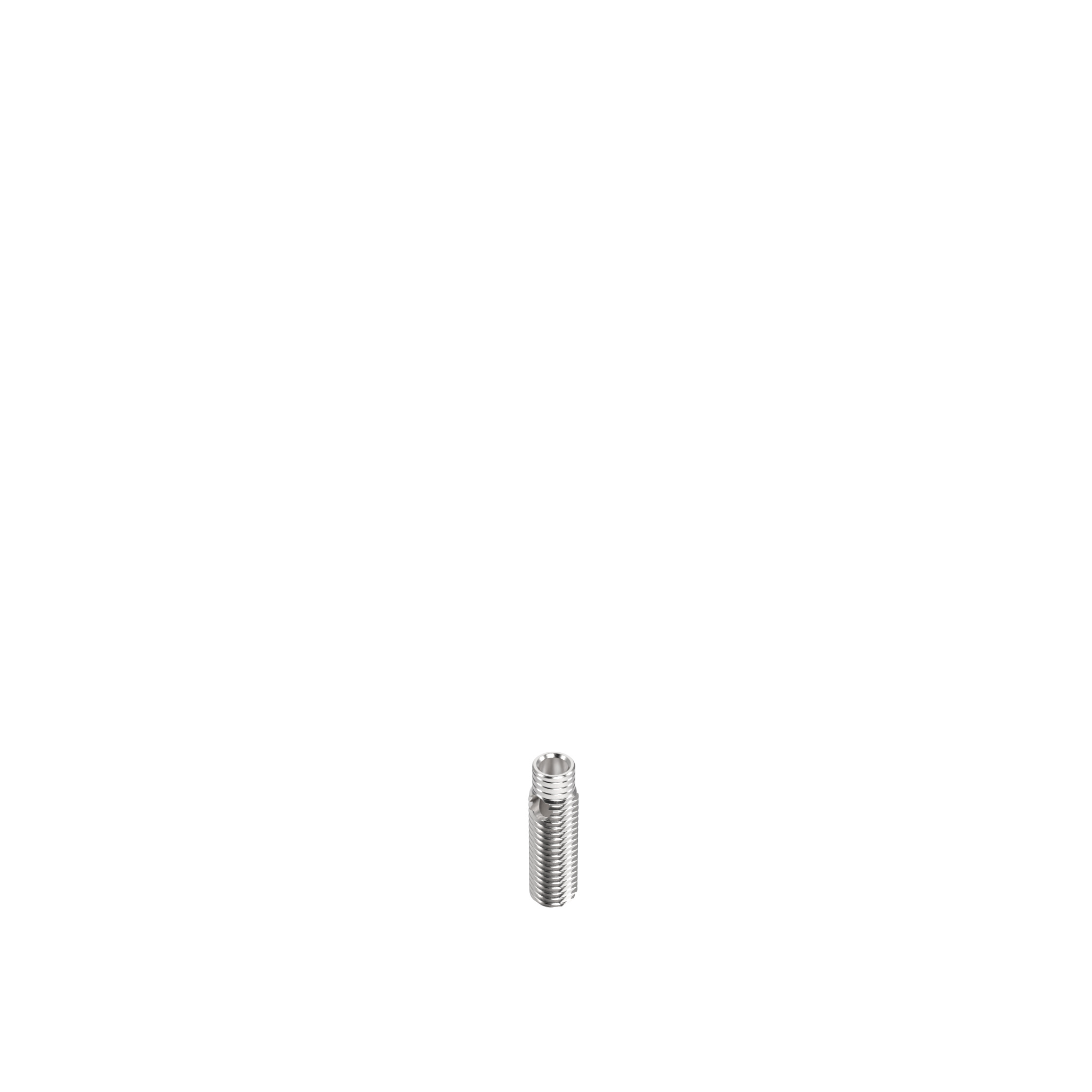

Automatic Connector Stainless Steel

Product information "Automatic Connector Stainless Steel"

Delivery Countries:
Worldwide

Description:

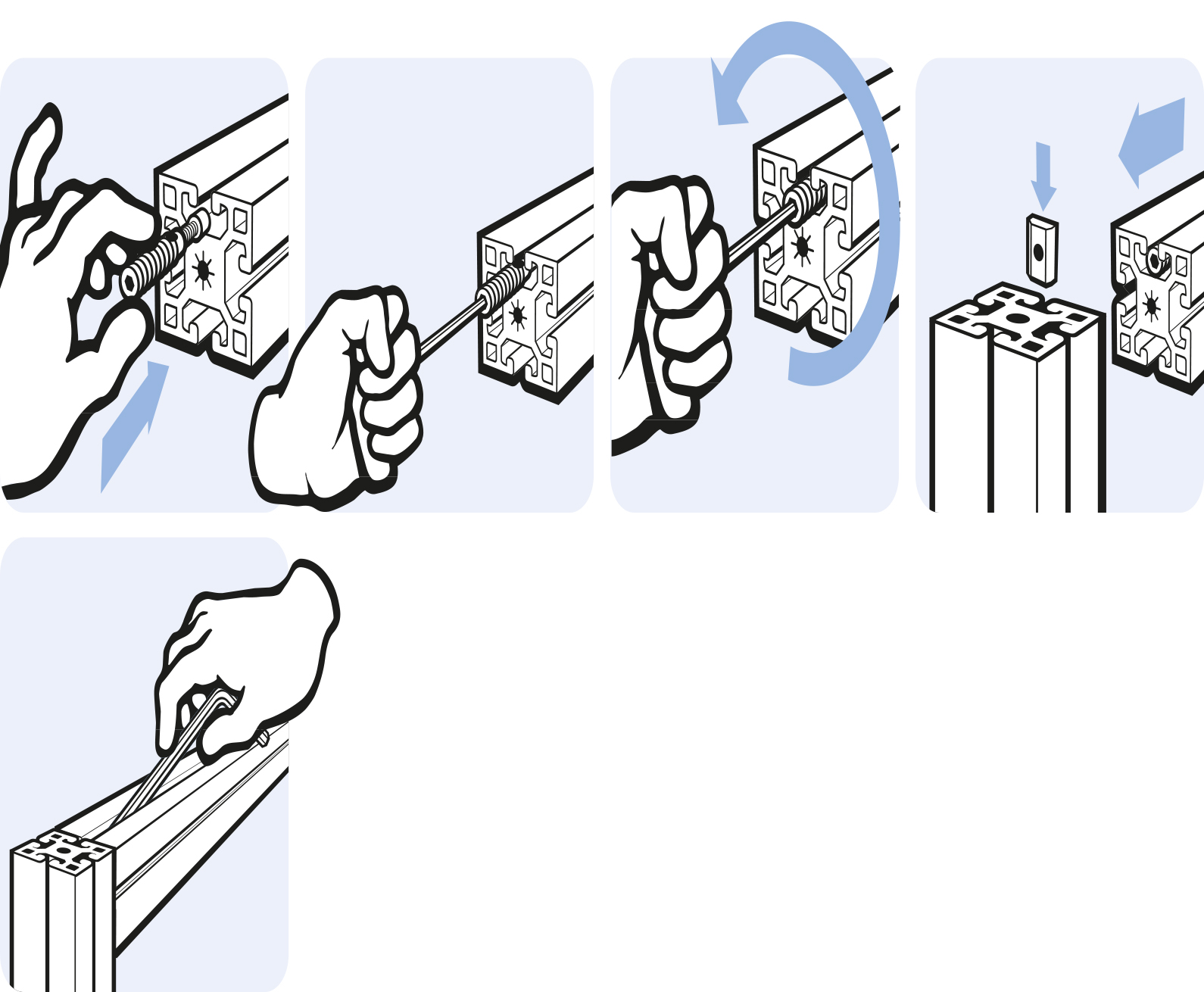

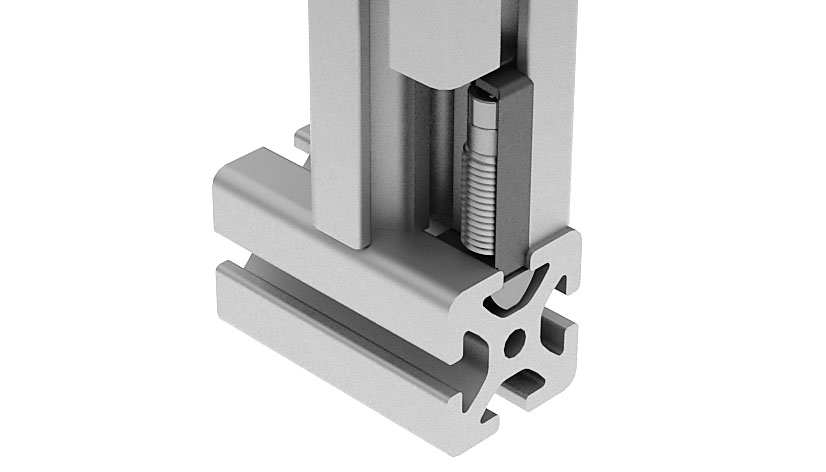

To connect two aluminum profiles fast and solid, assembly without machining; self-cutting thread

Material:
Stainless steel

Surface:
Plain

Tip:
*Compatible Cover Cap see 099GA081K

Model:	Stainless steel
Pack Quantity:	100 pieces
Customs Tariff Number Export:	73181900
Weight (g):	2.7
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	135472
Zolltarifnummer:	73181900900

Variants

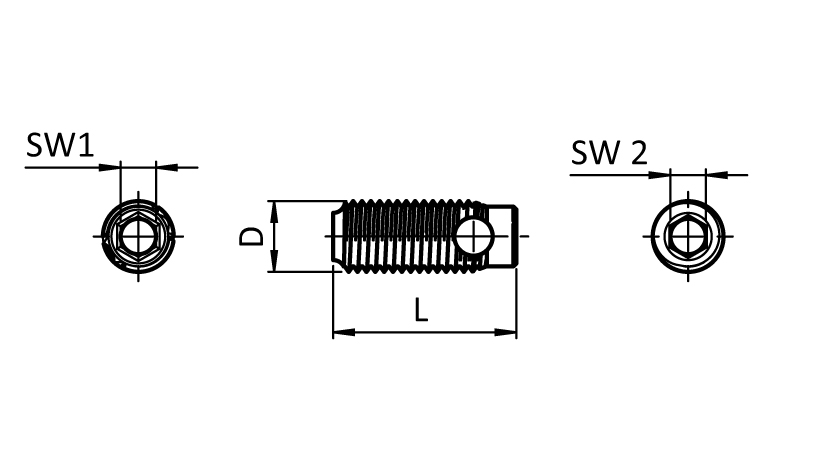

Part #	Version	D (mm)	L (mm)	Screw	Slot N (mm)	SW 1	SW 2	Profile	Profile Width
099G051E	With assembly set, incl. screw and T-slot nut	7.0	24.0	M4 x 30	5	3	4	I	20
099G061E	With assembly set, incl. screw and T-slot nut	10.0	27.0	M5 x 35	6	4	5	I	30
099G081E	With assembly set, incl. screw and T-slot nut	12.0	31.0	M6 x 40	8	5	6	I	40
099GS051E	-	7.0	24.0	-	5	-	4	I	20
099GS061E	-	10.0	27.0	-	6	-	5	I	30
099GS081E	-	12.0	31.0	-	8	-	6	I	40
