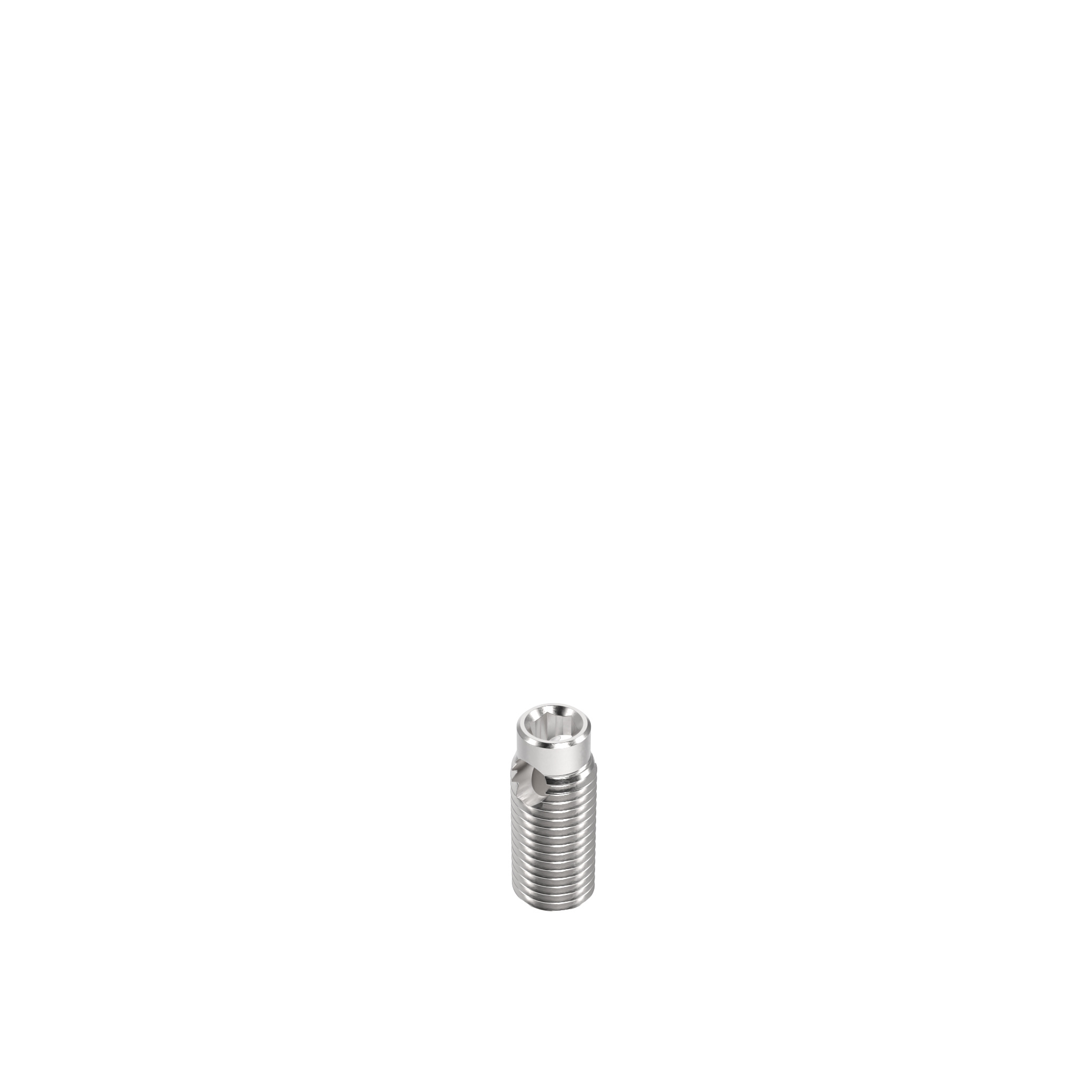

Automatic Connector Stainless Steel

Product information "Automatic Connector Stainless Steel"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles fast and solid, assembly without machining; self-cutting thread

Material:
Stainless steel

Surface:
Plain

Tip:
*Compatible Cover Cap see 099GA081K

Pack Quantity:	100 pieces
Model:	Stainless steel
Weight (g):	13.0
ERP Number:	132532

Global keywords / tags:

Profile Type	Profile Type I
Slot Size	Slot 8
Product Feature	Stainless

Variants

Part #	D (mm)	Version	Profile	L (mm)	Slot N (mm)	Profile Width	SW 1	SW 2	Tip	Screw
099G051E	7.0	With assembly set, incl. screw and T-slot nut	I	24.0	5	20	3	4	-	M4 x 30
099G061E	10.0	With assembly set, incl. screw and T-slot nut	I	27.0	6	30	4	5	-	M5 x 35
099G081E	12.0	With assembly set, incl. screw and T-slot nut	I	31.0	8	40	5	6	*	M6 x 40
099GS051E	7.0	Cutting sleeve	I	24.0	5	20	-	4	-	-
099GS061E	10.0	Cutting sleeve	I	27.0	6	30	-	5	-	-
099GS081E	12.0	Cutting sleeve	I	31.0	8	40	-	6	*	-

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73181900900
Customs Tariff Number Export: 73181900

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate
