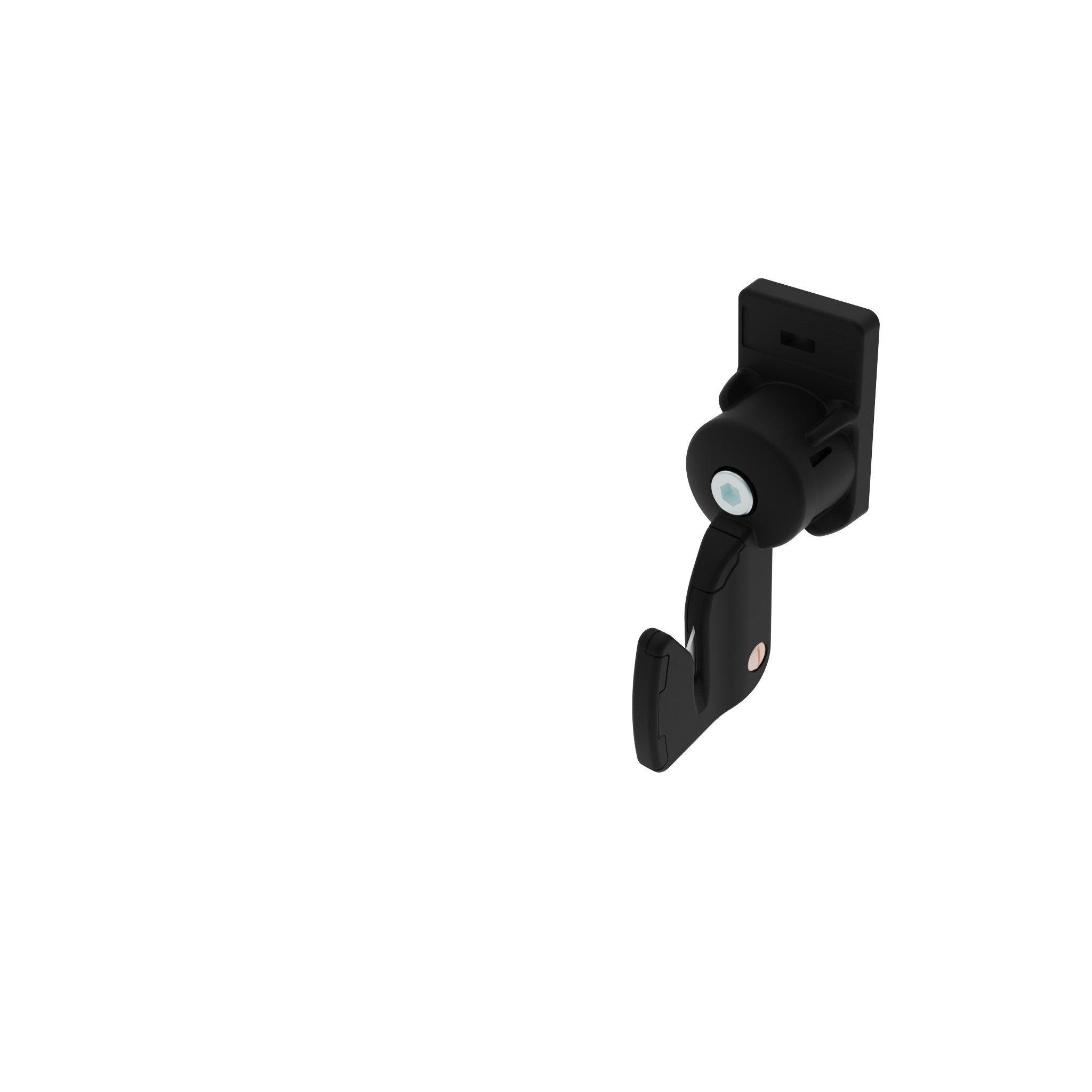

Bag Cutter FX for Square Holes 9 x 9 (8.7 x 8.7)

Product information "Bag Cutter FX for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Holder: Black
Bag cutter: Black

Delivery Countries:
Worldwide

Description:

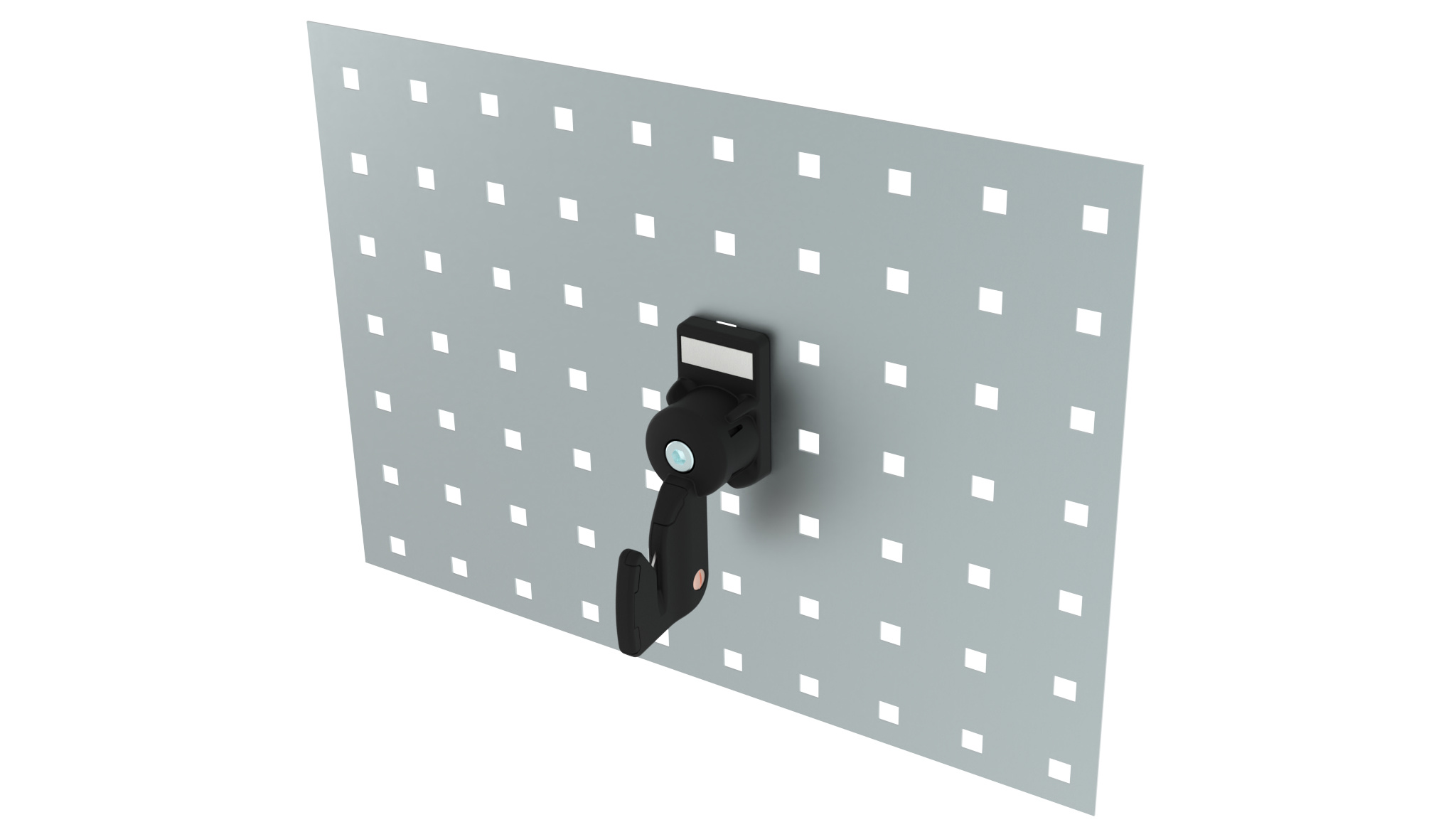

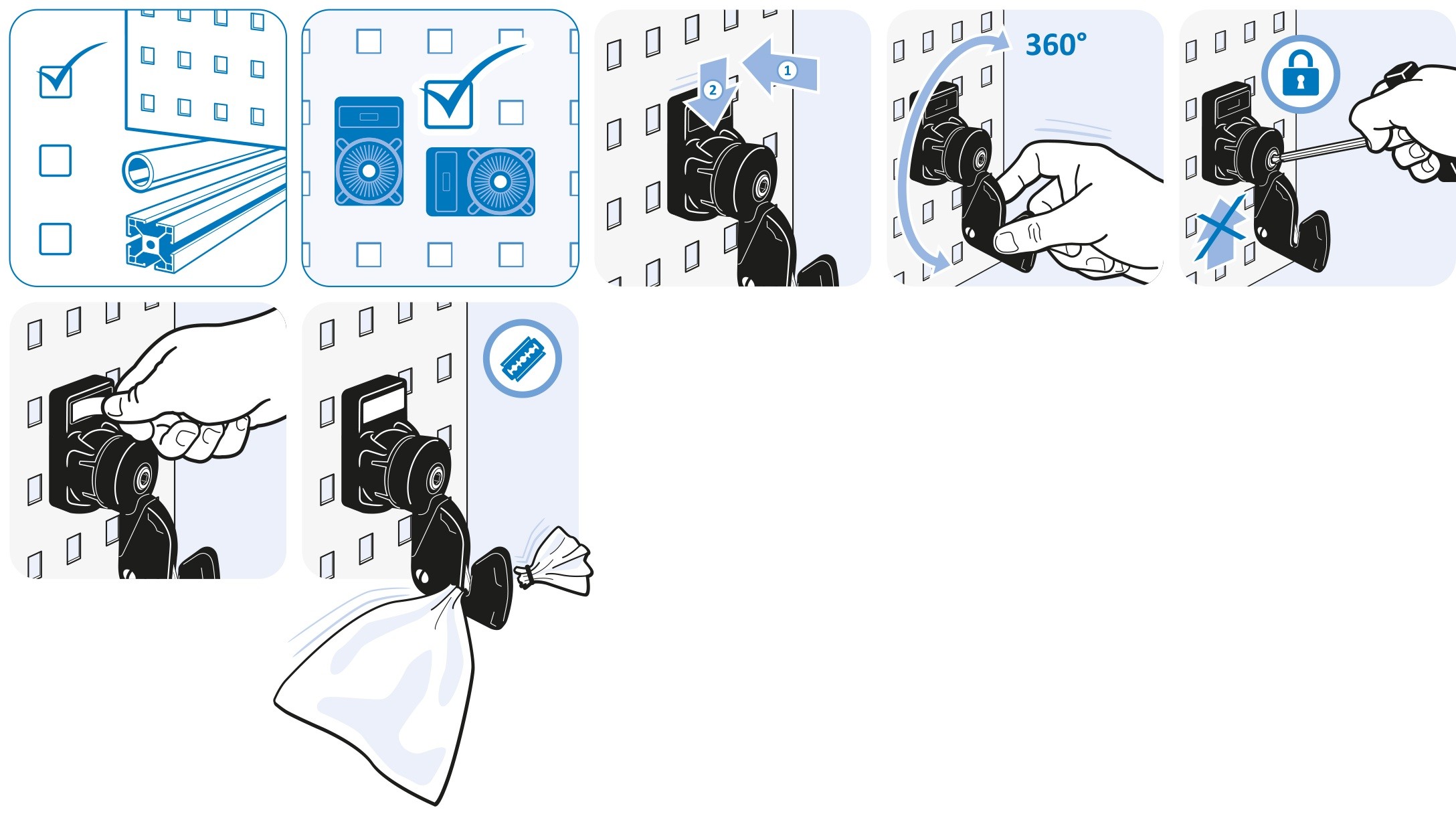

Ready to use bag cutter, changeable blade, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels

Material:
Holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced
Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon
Trapezoidal blade: Carbon steel
Spring: Spring steel SS313
Countersunk screw: Brass
Sleeve nut: Brass
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6TM840NF91S01
For round tubes D28 / D30 see 6TM8D283F91ESDS01

Zolltarifnummer:
82149000000
Model: Pre-assembled
Pack Quantity: 1 piece
Weight (g): 89.6

Variants

Product ID ESD Color
6TP38F91ESDS01 ESD electrostatical discharging Black
