Base SS for Swivel Feet, Ball Joint 15

Product information "Base SS for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide

Description:

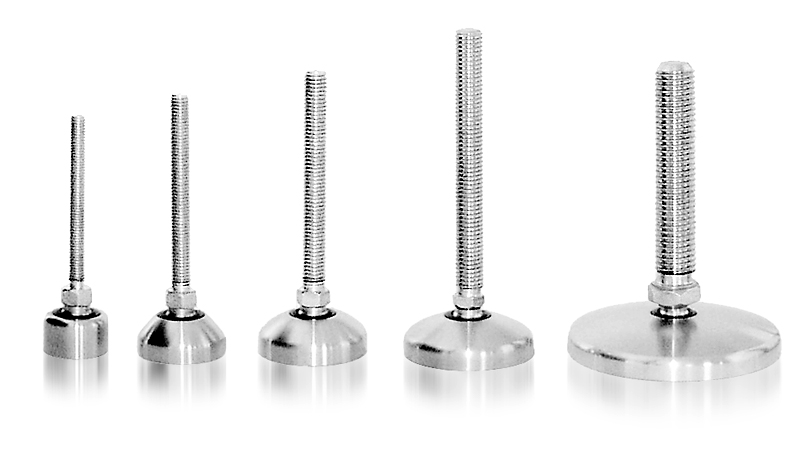

A swiveling leveling foot for strong positioning on uneven floors

Material:
Stainless steel SS303

Specials:
Other sizes, glued anti-slip plate on request;

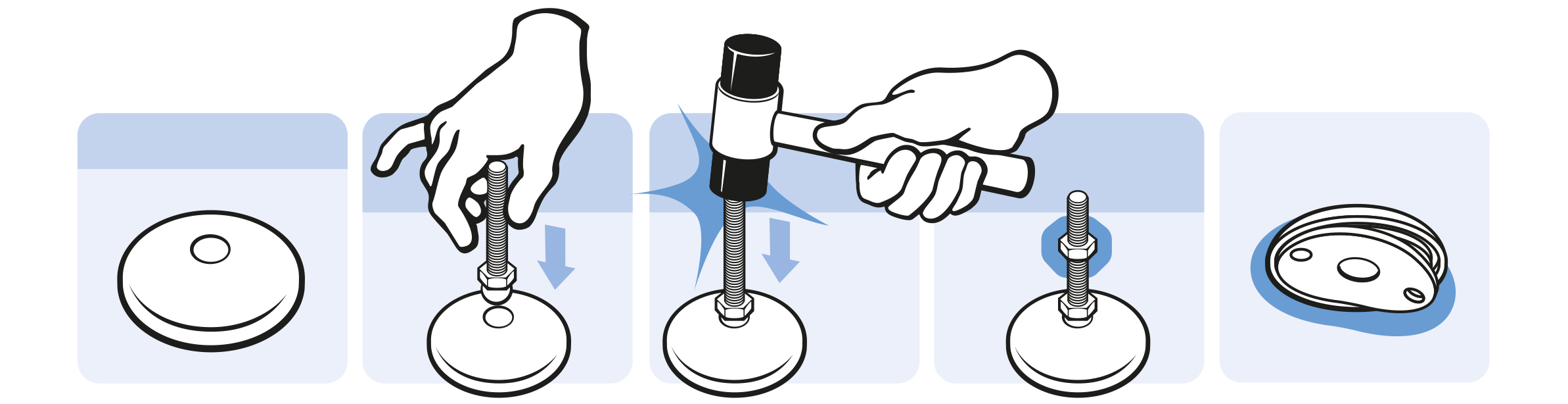

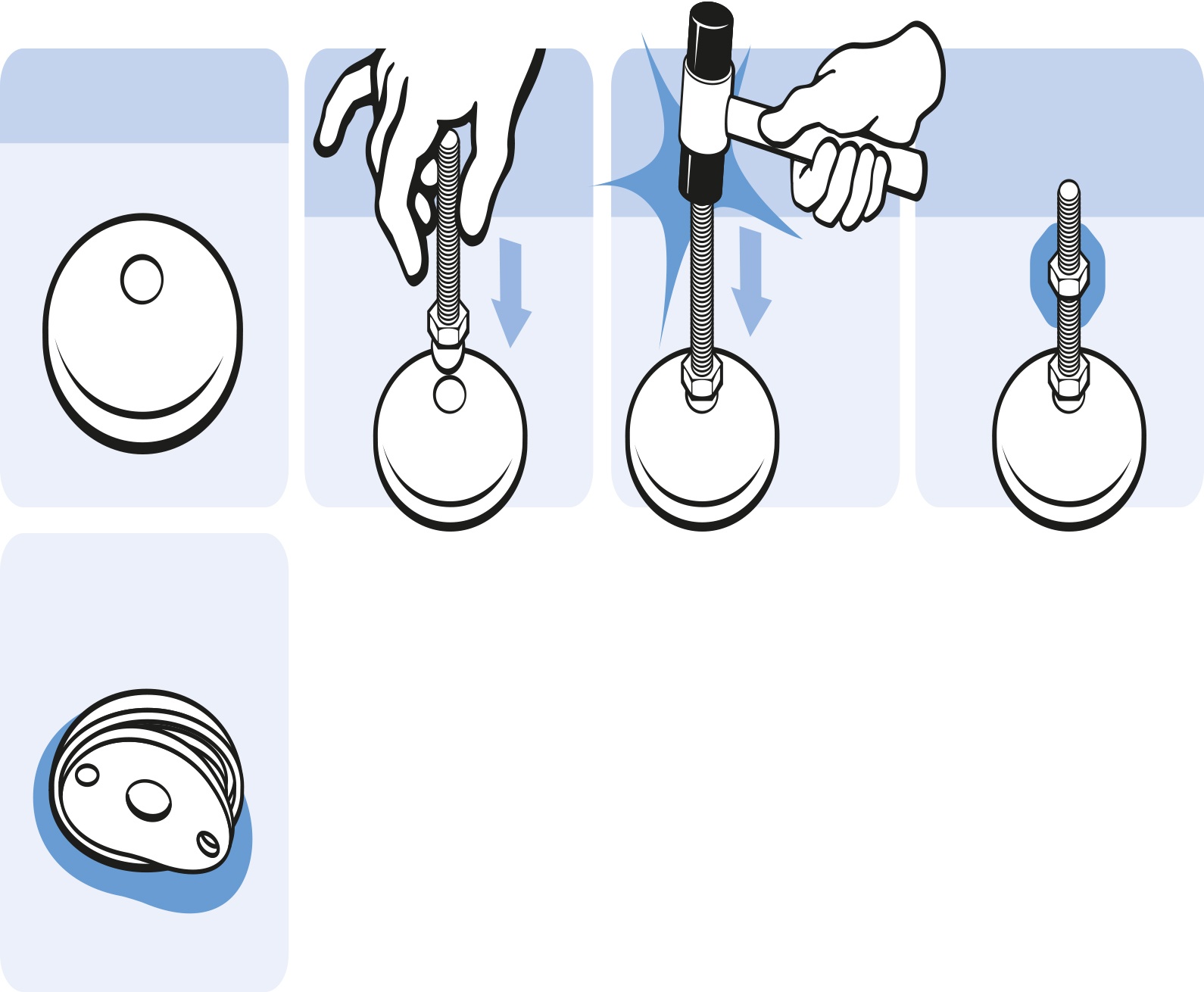

As factory assembled leveling foot on request

Surface:
Plain

Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030

Zolltarifnummer:
73269098900

Model:	Stainless steel, without bolt-down holes
Pack Quantity:	10 pieces
Pack Quantity (1):	10
Weight (g):	129.0

Variants

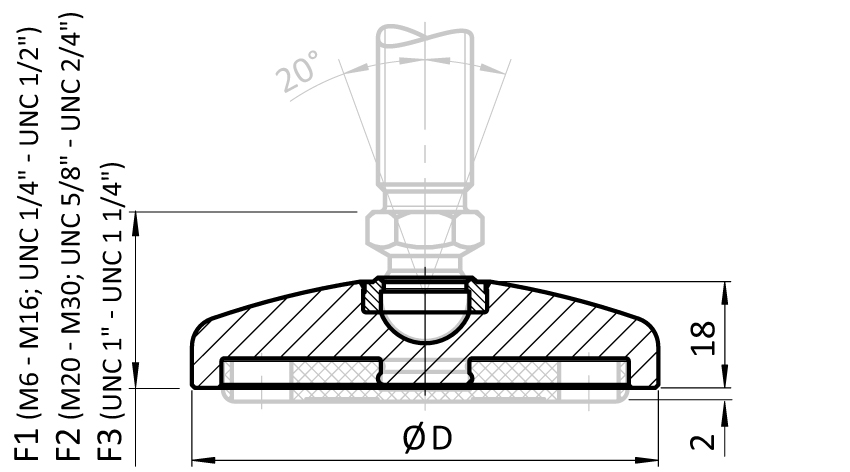

Product ID	F3 (mm)	F2 (mm)	F1 (mm)	Version	D (mm)	Base	Fmax (N)
098D030E	33.5	32.5	29.5	without anti-slip plate	29	30	19600
098D030EG	33.5	32.5	29.5	with anti-slip plate	29	30	19600
098D040E	33.5	32.5	29.5	without anti-slip plate	39	40	29400
098D040EG	33.5	32.5	29.5	with anti-slip plate	39	40	29400
098D045E	33.5	32.5	29.5	without anti-slip plate	44	45	29400
098D045EG	33.5	32.5	29.5	with anti-slip plate	44	45	29400
098D050E	33.5	32.5	29.5	without anti-slip plate	49	50	34300
098D050EG	33.5	32.5	29.5	with anti-slip plate	49	50	34300
098D060E	33.5	32.5	29.5	without anti-slip plate	59	60	34300
098D060EG	33.5	32.5	29.5	with anti-slip plate	59	60	34300
098D080E	33.5	32.5	29.5	without anti-slip plate	79	80	34300
098D080EG	33.5	32.5	29.5	with anti-slip plate	79	80	34300
098D100E	33.5	32.5	29.5	without anti-slip plate	99	100	39200
098D100EG	33.5	32.5	29.5	with anti-slip plate	99	100	39200
098D120E	33.5	32.5	29.5	without anti-slip plate	119	120	39200
098D120EG	33.5	32.5	29.5	with anti-slip plate	119	120	39200
