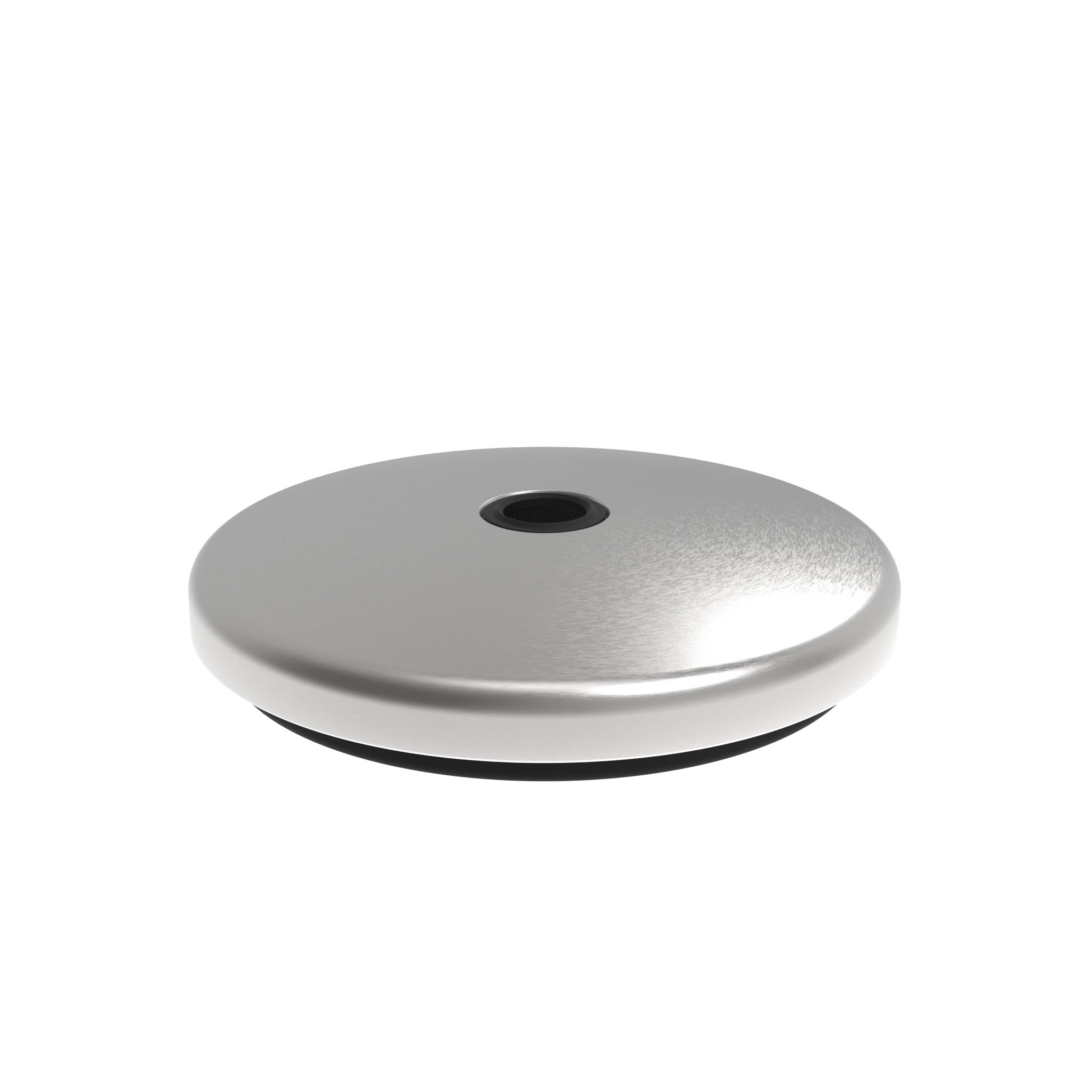

Base SS for Swivel Feet, Ball Joint 15

Product information "Base SS for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide

Description:
A swiveling leveling foot for strong positioning on uneven floors

Material:
Stainless steel SS303

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Plain

Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030

Model:	Stainless steel, without bolt-down holes
Pack Quantity:	10 pieces
Customs Tariff Number Export:	73269098
Weight (g):	904.0
ECLASS 6.0:	90900102
ECLASS 7.0:	90900102
ECLASS 8.0:	90900102
ECLASS 9.0:	90900102
ECLASS 10.0:	90900102
ECLASS 11.0:	90900102
ECLASS 12.0:	90900102
ECLASS 13.0:	90900102
ECLASS 14.0:	90900102
ECLASS 15.0:	90900102
ECLASS 16.0:	23010704
ERP Number:	104010
Zolltarifnummer:	73269098900

Variants

Part #	Version	Base	Fmax (N)	D (mm)	F1 (mm)	F2 (mm)	F3 (mm)
098D030E	without anti-slip plate	30	19600	29	29.5	32.5	33.5
098D030EG	with anti-slip plate	30	19600	29	29.5	32.5	33.5
098D040E	without anti-slip plate	40	29400	39	29.5	32.5	33.5
098D040EG	with anti-slip plate	40	29400	39	29.5	32.5	33.5
098D045E	without anti-slip plate	45	29400	44	29.5	32.5	33.5
098D045EG	with anti-slip plate	45	29400	44	29.5	32.5	33.5
098D050E	without anti-slip plate	50	34300	49	29.5	32.5	33.5
098D050EG	with anti-slip plate	50	34300	49	29.5	32.5	33.5
098D060E	without anti-slip plate	60	34300	59	29.5	32.5	33.5
098D060EG	with anti-slip plate	60	34300	59	29.5	32.5	33.5
098D080E	without anti-slip plate	80	34300	79	29.5	32.5	33.5
098D080EG	with anti-slip plate	80	34300	79	29.5	32.5	33.5
098D100E	without anti-slip plate	100	39200	99	29.5	32.5	33.5
098D100EG	with anti-slip plate	100	39200	99	29.5	32.5	33.5
098D120E	without anti-slip plate	120	39200	119	29.5	32.5	33.5
098D120EG	with anti-slip plate	120	39200	119	29.5	32.5	33.5
