Base ZN for ECO Feet

Product information "Base ZN for ECO Feet"

Color:
Black, -

Delivery Countries:
Worldwide

Description:

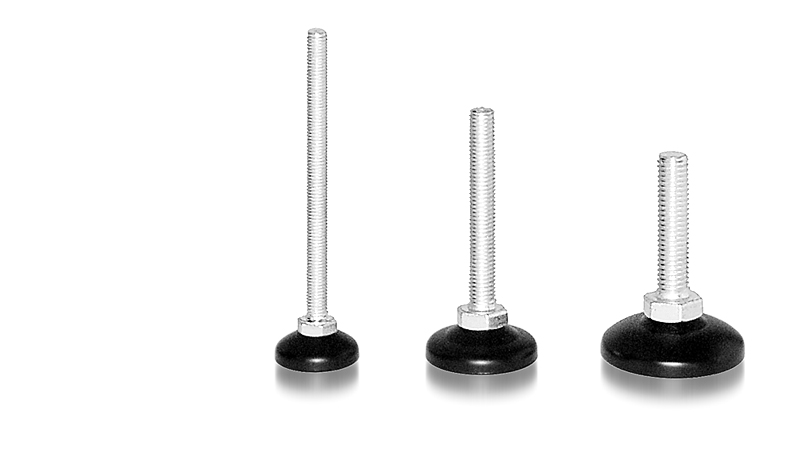

Economical leveling foot for strong positioning on slightly uneven floors

Material:
Zinc die-cast

Specials:
Other surfaces, other sizes, other colors, glued anti-slip plate on request

Surface:
Powder coated / zinc plated

Tip:
Compatible Threaded Rod see 098EM08025M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip-Plate see 098EG030;
(ECO feet are provided factory assembled)

Customs Tariff Number Export:	79070000
ERP Number:	104507
Model:	Zinc die-cast
Pack Quantity:	100 pieces
Pack Quantity (1):	1
Weight (g):	20.0
Zolltarifnummer:	79070000900

Variants

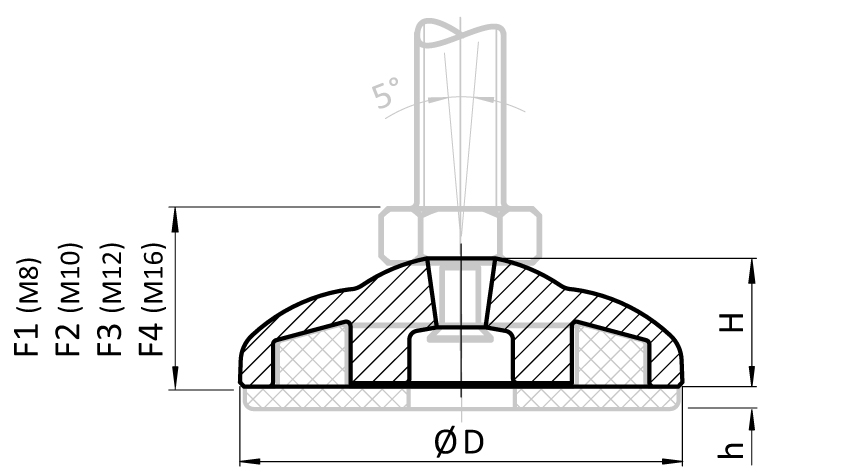

Part #	D (mm)	H (mm)	Color	F2 (mm)	Version	Fmax (N)	F1 (mm)	F4 (mm)	h (mm)	F3 (mm)	Base	Surface
098E030ZS	29	11.5	Black	16.5	without anti-slip plate	15690	16.0	20.0	2.0	17.5	30	Powder coated
098E030ZV	29	11.5		16.5	without anti-slip plate	15690	16.0	20.0	2.0	17.5	30	Zinc plated
098E030ZVG	29	11.5		16.5	with anti-slip plate	15690	16.0	20.0	2.0	17.5	30	Zinc plated
098E040ZS	39	12.0	Black	17.0	without anti-slip plate	17650	16.5	20.5	2.5	18.0	40	Powder coated
098E040ZV	39	12.0		17.0	without anti-slip plate	17650	16.5	20.5	2.5	18.0	40	Zinc plated
098E040ZVG	39	12.0		17.0	with anti-slip plate	17650	16.5	20.5	2.5	18.0	40	Zinc plated
098E050ZS	50	14.5	Black	19.5	without anti-slip plate	19600	19.0	23.0	3.0	20.5	50	Powder coated
098E050ZSG	50	14.5	Black	19.5	with anti-slip plate	19600	19.0	23.0	3.0	20.5	50
098E050ZV	50	14.5		19.5	without anti-slip plate	19600	19.0	23.0	3.0	20.5	50	Zinc plated
098E050ZVG	50	14.5		19.5	with anti-slip plate	19600	19.0	23.0	3.0	20.5	50	Zinc plated
