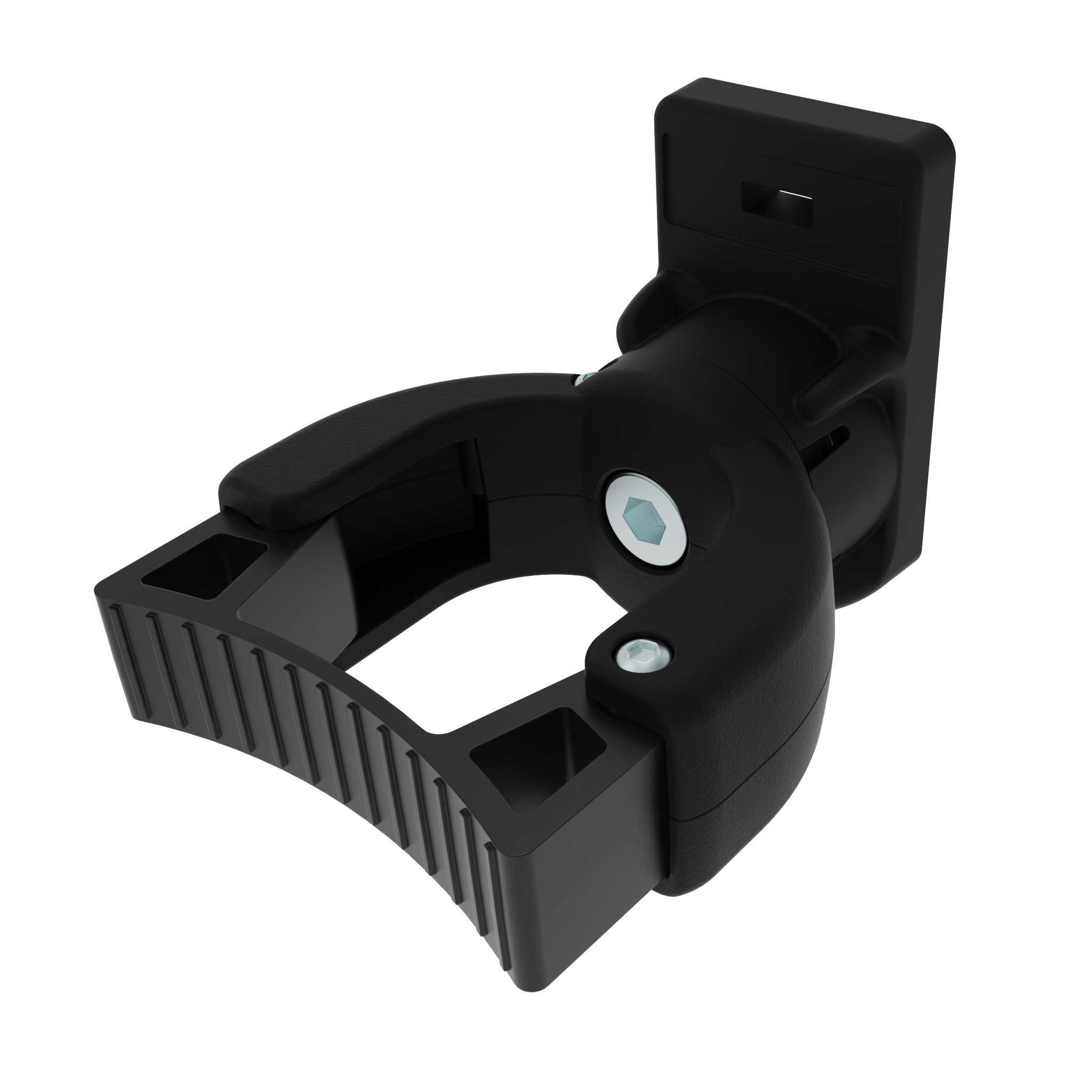

Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7)

New

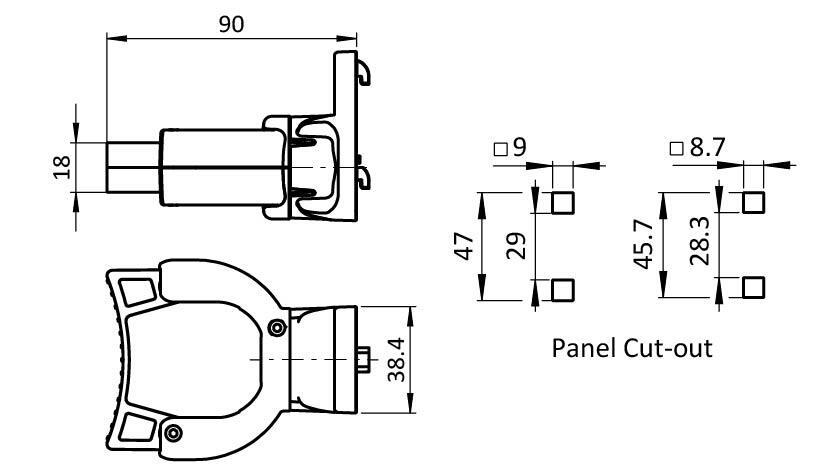

Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7) – technical drawing

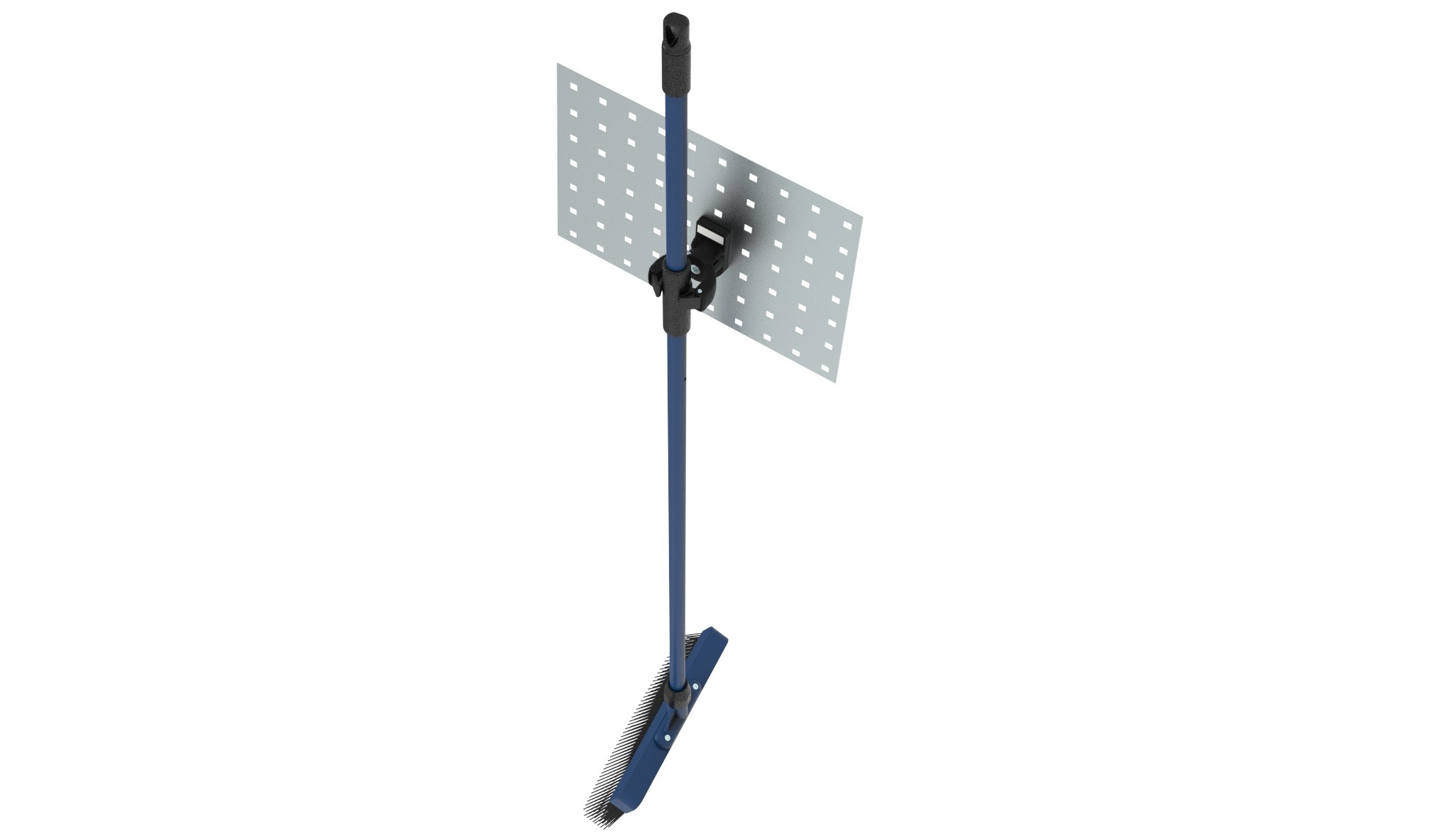

Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7) – application example

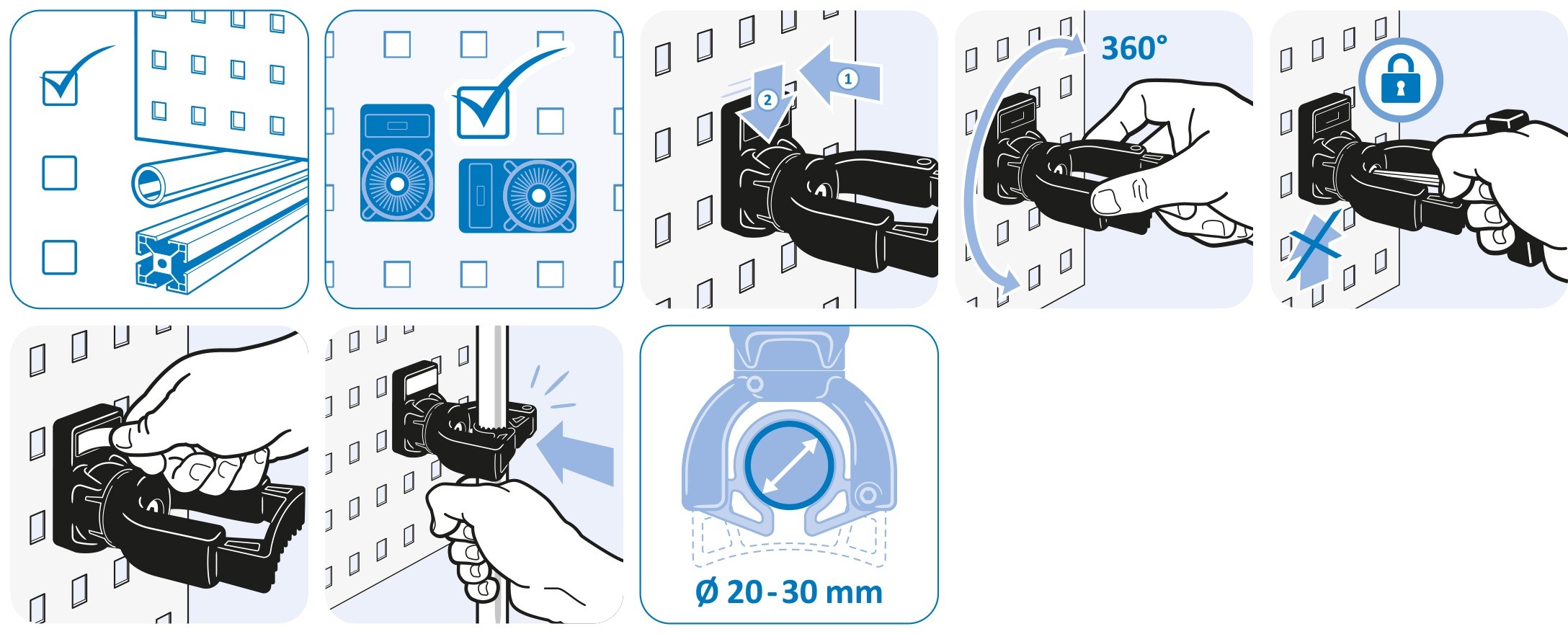

Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7) – assembly graphic

€0.00

Color

Black

Part #: 6TP38X2030S01

Pack Quantity: 1 piece

Product information "Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Holder: Black
Broom holder: Black
Retaining strap: Black

Delivery Countries:
Worldwide

Description:
Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels

Material:
Holder: Plastic PA, carbon fiber reinforced
Broom holder: Plastic PA, glass ball reinforced
Retaining strap FLEX: Plastic TPE
Bushings: Steel
Screws for retaining strap: Steel
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6TM840NX2030S01
For round tubes D28 / D30 see 6TM8D283X2030S01
