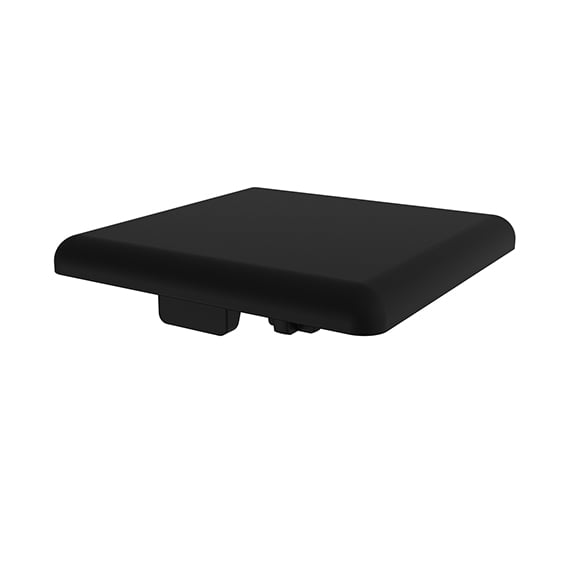

Cover Cap for 40 mm Modular Dimension
Part #:
091045
Product information "Cover Cap for 40 mm Modular Dimension"
Color:
Black, gray
Delivery Countries:
Worldwide
Description:

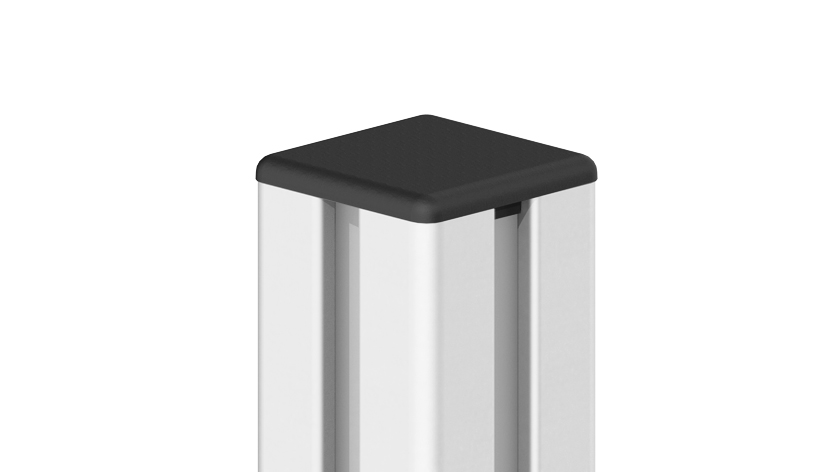

To cover the end of the profile
Material:
Plastic PA, glass fiber reinforced,
* glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Black, gray
Delivery Countries:
Worldwide
Description:
To cover the end of the profile
Material:
Plastic PA, glass fiber reinforced,
* glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
| (ECLASS 6.0): | 23369290 |
|---|---|
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360192 |
| (ECLASS 12.0): | 23360192 |
| (ECLASS 13.0): | 23360192 |
| Customs Tariff Number Export: | 39269097 |
| ERP Number: | 100046 |
| Model: | 40 mm modular dimension |
| Pack Quantity: | 10 / 50 / 100 pieces, 100 pieces |
| Pack Quantity: | 100 |
| Pack Quantity (Stück): | 100 |
| Weight (g): | 5.8 |
| Zolltarifnummer: | 39269097900 |
Variants

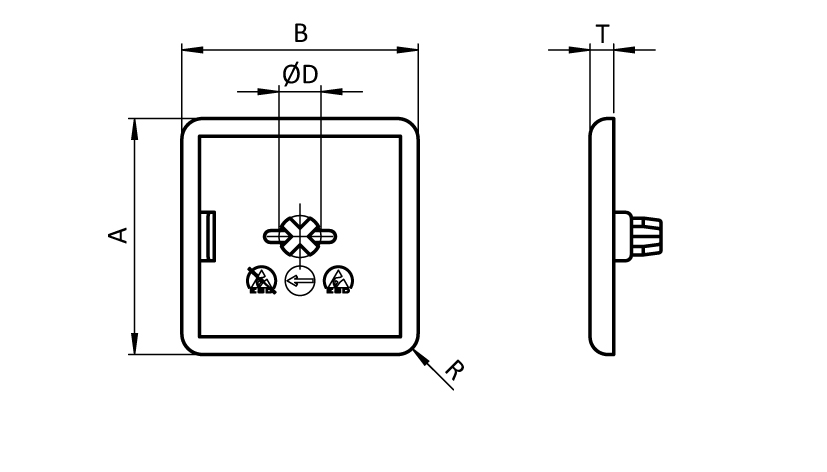

| Product ID | Color | Feature | T (mm) | R (mm) | ØD (mm) | Profile | Slot N (mm) | Dimensions A x B (mm) |
|---|---|---|---|---|---|---|---|---|
| 091003 | Black | 1 cross | 4.0 | 4.0 | 6.9 | 40 x 40 45° | ||
| 091007 | Black | 1 cross | 4.0 | 3.5 | 7.1 (6.8) | I | 8 | 40 x 40 |
| 091007S13 | Black | 1 cross * | 4.0 | 3.5 | 7.1 (6.8) | I | 8 | 40 x 40 |
| 091007S17 | Gray ≈ RAL 7042 | 1 cross | 4.0 | 3.5 | 7.1 (6.8) | I | 8 | 40 x 40 |
| 091008 | Black | 1 cross | 4.0 | 3.5 | 12.4 | 40 x 40 | ||
| 091009 | Black | 2 crosses | 4.0 | 4.0 | 6.9 (6.8) | I | 8 | 40 x 80 |
| 091009S10 | Black | 2 crosses * | 4.0 | 4.0 | 6.9 (6.8) | I | 8 | 40 x 80 |
| 091009S14 | Gray ≈ RAL 7042 | 2 crosses | 4.0 | 4.0 | 6.9 (6.8) | I | 8 | 40 x 80 |
| 091010 | Black | 2 crosses | 4.0 | 3.0 | 12.3 | 40 x 80 | ||
| 091013 | Black | 2 crosses | 4.0 | 3.0 | 7.0(6.8) | I | 40 x 80 | |
| 091014 | Black | 1 cross | 4.0 | 3.5 | 7.0 | 40 x 40 | ||
| 091023 | Black | 4 crosses | 4.0 | 4.0 | 6.8 (6.8) | I | 8 | 80 x 80 |
| 091023S03 | Black | 4 crosses, ESD electrostatical discharging | 4.0 | 4.0 | 6.8 (6.8) | I | 8 | 80 x 80 |
| 091023S09 | Gray ≈ RAL 7042 | 4 crosses | 4.0 | 4.0 | 6.8 (6.8) | I | 8 | 80 x 80 |
| 091040 | Black | 1 cross turned 45° | 4.0 | 3.5 | 7.5 | 40 x 40 | ||
| 091041 | Black | 2 crosses turned 45° | 4.0 | 3.0 | 7.6 | 40 x 80 | ||

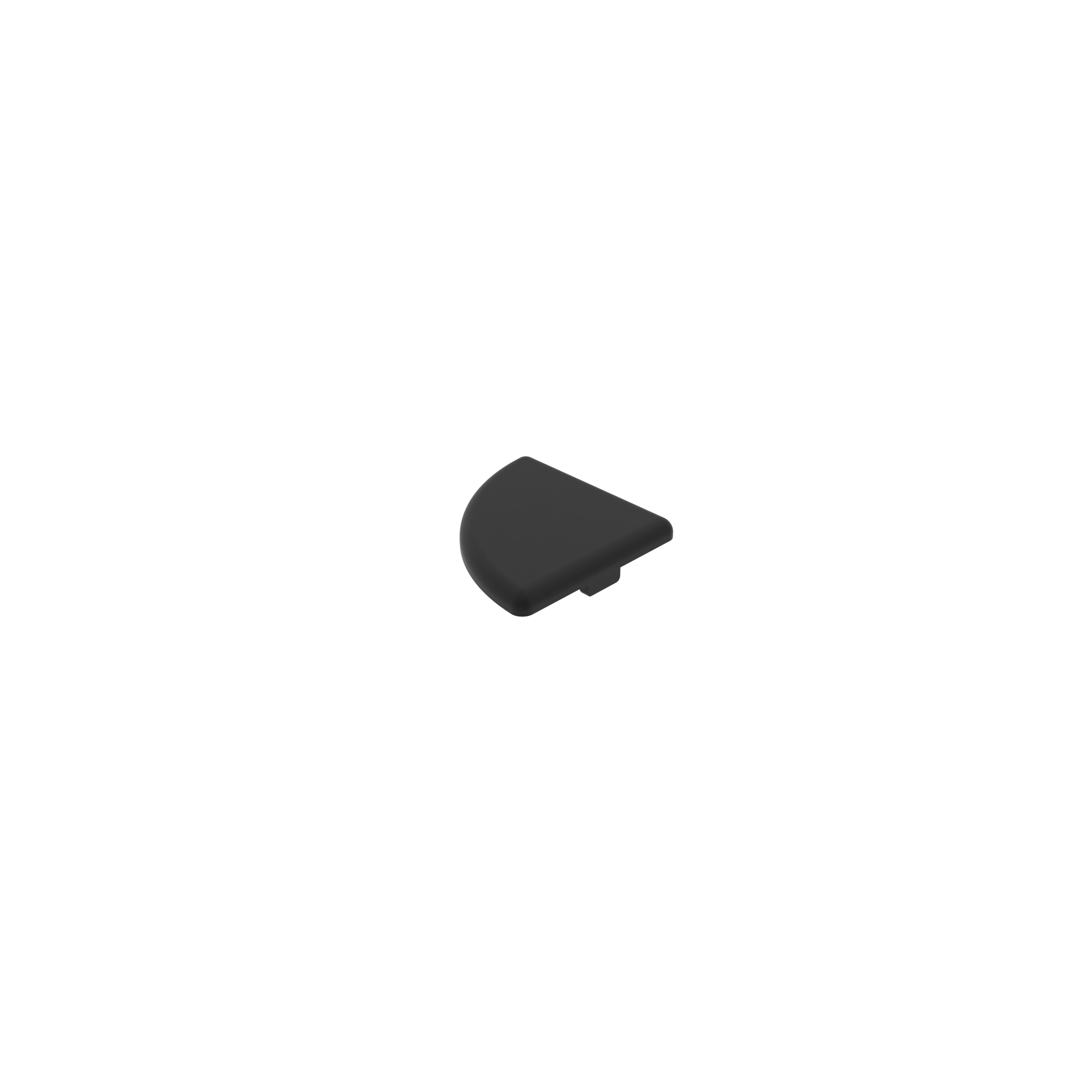

| 091045 | Black | 1 cross | 4.0 | 2.5 | 7.2 (6.8) | I | 8 | 40 x 40 R40 - 90° |
| 091045S01 | Gray ≈ RAL 7042 | 1 cross | 4.0 | 2.5 | 7.2 (6.8) | I | 8 | 40 x 40 R40 - 90° |
| 091046 | Black | 1 cross | 4.0 | 2.5 | 10.2 (10.0) | B | 10 | 40 x 40 |
| 091046S06 | Gray ≈ RAL 7004 | 1 cross | 4.0 | 2.5 | 10.2 (10.0) | B | 10 | 40 x 40 |
| 091048 | Black | 1 cross | 4.0 | 4.0 | 7.0 (6.8) | I | 8 | 40 x 40 45° |
| 091048S01 | Gray ≈ RAL 7042 | 1 cross | 4.0 | 4.0 | 7.0 (6.8) | I | 8 | 40 x 40 45° |
| 091077 | Black | 2 pins | 4.0 | 3.5 | 5.1 (5.0) | I | 8 | 16 x 40 |
| 091077S01 | Gray ≈ RAL 7042 | 2 pins | 4.0 | 3.5 | 5.1 (5.0) | I | 8 | 16 x 40 |
| 091078 | Black | 2 pins | 4.0 | 3.5 | 4.4 (4.3) | I | 8 | 16 x 80 |
| 091078S01 | Gray ≈ RAL 7042 | 2 pins | 4.0 | 3.5 | 4.4 (4.3) | I | 8 | 16 x 80 |
| 091092 | Black | 1 cross | 4.0 | 3.5 | 8.8 | 40 x 40 | ||
| 091094 | Black | 1 cross and 2 pins | 4.0 | 3.0 | 6.9 (6.8) | I | 8 | 40 x 120 |
| 091094S01 | Gray ≈ RAL 7042 | 1 cross and 2 pins | 4.0 | 3.0 | 6.9 (6.8) | I | 8 | 40 x 120 |
| 091094S02 | Black | 1 cross 2 pins, ESD electrostatical discharging | 4.0 | 3.0 | 6.95 | 40 x 120 | ||
| 091095 | Black | 4 crosses | 4.0 | 3.5 | 6.9 (6.8) | I | 8 | 80 x 120 |
| 091095S01 | Gray ≈ RAL 7042 | 4 crosses | 4.0 | 3.5 | 6.9 (6.8) | I | 8 | 80 x 120 |
| 091114 | Black | 2 pins | 4.0 | 4.0 | 7.1 | I | R40 x R80 30° | |
| 091114S01 | Gray ≈ RAL 7042 | 2 pins | 4.0 | 4.0 | 7.1 | I | 8 | R40 x R80 30° |
| 091115 | Black | 1 cross | 4.0 | 4.0 | 6.8 | I | R40 x R80 45° | |
| 091115S02 | Gray ≈ RAL 7042 | 1 cross | 4.0 | 4.0 | 6.8 | I | R40 x R80 45° | |
| 091116 | Black | 1 cross | 4.0 | 4.0 | 7.0 | I | R40 x R80 60° | |
| 091116S01 | Gray ≈ RAL 7042 | 1 cross | 4.0 | 4.0 | 7.0 | I | R40 x R80 60° | |
| 091117 | Black | 2 crosses | 4.0 | 4.0 | 6.8 | I | R40 x R80 90° | |
| 091117S01 | Gray ≈ RAL 7042 | 2 crosses | 4.0 | 4.0 | 6.8 | I | R40xR80 90° | |
| 091118 | Black | 8 pins | 4.0 | 4.0 | 6.8 (6.8) | I | 8 | 80 x 160 |
| 091118S01 | Gray ≈ RAL 7042 | 8 pins | 4.0 | 4.0 | 6.8 (6.8) | I | 8 | 80 x 160 |
| 091119 | Black | 1 cross turned 25° | 3.0 | 3.5 | 12.8 | 40 x 40 | ||
| 091124 | Black | 4 crosses | 4.0 | 2.5 | 4.5 | 40 x 40 | ||
| 091127 | Black | 2 crosses turned 30° | 4.0 | 3.0 | 12.8 | 40 x 80 | ||
| 091132 | Black | 2 crosses, 1 pin | 4.0 | 3.0 | 5.0 | 16 x 80 | ||
| 091133 | Black | 2 crosses, 2 pins | 4.0 | 3.0 | 4.9 | 16 x 120 | ||
| 091135 | Black | 4 crosses | 4.0 | 3.0 | 10.4 (10.0) | B | 10 | 80 x 80 |
| 091135S01 | Black | 4 crosses, ESD electrostatical discharging | 4.0 | 3.0 | 10.4 (10.0) | B | 10 | 80 x 80 |
| 091135S02 | Gray ≈ RAL 7004 | 4 crosses | 4.0 | 3.0 | 10.4 (10.0) | B | 10 | 80 x 80 |
| 091136 | Black | 4 crosses | 4.0 | 3.0 | 7.5 | 8 | 80 x 80 | |
| 091137 | Black | 2 crosses | 4.0 | 3.0 | 10.3 (10.0) | B | 10 | 40 x 80 |
| 091138 | Black | 1 cross | 4.0 | 2.5 | 10.3 | 40 x 40 | ||
| 091139 | Black | 1 cross | 4.0 | 2.5 | 7.5 | 40 x 40 | ||
| 091162 | Black | 1 pin for core hole | 4.0 | 1.5 | 14.2 | 40 x 40 | ||
| 091192 | Black | 1 cross | 4.0 | 3.5 | 10.1 | 40 x 40 | ||
| 091193 | Black | 2 crosses | 4.0 | 3.0 | 10.1 (10.0) | B | 10 | 40 x 80 |
| 091193S02 | Black | 2 crosses, ESD electrostatical discharging | 4.0 | 3.0 | 10.1 (10.0) | B | 10 | 40 x 80 |
| 091193S03 | Gray ≈ RAL 7004 | 2 crosses | 4.0 | 3.0 | 10.1 (10.0) | B | 10 | 40 x 80 |
| 091196 | Black | 1 cross | 4.0 | 3.5 | 11.3 | 40 x 40 | ||
| 091197 | Black | 2 crosses | 4.0 | 3.0 | 11.2 | 40 x 80 | ||
| 091200 | Black | 4 crosses | 4.0 | 4.0 | 11.3 | 80 x 80 | ||
| 091205 | Black | 8 support ribs 11.3 x 2.0 | 4.0 | 4.0 | 11.3 | 80 x160 | ||
| 091209 | Black | 2 crosses and 2 pins | 4.0 | 3.5 | 6.9 (6.8) | I | 8 | 40 x 160 |
| 091209S01 | Gray ≈ RAL 7042 | 2 crosses and 2 pins | 4.0 | 3.5 | 6.9 (6.8) | I | 8 | 40 x 160 |
| 091278 | Black | 6 pins | 4.0 | 3.5 | 4.3 (4.0) | I | 8 | 16 x 160 |
| 091320 | Black | New version, 1 cross | 4.0 | 4.0 | 6.8 (6.8) | I | 8 | 40 x 40 R40 - 90° |
| 091320S02 | Gray ≈ RAL 7042 | New version, 1 cross | 4.0 | 4.0 | 6.8 (6.8) | I | 8 | 40 x 40 R40 - 90° |
| 091345S01 | Black | ESD electrostatical discharging, 1 pin for core hole | 4.0 | 3.0 | 10.4 (10.0) | B | 10 | 40 x 40 R33.3 - 90° |
| 091345S02 | Gray ≈ RAL 7004 | 1 pin for core hole | 4.0 | 3.0 | 10.4 (10.0) | B | 10 | 40 x 40 R33.3 - 90° |
| 091387 | Black | 4 Pins for core hole, With hole Ø 10.3 | 4.0 | 4.0 | 6.0 | I | 8 | 40 x 40 |
| 091387S01 | Gray ≈ RAL 7042 | 4 Pins for core hole, With hole Ø 10.3 | 4.0 | 4.0 | 6.0 | I | 8 | 40 x 40 |
