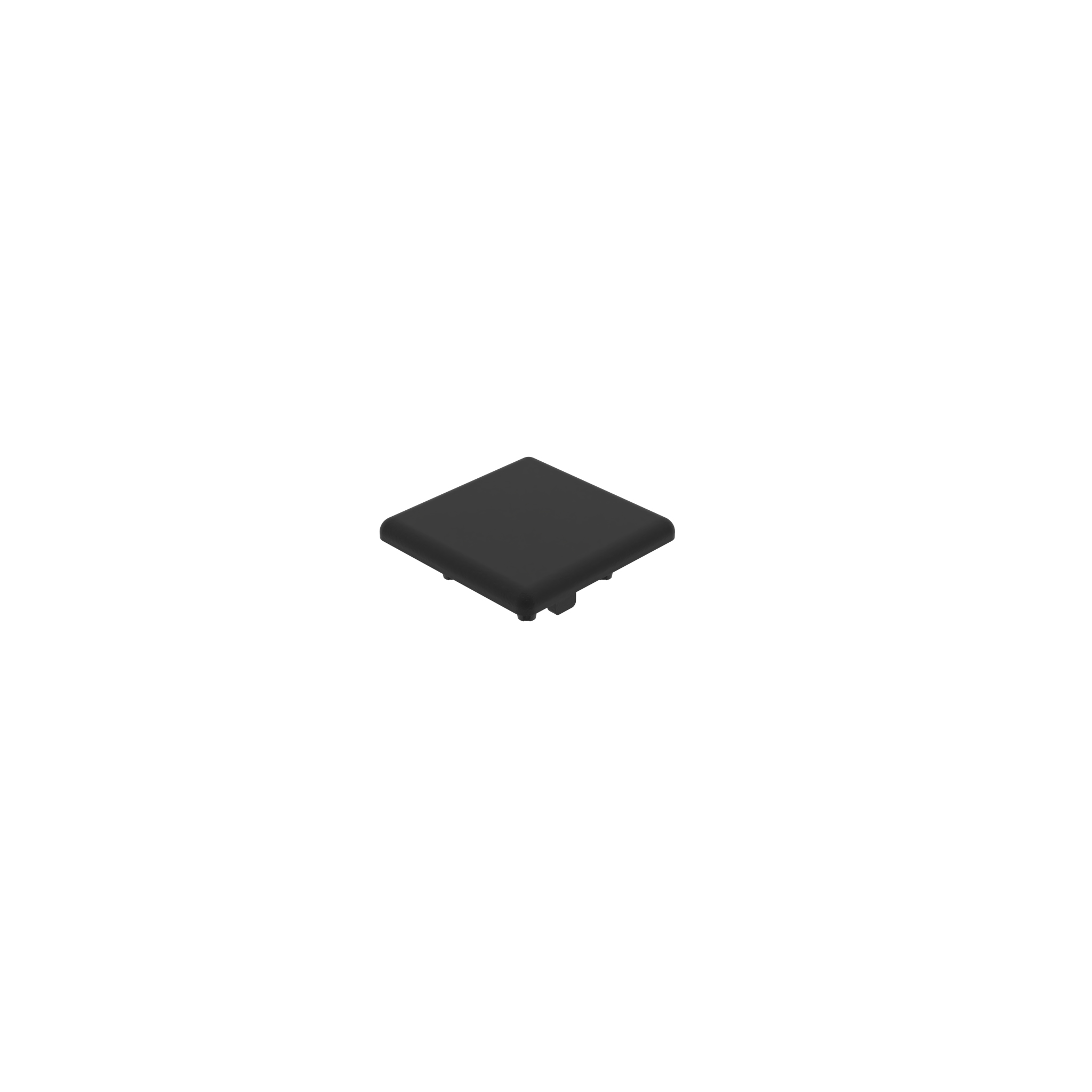

Cover Cap for 40 mm Modular Dimension
Regular price:
€0.00
Part #:
091124
Pack Quantity:
100 pieces
Product information "Cover Cap for 40 mm Modular Dimension"
Color:
Black, gray
Delivery Countries:
Worldwide
Description:
To cover the end of the profile
Material:
Plastic PA, glass fiber reinforced,
*glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Black, gray
Delivery Countries:
Worldwide
Description:
To cover the end of the profile
Material:
Plastic PA, glass fiber reinforced,
*glass ball reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
| Pack Quantity: | 100 pieces |
|---|---|
| Model: | 40 mm modular dimension |
| Weight (g): | 7.2 |
| ECLASS 6.0: | 23369290 |
| ECLASS 7.0: | 23369290 |
| ECLASS 8.0: | 23369290 |
| ECLASS 9.0: | 23369290 |
| ECLASS 10.0: | 23369290 |
| ECLASS 11.0: | 23360192 |
| ECLASS 12.0: | 23360192 |
| ECLASS 13.0: | 23360192 |
| Zolltarifnummer: | 39269097900 |
| Customs Tariff Number Export: | 39269097 |
| ERP Number: | 100106 |
Variants
| Part # | Profile | Feature | Fig. | Color | Slot N (mm) | ØD (mm) | R (mm) | T (mm) | Dimensions A x B (mm) | Pack Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 091003 | - | 1 cross | ② | Black | - | 6.9 | 4.0 | 4.0 | 40 x 40 45° | 100 pieces |
| 091007 | I | 1 cross | ① | Black | 8 | 7.1 (6.8) | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091007S13 | I | 1 cross* | ① | Black | 8 | 7.1 (6.8) | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091007S17 | I | 1 cross | ① | Gray ≈ RAL 7042 | 8 | 7.1 (6.8) | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091008 | - | 1 cross | ① | Black | - | 12.4 | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091009 | I | 2 crosses | ③ | Black | 8 | 6.9 (6.8) | 4.0 | 4.0 | 40 x 80 | 50 pieces |
| 091009S10 | I | 2 crosses* | ③ | Black | 8 | 6.9 (6.8) | 4.0 | 4.0 | 40 x 80 | 50 pieces |
| 091009S14 | I | 2 crosses | ③ | Gray ≈ RAL 7042 | 8 | 6.9 (6.8) | 4.0 | 4.0 | 40 x 80 | 50 pieces |
| 091010 | - | 2 crosses | ③ | Black | - | 12.3 | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091013 | I | 2 crosses | ③ | Black | - | 7.0(6.8) | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091014 | - | 1 cross | ① | Black | - | 7.0 | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091023 | I | 4 crosses | ① | Black | 8 | 6.8 (6.8) | 4.0 | 4.0 | 80 x 80 | 10 pieces |
| 091023S03 | I | 4 crosses, ESD electrostatical discharging | ① | Black | 8 | 6.8 (6.8) | 4.0 | 4.0 | 80 x 80 | 10 pieces |
| 091023S09 | I | 4 crosses | ① | Gray ≈ RAL 7042 | 8 | 6.8 (6.8) | 4.0 | 4.0 | 80 x 80 | 10 pieces |
| 091040 | - | 1 cross turned 45° | ① | Black | - | 7.5 | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091041 | - | 2 crosses turned 45° | ③ | Black | - | 7.6 | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091045 | I | 1 cross | ⑤ | Black | 8 | 7.2 (6.8) | 2.5 | 4.0 | 40 x 40 R40 - 90° | 100 pieces |
| 091045S01 | I | 1 cross | ⑤ | Gray ≈ RAL 7042 | 8 | 7.2 (6.8) | 2.5 | 4.0 | 40 x 40 R40 - 90° | 100 pieces |
| 091046 | B | 1 cross | ① | Black | 10 | 10.2 (10.0) | 2.5 | 4.0 | 40 x 40 | 100 pieces |
| 091046S06 | B | 1 cross | ① | Gray ≈ RAL 7004 | 10 | 10.2 (10.0) | 2.5 | 4.0 | 40 x 40 | 100 pieces |
| 091048 | I | 1 cross | ② | Black | 8 | 7.0 (6.8) | 4.0 | 4.0 | 40 x 40 45° | 100 pieces |
| 091048S01 | I | 1 cross | ② | Gray ≈ RAL 7042 | 8 | 7.0 (6.8) | 4.0 | 4.0 | 40 x 40 45° | 100 pieces |
| 091077 | I | 2 pins | ③ | Black | 8 | 5.1 (5.0) | 3.5 | 4.0 | 16 x 40 | 100 pieces |
| 091077S01 | I | 2 pins | ③ | Gray ≈ RAL 7042 | 8 | 5.1 (5.0) | 3.5 | 4.0 | 16 x 40 | 100 pieces |
| 091078 | I | 2 pins | ③ | Black | 8 | 4.4 (4.3) | 3.5 | 4.0 | 16 x 80 | 100 pieces |
| 091078S01 | I | 2 pins | ③ | Gray ≈ RAL 7042 | 8 | 4.4 (4.3) | 3.5 | 4.0 | 16 x 80 | 100 pieces |
| 091092 | - | 1 cross | ① | Black | - | 8.8 | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091094 | I | 1 cross and 2 pins | ③ | Black | 8 | 6.9 (6.8) | 3.0 | 4.0 | 40 x 120 | 10 pieces |
| 091094S01 | I | 1 cross and 2 pins | ③ | Gray ≈ RAL 7042 | 8 | 6.9 (6.8) | 3.0 | 4.0 | 40 x 120 | 10 pieces |
| 091094S02 | - | 1 cross 2 pins, ESD electrostatical discharging | ③ | Black | - | 6.95 | 3.0 | 4.0 | 40 x 120 | 10 pieces |
| 091095 | I | 4 crosses | ③ | Black | 8 | 6.9 (6.8) | 3.5 | 4.0 | 80 x 120 | 10 pieces |
| 091095S01 | I | 4 crosses | ③ | Gray ≈ RAL 7042 | 8 | 6.9 (6.8) | 3.5 | 4.0 | 80 x 120 | 10 pieces |
| 091114 | I | 2 pins | ④ | Black | - | 7.1 | 4.0 | 4.0 | R40 x R80 30° | 100 pieces |
| 091114S01 | I | 2 pins | ④ | Gray ≈ RAL 7042 | 8 | 7.1 | 4.0 | 4.0 | R40 x R80 30° | 100 pieces |
| 091115 | I | 1 cross | ④ | Black | - | 6.8 | 4.0 | 4.0 | R40 x R80 45° | 100 pieces |
| 091115S02 | I | 1 cross | ④ | Gray ≈ RAL 7042 | - | 6.8 | 4.0 | 4.0 | R40 x R80 45° | 100 pieces |
| 091116 | I | 1 cross | ④ | Black | - | 7.0 | 4.0 | 4.0 | R40 x R80 60° | 100 pieces |
| 091116S01 | I | 1 cross | ④ | Gray ≈ RAL 7042 | - | 7.0 | 4.0 | 4.0 | R40 x R80 60° | 100 pieces |
| 091117 | I | 2 crosses | ④ | Black | - | 6.8 | 4.0 | 4.0 | R40 x R80 90° | 50 pieces |
| 091117S01 | I | 2 crosses | ④ | Gray ≈ RAL 7042 | - | 6.8 | 4.0 | 4.0 | R40xR80 90° | 100 pieces |
| 091118 | I | 8 pins | ③ | Black | 8 | 6.8 (6.8) | 4.0 | 4.0 | 80 x 160 | 10 pieces |
| 091118S01 | I | 8 pins | ③ | Gray ≈ RAL 7042 | 8 | 6.8 (6.8) | 4.0 | 4.0 | 80 x 160 | 10 pieces |
| 091119 | - | 1 cross turned 25° | ① | Black | - | 12.8 | 3.5 | 3.0 | 40 x 40 | 100 pieces |
| 091124 | - | 4 crosses | ① | Black | - | 4.5 | 2.5 | 4.0 | 40 x 40 | 100 pieces |
| 091127 | - | 2 crosses turned 30° | ③ | Black | - | 12.8 | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091132 | - | 2 crosses, 1 pin | ③ | Black | - | 5.0 | 3.0 | 4.0 | 16 x 80 | 10 pieces |
| 091133 | - | 2 crosses, 2 pins | ③ | Black | - | 4.9 | 3.0 | 4.0 | 16 x 120 | 10 pieces |
| 091135 | B | 4 crosses | ① | Black | 10 | 10.4 (10.0) | 3.0 | 4.0 | 80 x 80 | 10 pieces |
| 091135S01 | B | 4 crosses, ESD electrostatical discharging | ① | Black | 10 | 10.4 (10.0) | 3.0 | 4.0 | 80 x 80 | 10 pieces |
| 091135S02 | B | 4 crosses | ① | Gray ≈ RAL 7004 | 10 | 10.4 (10.0) | 3.0 | 4.0 | 80 x 80 | 10 pieces |
| 091136 | - | 4 crosses | ① | Black | 8 | 7.5 | 3.0 | 4.0 | 80 x 80 | 10 pieces |
| 091137 | B | 2 crosses | ③ | Black | 10 | 10.3 (10.0) | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091138 | - | 1 cross | ① | Black | - | 10.3 | 2.5 | 4.0 | 40 x 40 | 100 pieces |
| 091139 | - | 1 cross | ① | Black | - | 7.5 | 2.5 | 4.0 | 40 x 40 | 100 pieces |
| 091162 | - | 1 pin for core hole | ① | Black | - | 14.2 | 1.5 | 4.0 | 40 x 40 | 100 pieces |
| 091192 | - | 1 cross | ① | Black | - | 10.1 | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091193 | B | 2 crosses | ③ | Black | 10 | 10.1 (10.0) | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091193S02 | B | 2 crosses, ESD electrostatical discharging | ③ | Black | 10 | 10.1 (10.0) | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091193S03 | B | 2 crosses | ③ | Gray ≈ RAL 7004 | 10 | 10.1 (10.0) | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091196 | - | 1 cross | ① | Black | - | 11.3 | 3.5 | 4.0 | 40 x 40 | 100 pieces |
| 091197 | - | 2 crosses | ③ | Black | - | 11.2 | 3.0 | 4.0 | 40 x 80 | 50 pieces |
| 091200 | - | 4 crosses | ① | Black | - | 11.3 | 4.0 | 4.0 | 80 x 80 | 10 pieces |
| 091205 | - | 8 support ribs 11.3 x 2.0 | ③ | Black | - | 11.3 | 4.0 | 4.0 | 80 x160 | 10 pieces |
| 091209 | I | 2 crosses and 2 pins | ③ | Black | 8 | 6.9 (6.8) | 3.5 | 4.0 | 40 x 160 | 10 pieces |
| 091209S01 | I | 2 crosses and 2 pins | ③ | Gray ≈ RAL 7042 | 8 | 6.9 (6.8) | 3.5 | 4.0 | 40 x 160 | 10 pieces |
| 091278 | I | 6 pins | ③ | Black | 8 | 4.3 (4.0) | 3.5 | 4.0 | 16 x 160 | 10 pieces |
| 091320 | I | New version, 1 cross | ⑤ | Black | 8 | 6.8 (6.8) | 4.0 | 4.0 | 40 x 40 R40 - 90° | 100 pieces |
| 091320S02 | I | New version, 1 cross | ⑤ | Gray ≈ RAL 7042 | 8 | 6.8 (6.8) | 4.0 | 4.0 | 40 x 40 R40 - 90° | 100 pieces |
| 091345S01 | B | ESD electrostatical discharging, 1 pin for core hole | ⑤ | Black | 10 | 10.4 (10.0) | 3.0 | 4.0 | 40 x 40 R33.3 - 90° | 100 pieces |
| 091345S02 | B | 1 pin for core hole | ⑤ | Gray ≈ RAL 7004 | 10 | 10.4 (10.0) | 3.0 | 4.0 | 40 x 40 R33.3 - 90° | 100 pieces |
| 091387 | I | 4 Pins for core hole, With hole Ø 10.3 | ① | Black | 8 | 6.0 | 4.0 | 4.0 | 40 x 40 | 100 pieces |
| 091387S01 | I | 4 Pins for core hole, With hole Ø 10.3 | ① | Gray ≈ RAL 7042 | 8 | 6.0 | 4.0 | 4.0 | 40 x 40 | 100 pieces |
