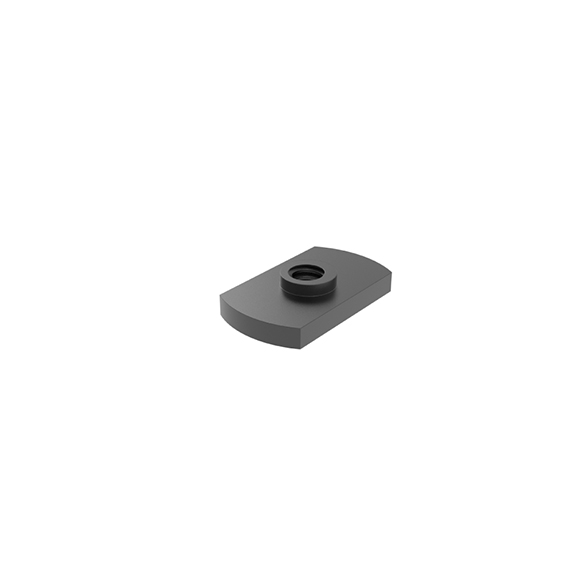

ECO T-nut Style A Centric

Product information "ECO T-nut Style A Centric"

Color:
Black

Delivery Countries:
North America

Description:
To fasten components to profiles

Material:
Steel

Surface:
Zinc plated
Pack Quantity: 100 pieces
Model: Steel
Weight (g): 12.0
ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73181692900
Customs Tariff Number Export: 73181692
ERP Number: 138567

Variants

Part # Material H (mm) B (mm) L (mm) h (mm) M Slot N (mm) Grid
096E15U1/4-20 Steel 5.5 (0.21") 16.0 (0.62") 28.0 (1.10") 2.0 (0.07") 1/4-20 UNC 8 38.1 (1.5")
096E15U5/16-18 Steel 5.5 (0.21") 16.0 (0.62") 25.0 (0.98") 2.0 (0.07") 5/16-18 UNC 8 38.1 (1.5")
096E20M5S05 Steel 3.0 8.0 15.0 1.0 M5 5 20
096E30M6S03R01 Steel 4.5 15.0 20.5 1.5 M6 6 30
096E40M8S05 Steel 5.0 16.0 28.0 1.5 M8 8 40
096E45M8S05 Steel 5.5 18.0 32.0 1.5 M8 10 45
