ECO T-nut Style A Centric

Product information "ECO T-nut Style A Centric"

Color:
Black

Delivery Countries:
North America

Description:

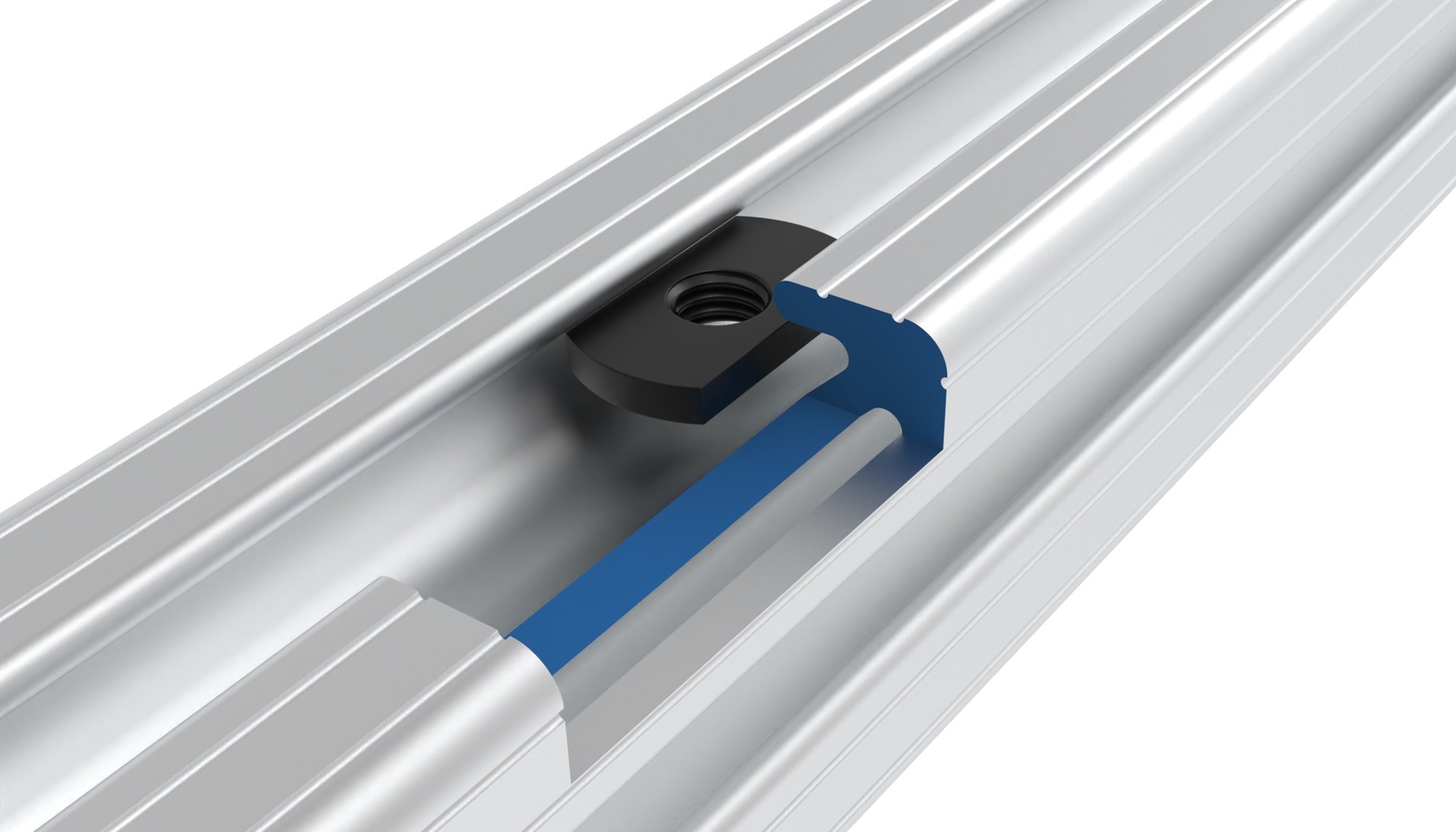

To fasten components to profiles

Material:
Steel

Surface:
Zinc plated

Pack Quantity:	100 pieces
Model:	Steel
Weight (g):	17.0
ERP Number:	120056

Variants

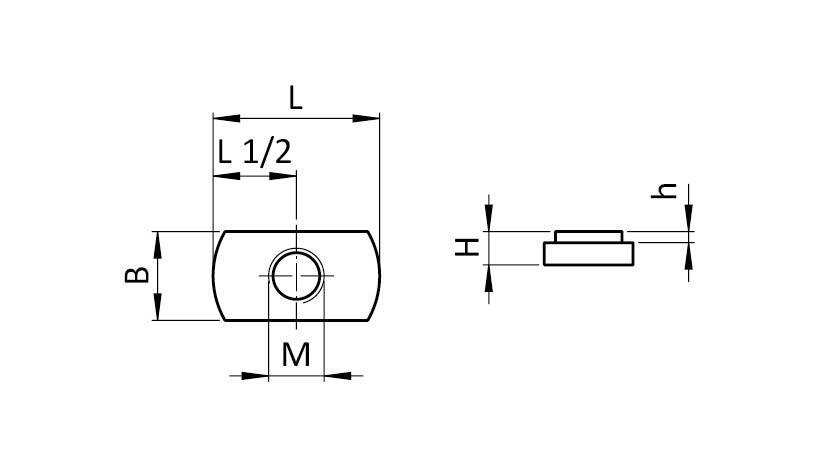

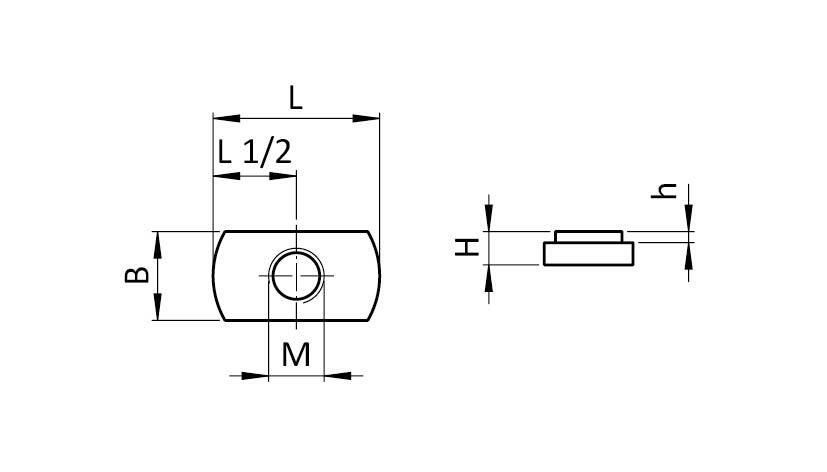

Part #	Material	H (mm)	B (mm)	L (mm)	h (mm)	M	Slot N (mm)	Modular Dimension (mm)	Pack Quantity	CAD
096E20M5S05	Steel	3.0	8.0	15.0	1.0	M5	5	20	100 pieces
096E30M6S03R01	Steel	4.5	15.0	20.5	1.5	M6	6	30	1 set (100 pieces)

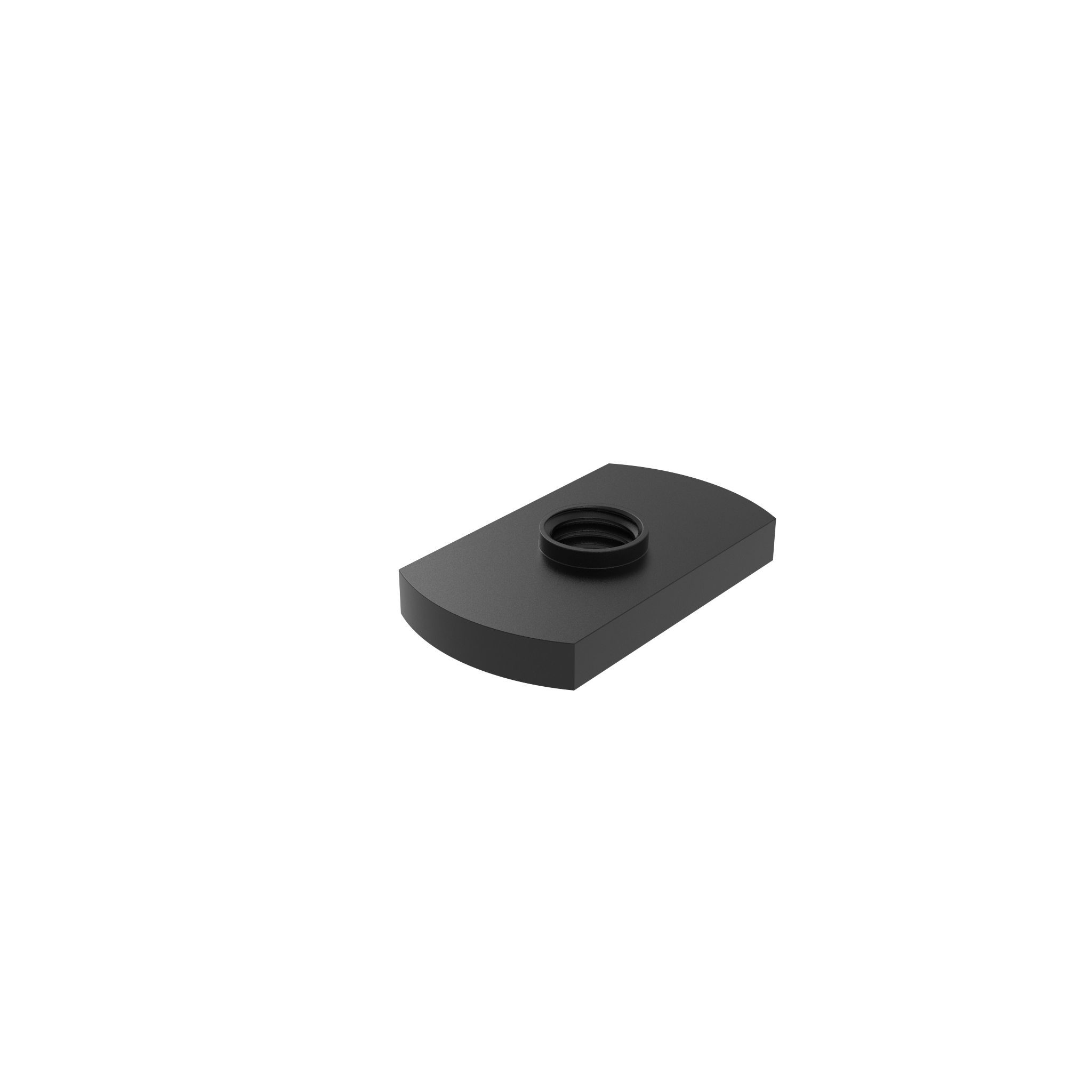

096E40M8S05	Steel	5.0	16.0	28.0	1.5	M8	8	40	100 pieces
096E45M8S05	Steel	5.5	18.0	32.0	1.5	M8	10	45	100 pieces
096E15U5/16-18	Steel	5.5 (0.21")	16.0 (0.62")	25.0 (0.98")	2.0 (0.07")	5/16-18 UNC	8	38.1 (1.5")	100 pieces
096E15U1/4-20	Steel	5.5 (0.21")	16.0 (0.62")	28.0 (1.10")	2.0 (0.07")	1/4-20 UNC	8	38.1 (1.5")	100 pieces

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73181692900
Customs Tariff Number Export: 73181692

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate

Tags

Slot Size	Slot 8
Modular Dimension	Modular Dimension 40
Profile Form	T-slot Profiles
