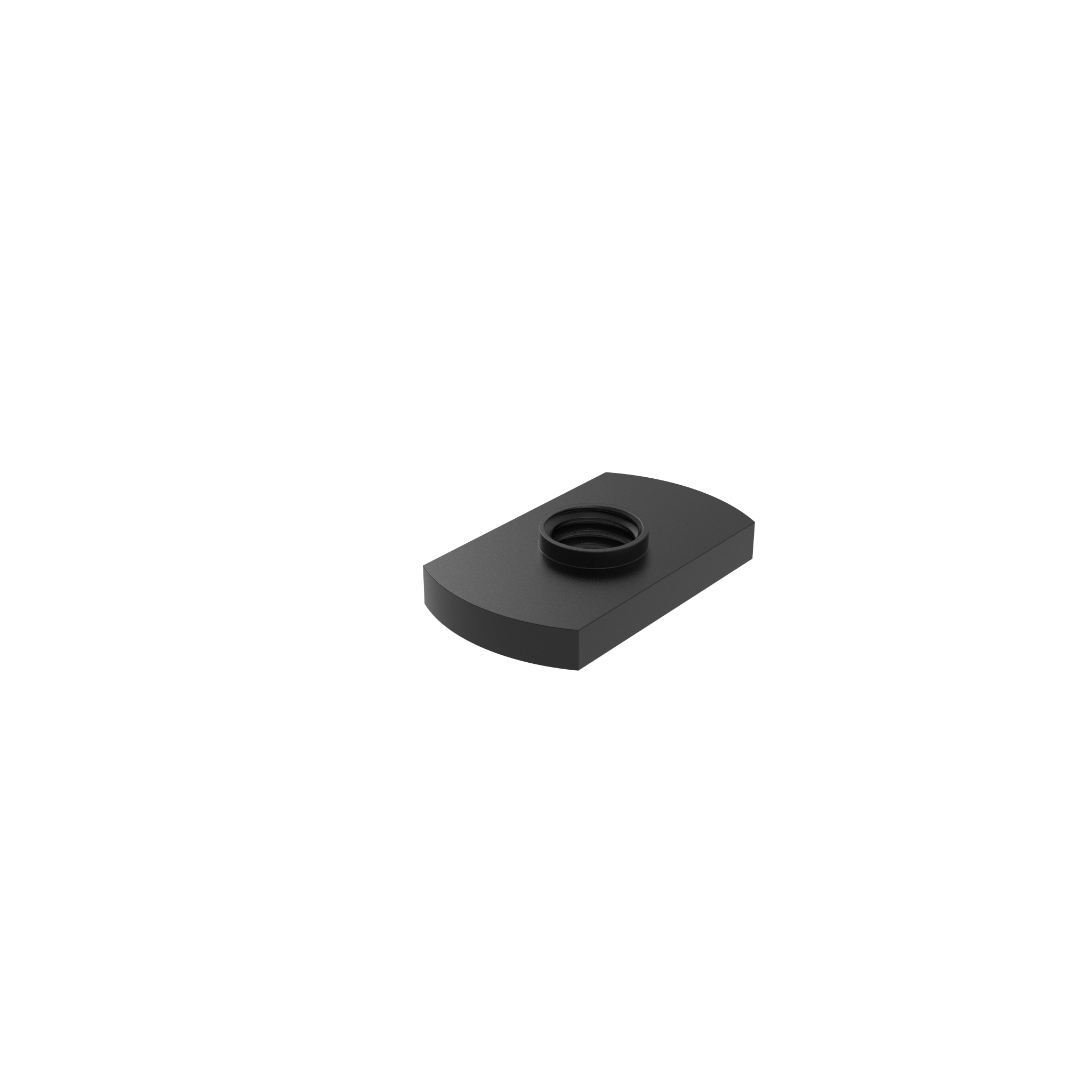

ECO T-nut Style A Centric

Product information "ECO T-nut Style A Centric"

Color:
Black

Delivery Countries:
North America

Description:
To fasten components to profiles

Material:
Steel

Surface:
Zinc plated
Model: Steel
Pack Quantity: 100 pieces
Customs Tariff Number Export: 73181692
Weight (g): 20.0
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
ERP Number: 120060
Zolltarifnummer: 73181692900

Variants

Part # B (mm) H (mm) h (mm) L (mm) M Material Slot N (mm) Grid
096E15U1/4-20 16.0 (0.62") 5.5 (0.21") 2.0 (0.07") 28.0 (1.10") 1/4-20 UNC Steel 8 38.1 (1.5")
096E15U5/16-18 16.0 (0.62") 5.5 (0.21") 2.0 (0.07") 25.0 (0.98") 5/16-18 UNC Steel 8 38.1 (1.5")
096E20M5S05 8.0 3.0 1.0 15.0 M5 Steel 5 20
096E30M6S03R01 15.0 4.5 1.5 20.5 M6 Steel 6 30
096E40M8S05 16.0 5.0 1.5 28.0 M8 Steel 8 40
096E45M8S05 18.0 5.5 1.5 32.0 M8 Steel 10 45
