ECO T-nut Style C Eccentric
Product number:
096E30M6E
Product information "ECO T-nut Style C Eccentric"
Color:
Black, -
Delivery Countries:
North America
Description:

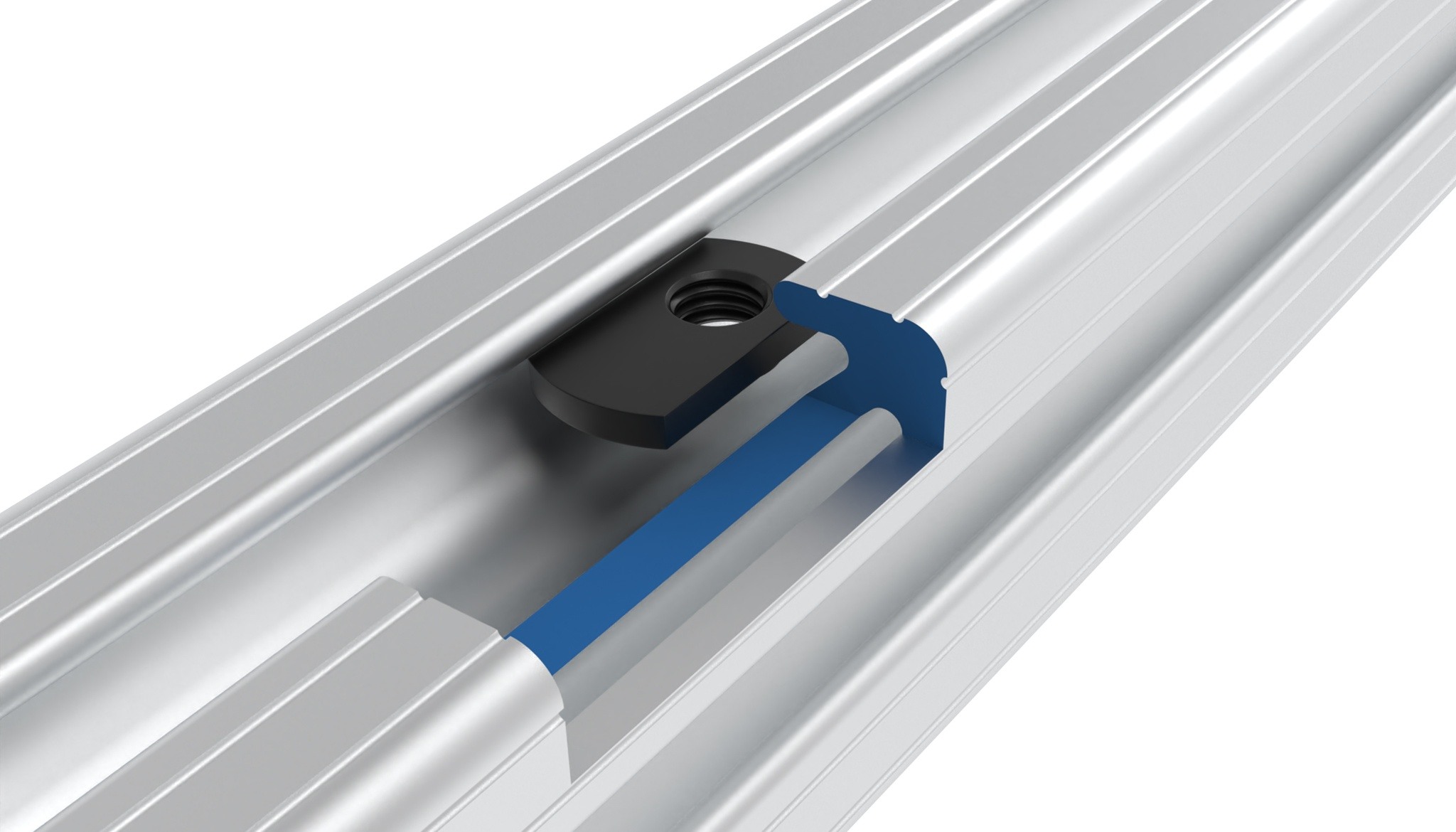

To fasten components to profiles
Material:
Steel / stainless steel SS304
Surface:
Zinc plated / plain
Tip:
Compatible ECO Connection Plate AL see 093EVA2551S et sq.
Zolltarifnummer:
73181595890
Black, -
Delivery Countries:
North America
Description:
To fasten components to profiles
Material:
Steel / stainless steel SS304
Surface:
Zinc plated / plain
Tip:
Compatible ECO Connection Plate AL see 093EVA2551S et sq.
Zolltarifnummer:
73181595890
Model: | Steel / stainless steel |
---|---|
Pack Quantity: | 100 pieces |
Pack Quantity (1): | 100 |
Weight (g): | 7.0 |
Variants

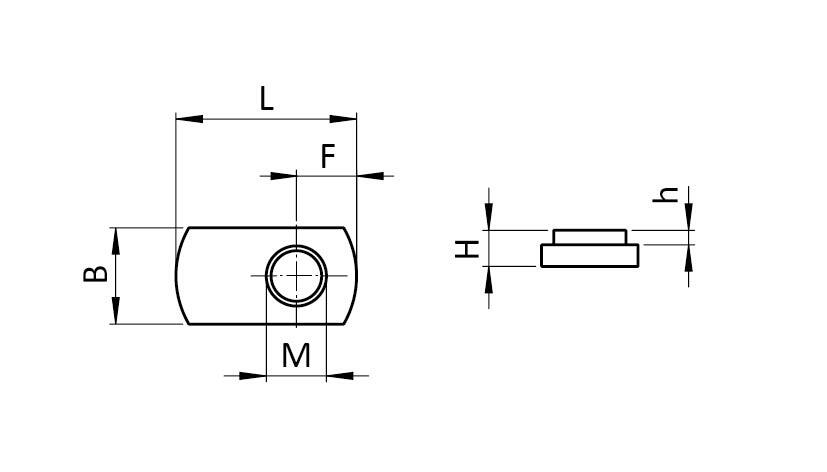

Product ID | Material | Fig. | Slot N (mm) | L (mm) | B (mm) | h (mm) | M | H (mm) | F (mm) | Grid |
---|---|---|---|---|---|---|---|---|---|---|
096E15U5/16-18S02 | Steel | ① | 8 | 25.0 (0.98") | 16.0 (0.62") | 2.0 (0.07") | 5/16-18 UNC | 5.5 (0.21") | 8.0 (0.31") | 38.1 (1.5") |
096E20M5 | Steel | ① | 5 | 15.0 | 8.0 | 1.0 | M5 | 3.0 | 5.0 | 20 |
096E20M5E | Stainless steel | ② | 5 | 15.0 | 8.0 | 1.0 | M5 | 3.0 | 5.0 | 20 |
096E30M6 | Steel | ① | 6 | 20.5 | 15.0 | 1.5 | M6 | 4.5 | 8.0 | 30 |
096E30M6E | Stainless steel | ② | 6 | 20.5 | 15.0 | 1.5 | M6 | 4.5 | 8.0 | 30 |
096E40M6 | Steel | ① | 8 | 25.0 | 16.0 | 1.5 | M6 | 5.0 | 8.0 | 40 |
096E40M6E | Stainless steel | ② | 8 | 25.0 | 16.0 | 1.5 | M6 | 5.0 | 8.0 | 40 |
096E40M8 | Steel | ① | 8 | 25.0 | 16.0 | 1.5 | M8 | 5.0 | 8.0 | 40 |
096E40M8E | Stainless steel | ② | 8 | 25.0 | 16.0 | 1.5 | M8 | 5.0 | 8.0 | 40 |
096E45M8 | Steel | ① | 10 | 32.0 | 18.0 | 1.5 | M8 | 5.5 | 10.0 | 45 |
096E45M8E | Stainless steel | ② | 10 | 32.0 | 18.0 | 1.5 | M8 | 5.5 | 10.0 | 45 |
