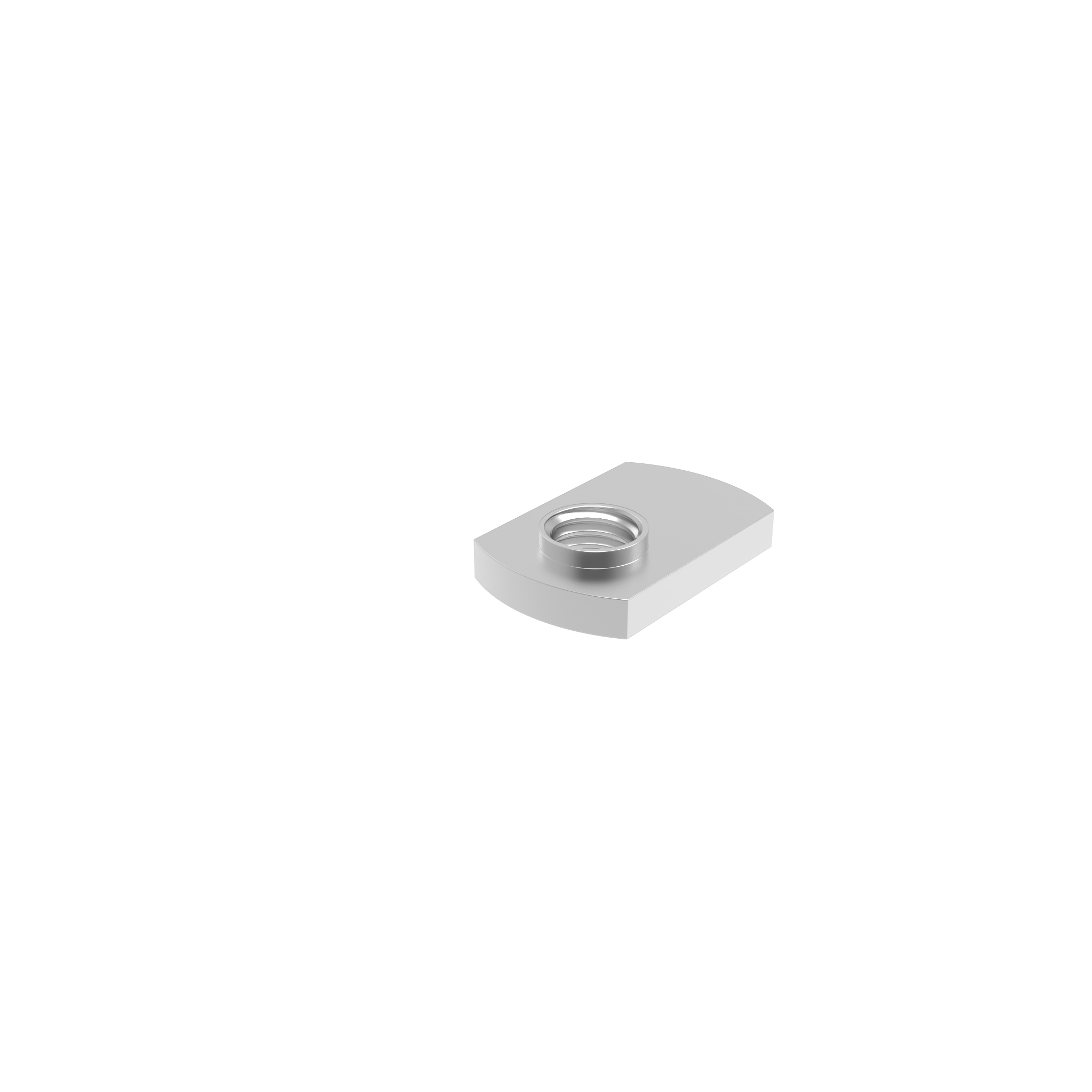

ECO T-nut Style C Eccentric

Product information "ECO T-nut Style C Eccentric"

Color:
Black, -

Delivery Countries:
North America

Description:
To fasten components to profiles

Material:
Steel / stainless steel SS304

Surface:
Zinc plated / plain

Model:	Steel / stainless steel
Pack Quantity:	100 pieces
Customs Tariff Number Export:	73181639, 73181692
Weight (g):	10.0
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	120053

Variants

Part #	Fig.	B (mm)	F (mm)	H (mm)	h (mm)	L (mm)	M	Material	Slot N (mm)	Grid
096E15U5/16-18S02	①	16.0 (0.62")	8.0 (0.31")	5.5 (0.21")	2.0 (0.07")	25.0 (0.98")	5/16-18 UNC	Steel	8	38.1 (1.5")
096E20M5	①	8.0	5.0	3.0	1.0	15.0	M5	Steel	5	20
096E20M5E	②	8.0	5.0	3.0	1.0	15.0	M5	Stainless steel	5	20
096E30M6	①	15.0	8.0	4.5	1.5	20.5	M6	Steel	6	30
096E30M6E	②	15.0	8.0	4.5	1.5	20.5	M6	Stainless steel	6	30
096E40M6	①	16.0	8.0	5.0	1.5	25.0	M6	Steel	8	40
096E40M8	①	16.0	8.0	5.0	1.5	25.0	M8	Steel	8	40
096E40M8E	②	16.0	8.0	5.0	1.5	25.0	M8	Stainless steel	8	40
096E45M8	①	18.0	10.0	5.5	1.5	32.0	M8	Steel	10	45
096E45M8E	②	18.0	10.0	5.5	1.5	32.0	M8	Stainless steel	10	45
