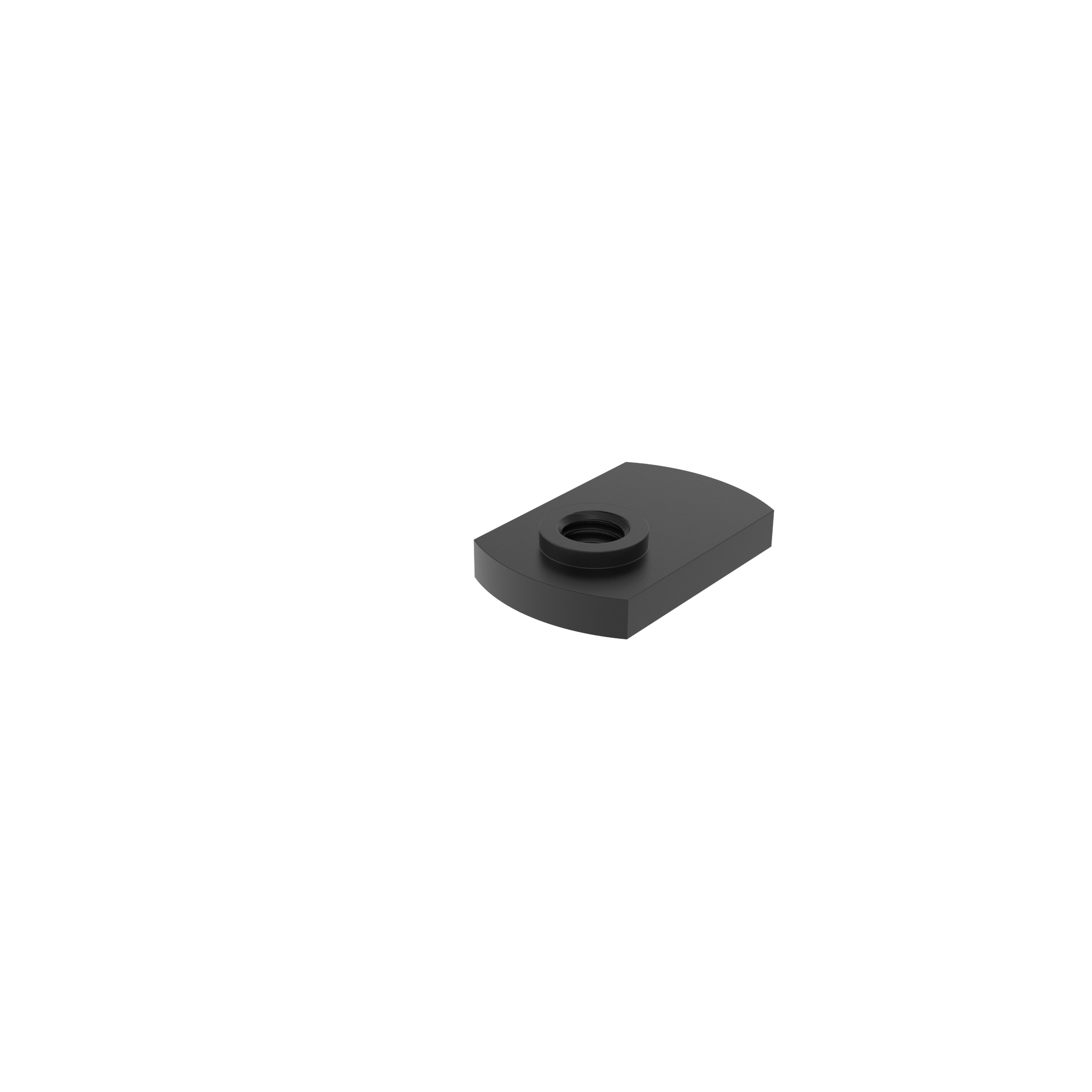

ECO T-nut Style C Eccentric

Product information "ECO T-nut Style C Eccentric"

Color:
Black, -

Delivery Countries:
North America

Description:
To fasten components to profiles

Material:
Steel / stainless steel SS304

Surface:
Zinc plated / plain

Pack Quantity:	100 pieces
Model:	Steel / stainless steel
Weight (g):	11.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Customs Tariff Number Export:	73181692
ERP Number:	132658

Variants

Part #	F (mm)	Material	H (mm)	B (mm)	L (mm)	h (mm)	Fig.	M	Slot N (mm)	Grid
096E15U5/16-18S02	8.0 (0.31")	Steel	5.5 (0.21")	16.0 (0.62")	25.0 (0.98")	2.0 (0.07")	①	5/16-18 UNC	8	38.1 (1.5")
096E20M5	5.0	Steel	3.0	8.0	15.0	1.0	①	M5	5	20
096E20M5E	5.0	Stainless steel	3.0	8.0	15.0	1.0	②	M5	5	20
096E30M6	8.0	Steel	4.5	15.0	20.5	1.5	①	M6	6	30
096E30M6E	8.0	Stainless steel	4.5	15.0	20.5	1.5	②	M6	6	30
096E40M6	8.0	Steel	5.0	16.0	25.0	1.5	①	M6	8	40
096E40M8	8.0	Steel	5.0	16.0	25.0	1.5	①	M8	8	40
096E40M8E	8.0	Stainless steel	5.0	16.0	25.0	1.5	②	M8	8	40
096E45M8	10.0	Steel	5.5	18.0	32.0	1.5	①	M8	10	45
096E45M8E	10.0	Stainless steel	5.5	18.0	32.0	1.5	②	M8	10	45
