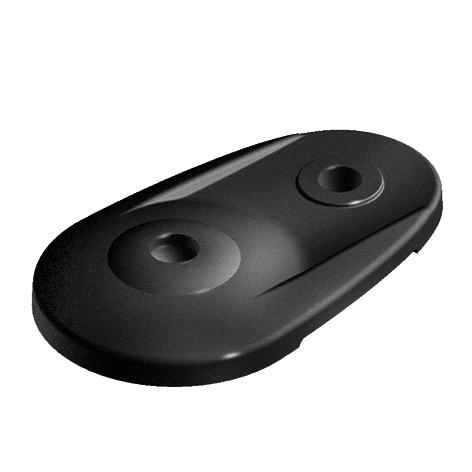

Extended Base 80 PA for Swivel Feet, Ball Joint 15

Product information "Extended Base 80 PA for Swivel Feet, Ball Joint 15"

Color:
Black

Delivery Countries:
Worldwide

Description:

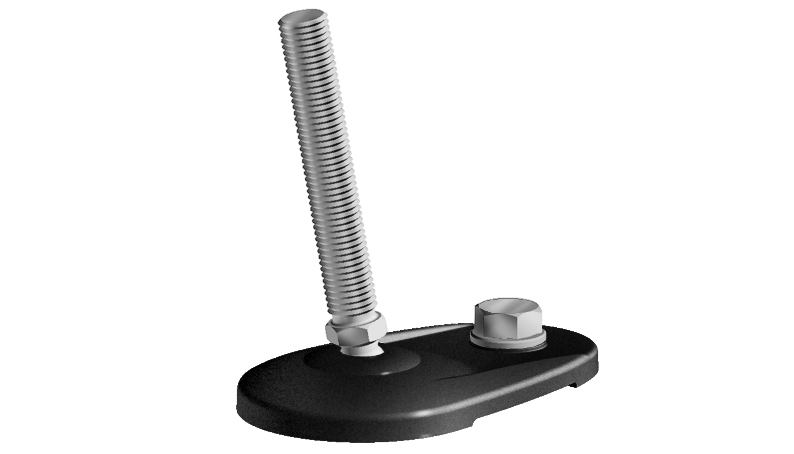

Extended swiveling leveling foot which can be fixed to the floor

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098DM08025M et sq. or 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. or 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG080 and 098AG060

Zolltarifnummer:
39269097900
Model: Plastic PA
Pack Quantity: 10 pieces
Weight (g): 58.8

Variants

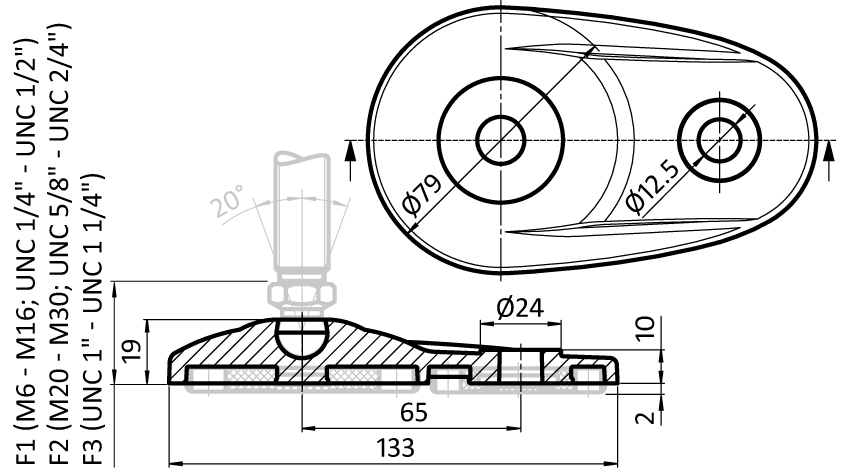

Product ID Fmax (N) F2 (mm) F3 (mm) Base F1 (mm) Version

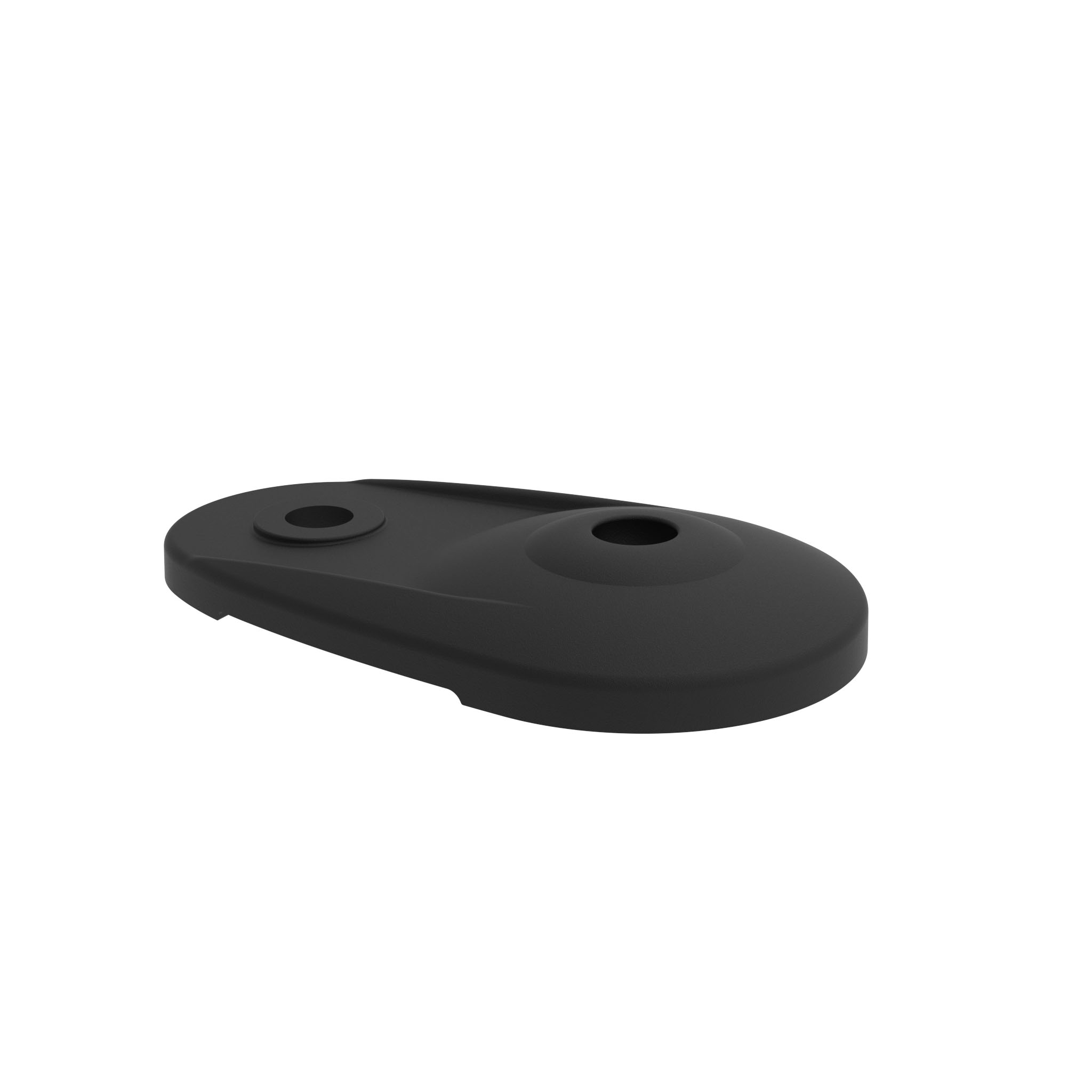

098DA080K 9800 33.5 34.5 80 30.5 without anti-slip plate
098DA080KG 9800 33.5 34.5 80 30.5 with anti-slip plate
