Anti-slip Plate for Pivot Feet

Product information "Anti-slip Plate for Pivot Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:
Prevents movement of leveling feet on slippery surfaces and absorbs some vibration

Material:
Thermoplastic elastomer, ≈ 70 Shore A

Specials:
ESD electrostatical discharging on request

Tip:
* Also for bases with bolt down holes

Zolltarifnummer:
40169997900

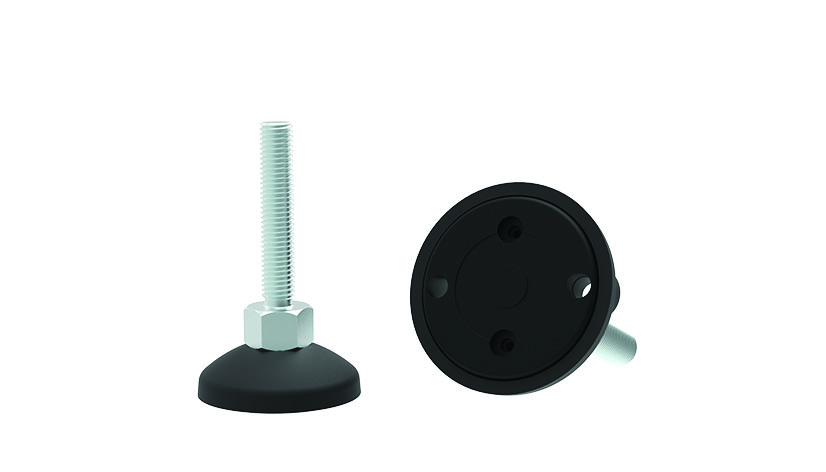

Model: For pivot feet
Pack Quantity: 10 pieces
Specification: Water and oil resistant (up to 60 °C)
Weight (g): 12

Variants

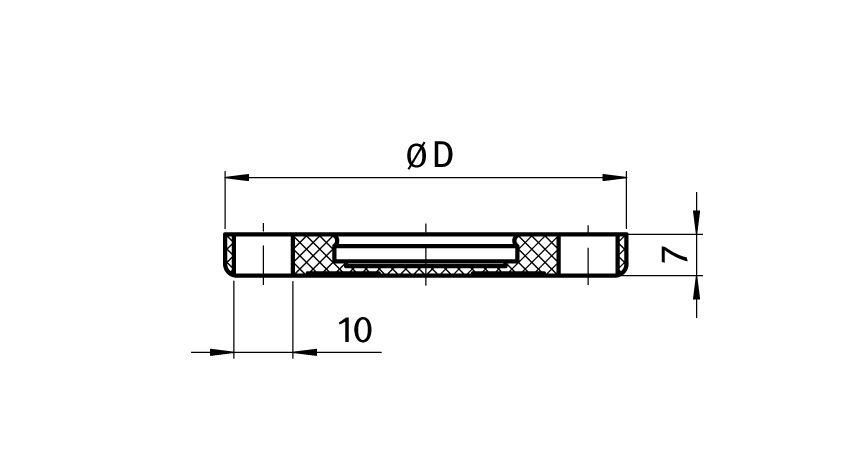

Product ID Version Fig. for Base D (mm)
098AG050 50 41
098AG060 60 49
098AG060B *60 49
098AG060S01 With central Ø 15 mm bore 60 49
098AG080 80 68
098AG080B *80 68
098AG100B *100 87
098AG120B *120 107
