Anti-slip Plate for Pivot Feet

Product information "Anti-slip Plate for Pivot Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:

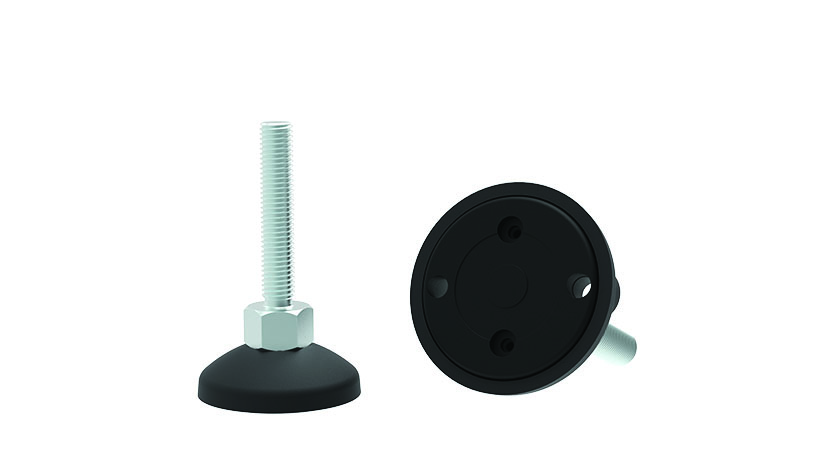

Prevents movement of leveling feet on slippery surfaces and absorbs some vibration

Material:
Thermoplastic elastomer, ≈ 70 Shore A

Specials:
ESD electrostatical discharging on request

Tip:
*Also for bases with bolt down holes
Pack Quantity: 10 pieces
Model: For pivot feet
Weight (g): 23.0
Specification: Water and oil resistant (up to 60 °C)
ERP Number: 103462

Variants

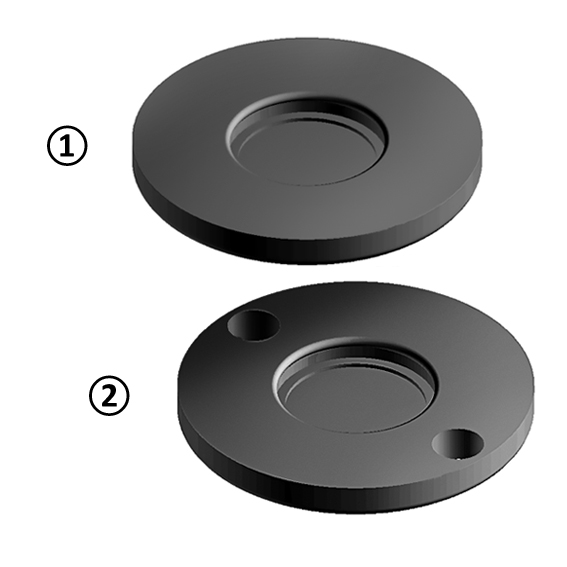

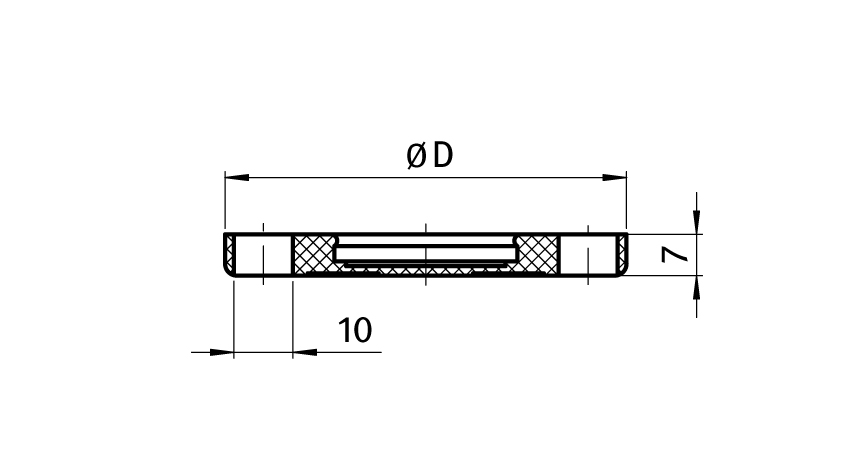

Part # D (mm) Version for Base Fig. CAD
41 - 50 ①
49 - 60 ①
49 - *60 ②
49 With central Ø 15 mm bore 60 -
68 - 80 ①
68 - *80 ②
87 - *100 ②
107 - *120 ②

CAD Downloads

Classifications

ECLASS 6.0
90900104
ECLASS 7.0
90900104
ECLASS 8.0
90900104
ECLASS 9.0
90900104
ECLASS 10.0
90900104
ECLASS 11.0
90900104
ECLASS 12.0
90900104
ECLASS 13.0
90900104
ECLASS 14.0
90900104
ECLASS 15.0
90900104
ECLASS 16.0
23010792
Zolltarifnummer
40169997900
Customs Tariff Number Export
40169997

Certificates

Tags

Profile Type Profile Type B, Profile Type I
Product Feature Fractional
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
