FIFO Monorail Station 40 (Set)
€0.00

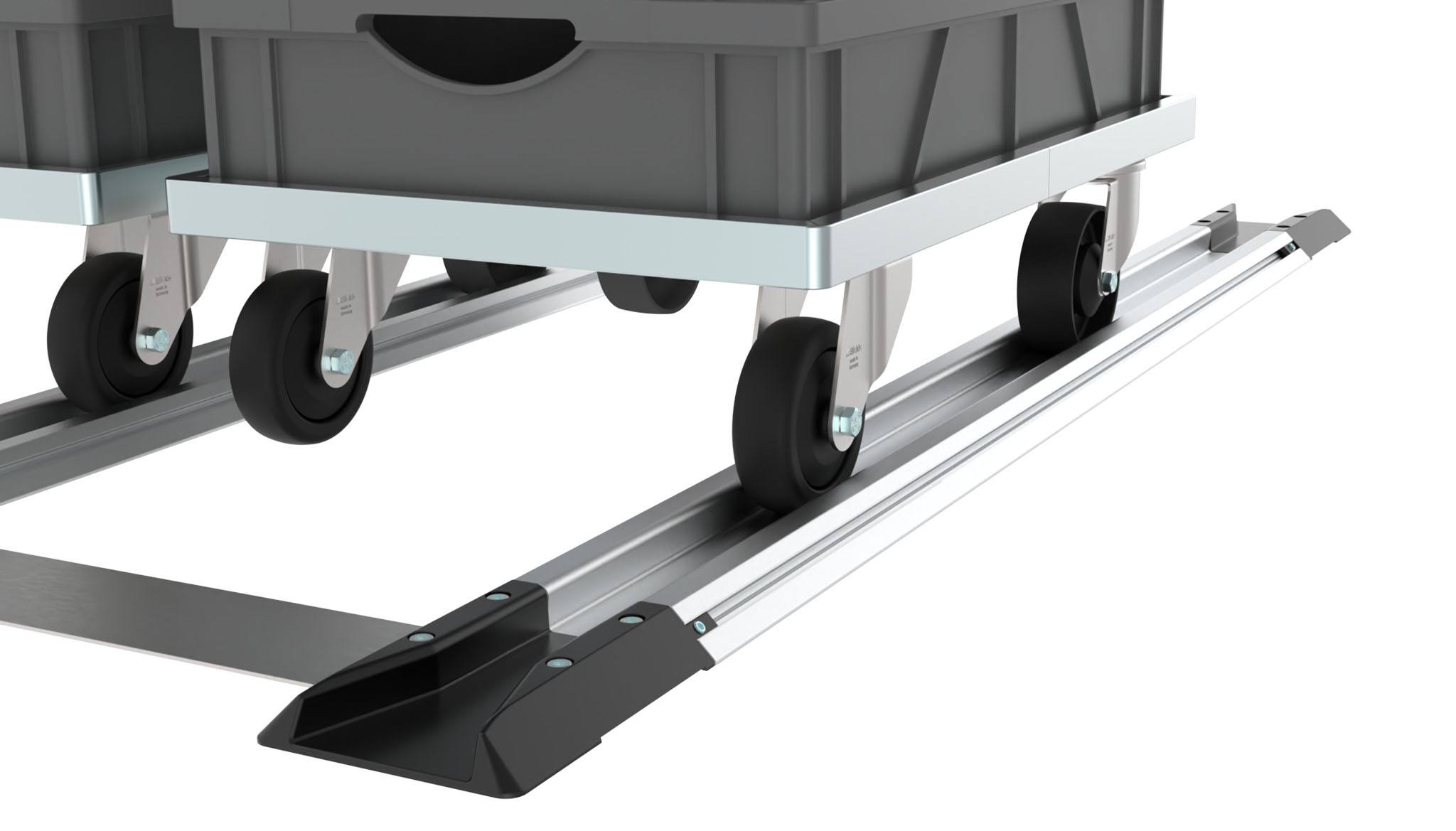

Fast mounting FIFO station for guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm;
To extend guiding rails, connect them face to face with connecting strip in the slots;
To widen, connect further parallel guided guiding rails and end caps with connecting elements
Posts can be mounted in the slot from above;
To securely fix to the floor, use the optional mounting set;
Mounting of a brush brake or an end stop with 2 optional mounting sets as a support base

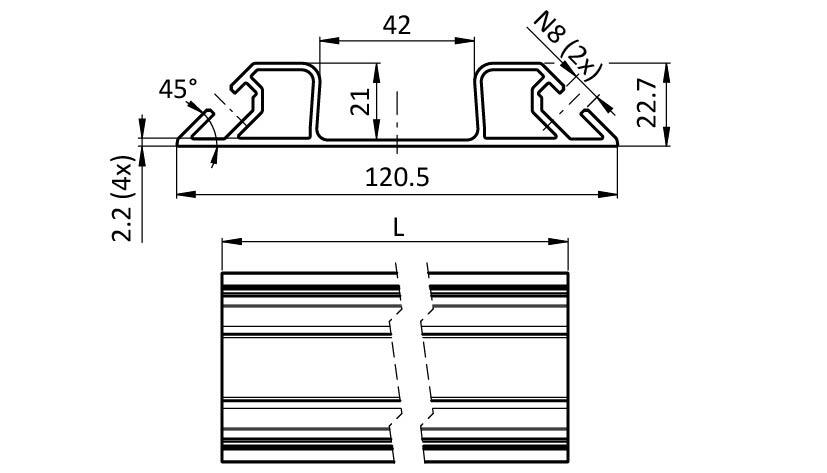

Rails: Aluminum
Infeed caps: Aluminum die-cast
Hexagon socket set screws: Steel
Connecting elements: Stainless steel
Screws: Steel
Surface:
Rails: Anodized
Infeed caps: Powder coated
Hexagon socket set screws: Zinc plated
Screws: Zinc plated
Color:
Infeed caps: Black
Set:
5 FIFO Monorail Rails 40,
10 infeed caps,
20 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8,
8 connecting elements,
32 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16
Tip:
Compatible Connecting Strip see 096010S61
Compatible Monorail Angle Connector for Post see 093WS30145S01
Compatible Mounting Set for Posts Support Struts see 093WS30145S02
Compatible Cover Profiles see 092050;
Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Aluminum |
| Weight (g): | 24260.0 |
| ERP Number: | 170735 |
Classifications
- ECLASS 6.0
- 21070390
- ECLASS 7.0
- 21079290
- ECLASS 8.0
- 21079290
- ECLASS 9.0
- 21079290
- ECLASS 10.0
- 21079290
- ECLASS 11.0
- 21070490
- ECLASS 12.0
- 21070490
- ECLASS 13.0
- 21070490
- Zolltarifnummer
- 76169990990
- Customs Tariff Number Export
- 76169990
Certificates
Matching accessories
Description:End-to-end connection of two FIFO Monorail rails without machiningMaterial:SteelSurface:Zinc platedSet:1 connecting strip 180 - slot 8 4 screws DIN EN ISO 4027 (DIN 914) - M6 x 8Delivery Countries:Worldwide
Description:To mount posts in the upper slot of FIFO monorail rail 40Material:AluminumSet:2 angle connector 45° 30 x 30, 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 12, 2 T-slot nuts - M8, 2 self-tapping screw - S8 x 25Tip:Compatible FIFO Monorail Rail see 02082PO.1200Delivery Countries:Worldwide
Description:For mounting diagonal struts to support posts in the upper slot of FIFO monorail rails 40Material:AluminumSet:6 angle connectors 45° 30 x 30, 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 12, 4 T-slot nut- M8, 4 self-tapping screws - S8 x 25, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 14, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8Tip:Compatible FIFO Monorail Rail see 02082PO.1200Delivery Countries:Worldwide
Description:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plastic PPColor:Black, yellow, red, blue, gray, white, natural, alu colorTip:ESD electrostatical discharging version: Notch at the bottom sideSpecials:Other colors on requestDelivery Countries:Worldwide
Description:To securely fix FIFO Monorail Rails to the floor; For use as a support base to mount a brush brake or an end stopMaterial:SteelSurface:Zinc platedSet:2 Mounting, 4 T-slot nuts - slot 8 - M6, 6 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Tip:Compatible Brush Brake see 02082BB Compatible variable End Stop for FIFO Monorail Rail 40 see 096030S52 Compatible variable End Stop for FIFO Monorail Rail 55 see 096030S12Delivery Countries:Worldwide
