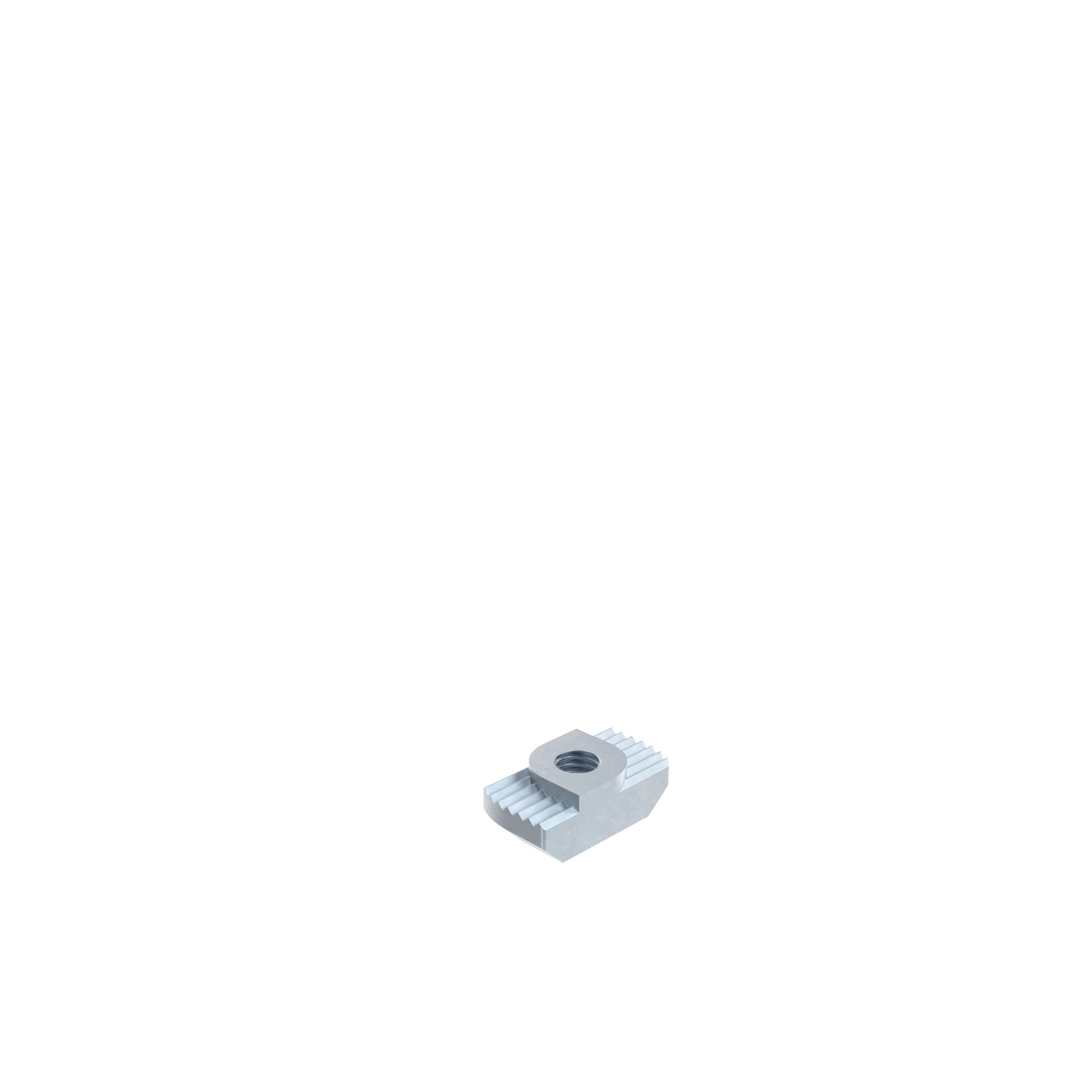

Hammer Nut Slot 10

Product information "Hammer Nut Slot 10"

Delivery Countries:
Worldwide / North America

Description:
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection

Material:
Steel / stainless steel

Specials:
Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request
Surface: Zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain

Pack Quantity:	100 pieces
Model:	Slot 10, steel / stainless steel
Weight (g):	4.7
ERP Number:	102965

Variants

Part #	Version	Material	H (mm)	Profile	h (mm)	M	Pack Quantity
096H10413S02	-	Steel	1.3	-	5.0	M4	100 pieces
096H10513S02	-	Steel	1.3	-	5.0	M5	100 pieces
096H10613S02	-	Steel	1.3	-	5.0	M6	100 pieces
096H10813S02	-	Steel	1.3	-	5.0	M8	100 pieces
096H10517	-	Steel	1.5	-	5.8	M5	100 pieces
096H10617	-	Steel	1.5	-	5.8	M6	100 pieces
096H10817	-	Steel	1.5	-	5.8	M8	100 pieces
096H10430	-	Steel	3.0	B	5.8	M4	100 pieces
096H10530	-	Steel	3.0	B	5.8	M5	100 pieces
096H10630	-	Steel	3.0	B	5.8	M6	100 pieces
096H10830	-	Steel	3.0	B	5.8	M8	100 pieces
096H1010-3230	-	Steel	3.0	B	5.8	10-32 UNF	100 pieces
096H101/430	-	Steel	3.0	B	5.8	1/4-20 UNC	100 pieces
096H105/1630	-	Steel	3.0	B	5.8	5/16-18 UNC	100 pieces
096H10630E	-	Stainless steel	3.0	B	5.8	M6	100 pieces
096H10830E	-	Stainless steel	3.0	B	5.8	M8	100 pieces
096H101/430E	-	Stainless steel	3.0	B	5.8	1/4-20 UNC	100 pieces
096H105/1630E	-	Stainless steel	3.0	B	5.8	5/16-18 UNC	100 pieces
096H10630ES03	With dry film lubrication and dented thread	Stainless steel	3.0	-	5.8	M6	100 pieces
096H10830ES03	With dented thread	Stainless steel	3.0	-	5.8	M8	2000 Stück
