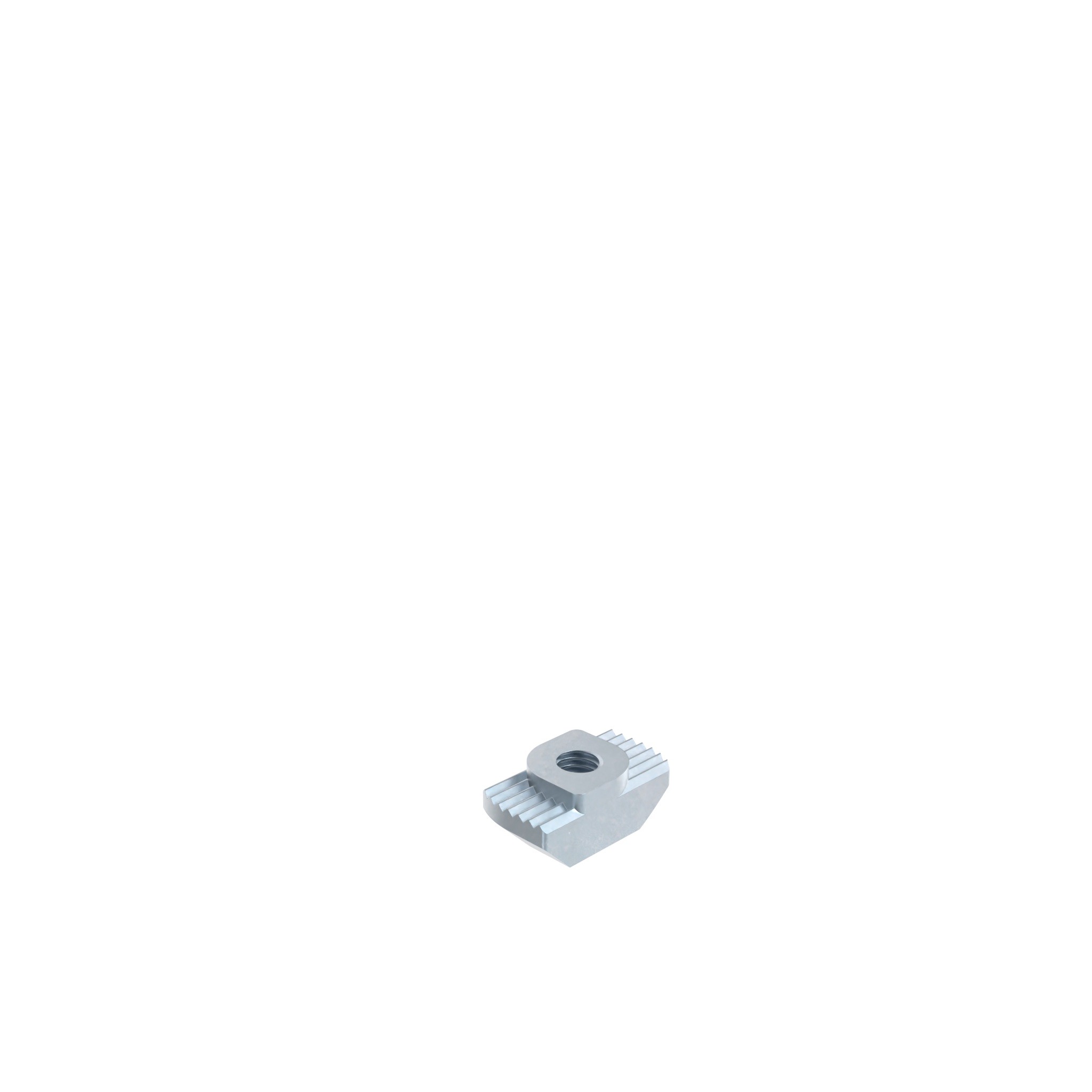

Hammer Nut Slot 10

Product information "Hammer Nut Slot 10"

Delivery Countries:
Worldwide

Description:
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connection

Material:
Steel / stainless steel

Specials:
Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request
Surface: Zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain
(ECLASS 6.0): 23110890
(ECLASS 7.0): 23110810
(ECLASS 8.0): 23110810
(ECLASS 9.0): 23110810
(ECLASS 10.0): 23110810
(ECLASS 11.0): 23110716
(ECLASS 12.0): 23110716
(ECLASS 13.0): 23110716
Customs Tariff Number Export: 73181692
Model: Slot 10, steel / stainless steel
Pack Quantity: 100 pieces
Pack Quantity (1): 100
Weight (g): 6.7
pA Number: 102967

Variants

Product ID h (mm) Profile H (mm) M Material Version
096H101/430 5.8 B 3.0 1/4-20 UNC Steel
096H101/430E 5.8 B 3.0 1/4-20 UNC Stainless steel
096H1010-3230 5.8 B 3.0 10-32 UNF Steel
096H10413S02 5.0 1.3 M4 Steel
096H10430 5.8 B 3.0 M4 Steel
096H105/1630 5.8 B 3.0 5/16-18 UNC Steel
096H105/1630E 5.8 B 3.0 5/16-18 UNC Stainless steel
096H10513S02 5.0 1.3 M5 Steel
096H10517 5.8 1.5 M5 Steel
096H10530 5.8 B 3.0 M5 Steel
096H10613S02 5.0 1.3 M6 Steel
096H10617 5.8 1.5 M6 Steel
096H10630 5.8 B 3.0 M6 Steel
096H10630E 5.8 B 3.0 M6 Stainless steel
096H10630ES03 5.8 3.0 M6 Stainless steel With dry film lubrication and dented thread
096H10813S02 5.0 1.3 M8 Steel
096H10817 5.8 1.5 M8 Steel
096H10830 5.8 B 3.0 M8 Steel
096H10830E 5.8 B 3.0 M8 Stainless steel
096H10830ES03 5.8 3.0 M8 Stainless steel With dented thread
