Monitor Mount ZN with Locking Lever (Set)

Product information "Monitor Mount ZN with Locking Lever (Set)"

Color:
Monitor mounting plate: Black
Pivot joint: Alu colored
Locking lever: Black

Delivery Countries:
Worldwide

Description:

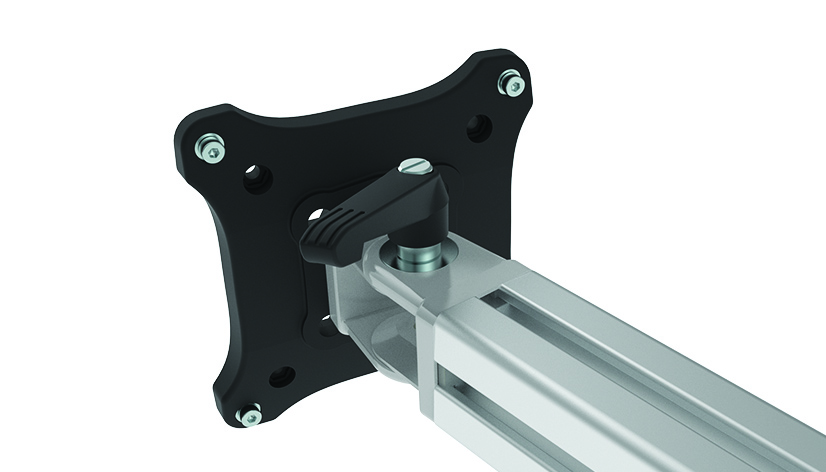

To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally or vertically for optimum visibility, can be fixed with KIPP locking lever at any angle; with separate locating pins for slot 8 and slot 10

Material:
Monitor mounting plate: Plastic PA, glas fiber reinforced
Pivot joint: Zinc die-cast
KIPP locking lever: Plastic PA, glas fiber reinforced

Set 1:
1 monitor mounting plate
1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washers
1 pivot joint 40 with locking lever
1 assembly set for profile: 1 screw M8 x 25 (frontal), 1 screw M8 x 16 (lateral), 2 locating pins

Set 2:
1 monitor mounting plate
1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washers
1 pivot joint 45 with locking lever
1 assembly set for profile: 1 screw M8 x 25 (frontal), 1 screw M8 x 16 (lateral), 2 locating pins
1 cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8

Specials:
Other colors on request

Surface:
Pivot joint: Laquered

Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
(ECLASS 6.0): 19140390
(ECLASS 7.0): 19140390
(ECLASS 8.0): 19140390
(ECLASS 9.0): 19140390
(ECLASS 10.0): 19140390
(ECLASS 11.0): 19140392
(ECLASS 12.0): 19140392
(ECLASS 13.0): 19140392
Customs Tariff Number Export: 39269097
Model: Swivelling
Pack Quantity: 1 set
Weight (g): 434.0
Zolltarifnummer: 39269097900
pA Number: 149501

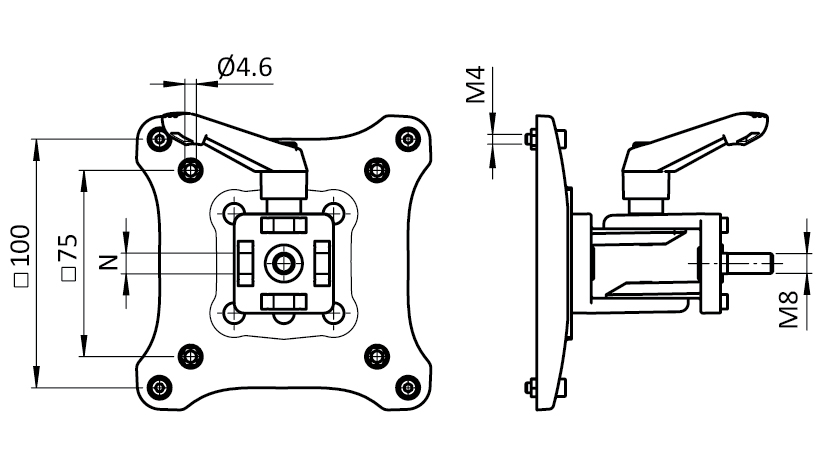

Variants

Product ID Opening Angle Profile Width Slot N (mm) Set
061SM7510040FS03 192° 40 8 / 10 Set 1
061SM7510045FS01 190° 45 8 / 10 Set 2
