Monitor Mounting Plate

Product information "Monitor Mounting Plate"

Color:
Monitor mounting plate: Black

Delivery Countries:
Worldwide

Description:

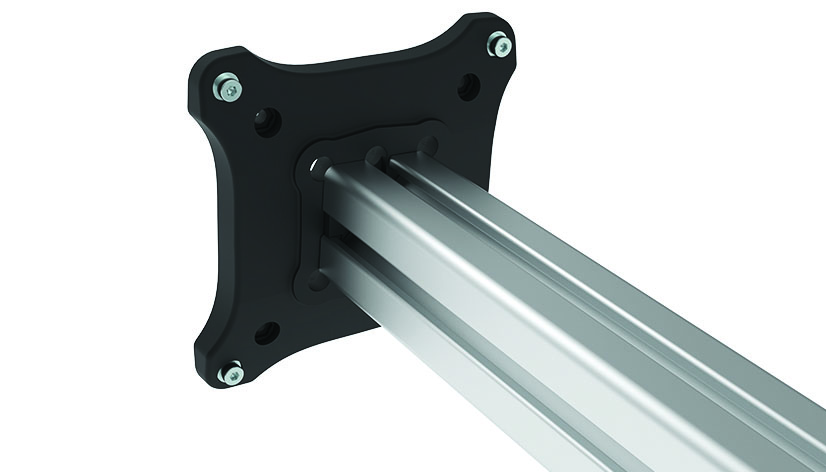

To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible; with separate locating pins for slot 8 and slot 10

Material:
Monitor mounting plate: Plastic PA, glass fiber reinforced

Set:
1 monitor mounting plate
1 assembly set for monitor: 4 cylinder head screws M4x12, 4 washers
assembly set for profile: M8x25 frontal and M8x16 slot side, 2 centering pieces

Specials:
Other colors on request

Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
(ECLASS 6.0): 19140390
(ECLASS 7.0): 19140390
(ECLASS 8.0): 19140390
(ECLASS 9.0): 19140390
(ECLASS 10.0): 19140390
(ECLASS 11.0): 19140392
(ECLASS 12.0): 19140392
(ECLASS 13.0): 19140392
Customs Tariff Number Export: 39269097
Pack Quantity: 1 set
Weight (g): 123.0
Zolltarifnummer: 39269097900
pA Number: 149795

Variants

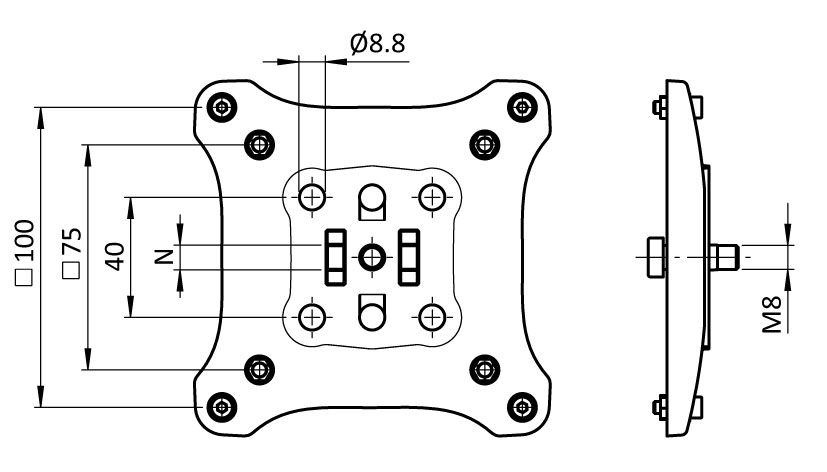

Product ID Slot N (mm)
061SM751004045 8 / 10

CAD Downloads

Certificates
