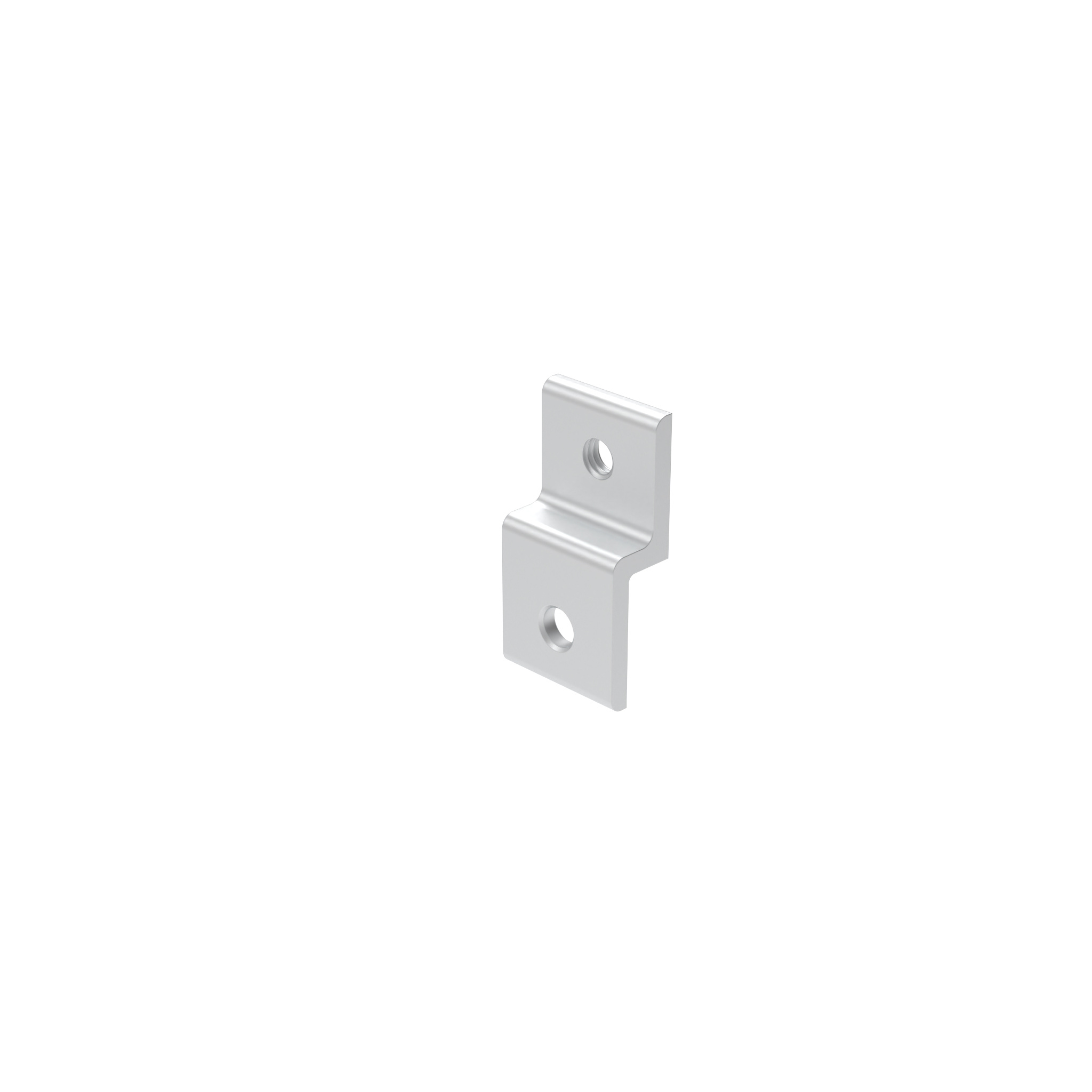

Panel Holder

Product information "Panel Holder"

Delivery Countries:
Worldwide

Description:
To attach panels easily to aluminum profiles

Material:
Aluminum

Surface:
Anodized

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360492
(ECLASS 12.0):	23360492
(ECLASS 13.0):	23360492
Customs Tariff Number Export:	76169990
ERP Number:	120389
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	10.0
Zolltarifnummer:	76169990990

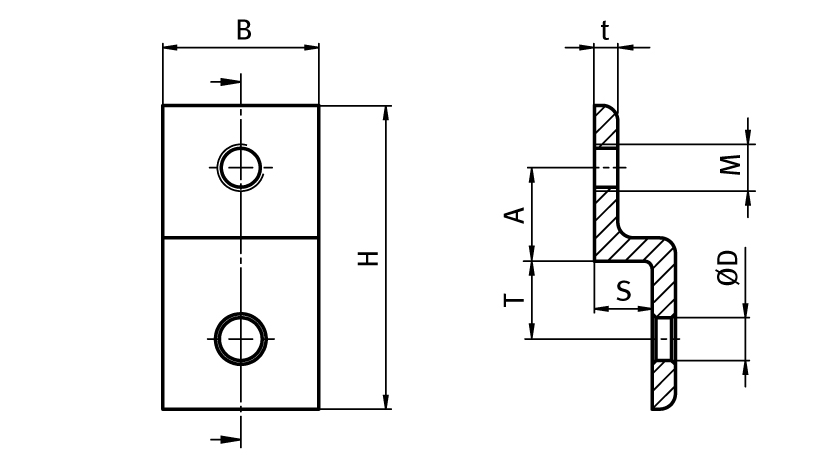

Product ID	A (mm)	H (mm)	ØD (mm)	T (mm)	S (mm)	t (mm)	Grid	B (mm)
093P20N	12.0	39.0	5.5	10.0	7.4	3.0	20	20.0
093P30N	23.0	68.0	9.0	15.0	11.0	6.0	30	30.0
093P40N	24.0	78.0	9.0	20.0	16.0	6.0	40	40.0
093P45N	26.5	88.0	9.0	22.5	17.5	6.0	45	45.0
