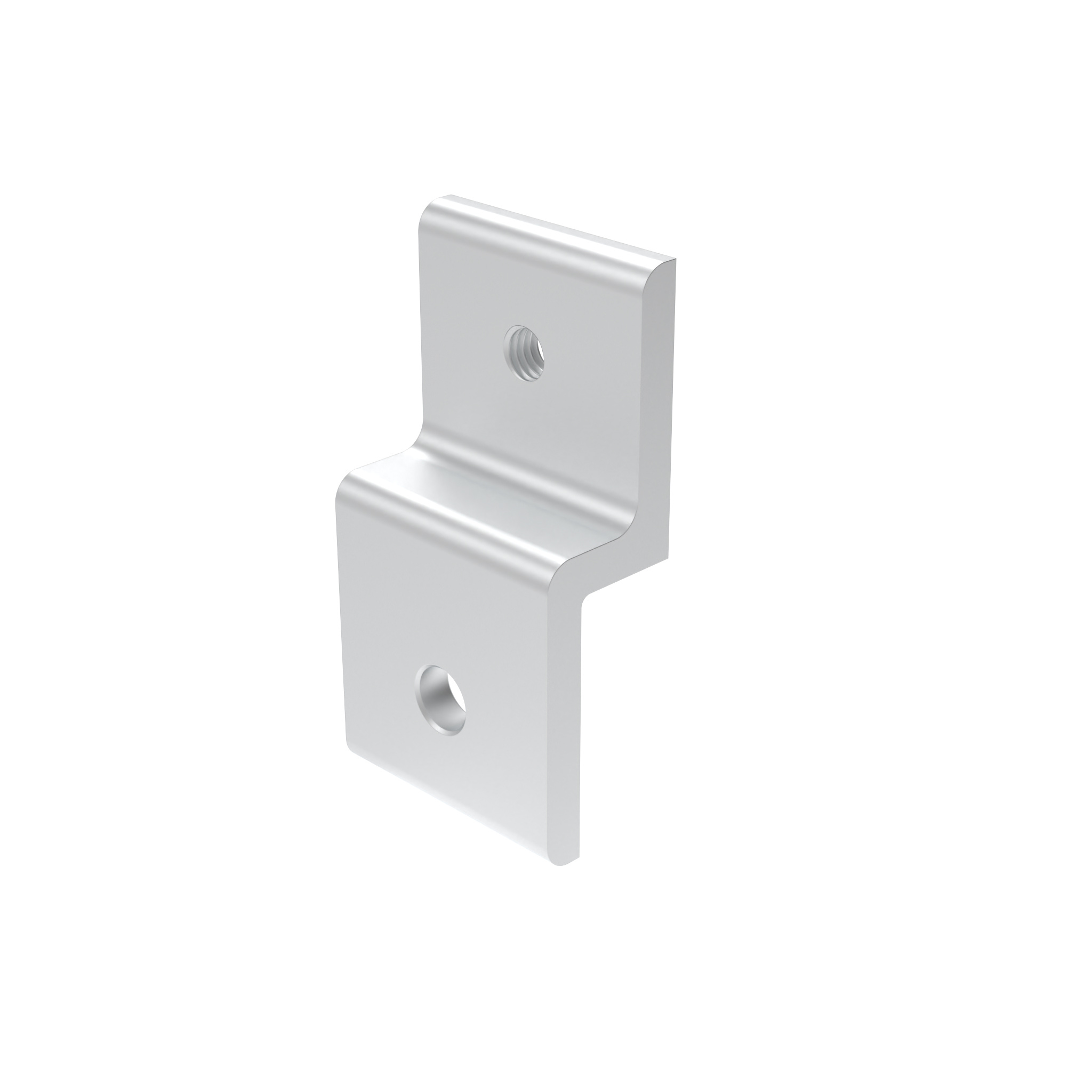

Panel Holder

Product information "Panel Holder"

Delivery Countries:
Worldwide

Description:
To attach panels easily to aluminum profiles

Material:
Aluminum

Surface:
Anodized

Zolltarifnummer:
76169990990

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360492
(ECLASS 12.0):	23360492
(ECLASS 13.0):	23360492
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	60.0

Variants

Product ID	A (mm)	H (mm)	ØD (mm)	T (mm)	S (mm)	t (mm)	Grid	B (mm)
093P20N	12.0	39.0	5.5	10.0	7.4	3.0	20	20.0
093P30N	23.0	68.0	9.0	15.0	11.0	6.0	30	30.0
093P40N	24.0	78.0	9.0	20.0	16.0	6.0	40	40.0
093P45N	26.5	88.0	9.0	22.5	17.5	6.0	45	45.0
