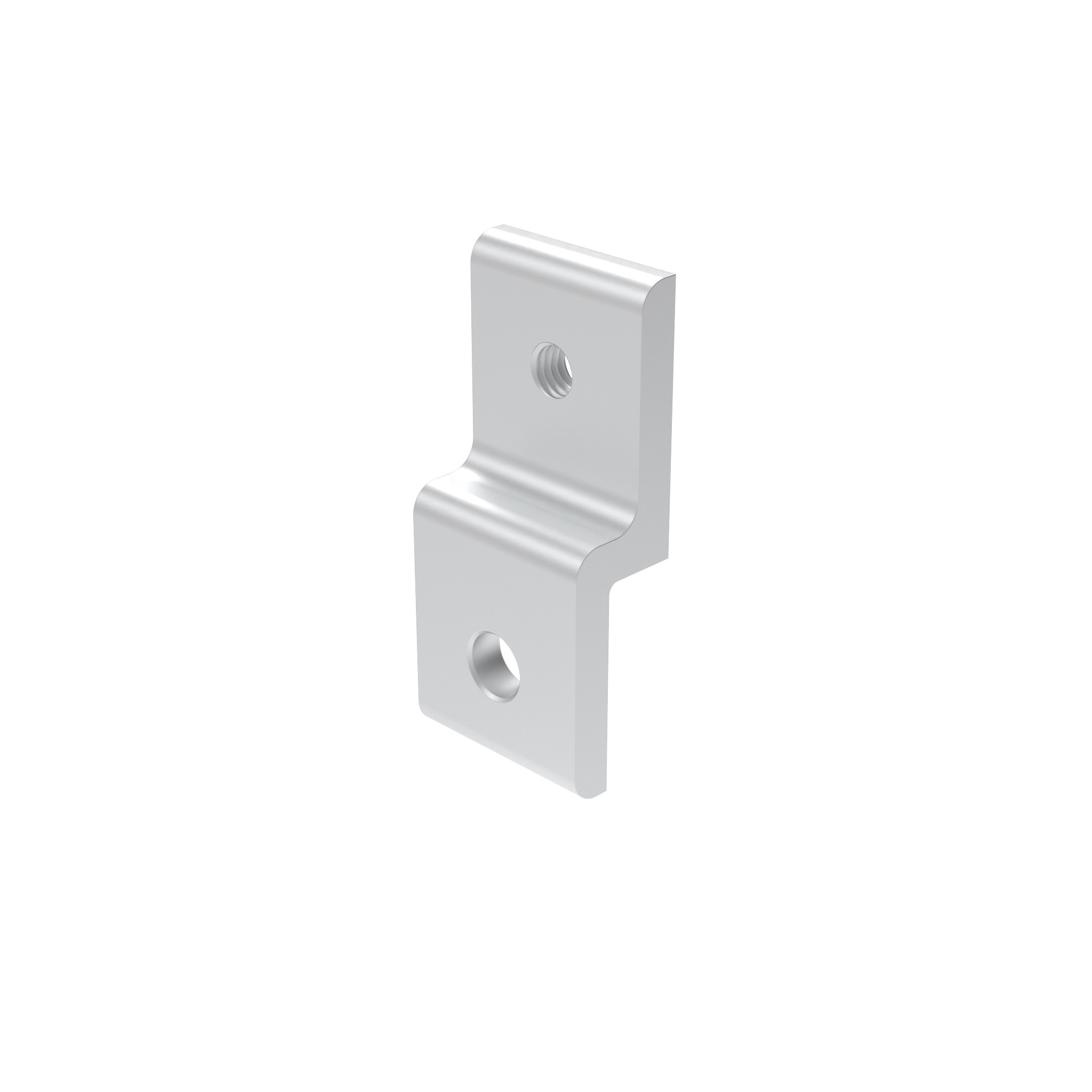

Panel Holder

Product information "Panel Holder"

Delivery Countries:
Worldwide

Description:
To attach panels easily to aluminum profiles

Material:
Aluminum

Surface:
Anodized

Profile Type	Profile Type B, Profile Type I
Modular Dimension	Modular Dimension 30
Application Area	Machinery & Plant Engineering

Part #	H (mm)	A (mm)	B (mm)	M	S (mm)	Modular Dimension (mm)	ØD (mm)	t (mm)	T (mm)
093P20N	39.0	12.0	20.0	M6	7.4	20	5.5	3.0	10.0
093P30N	68.0	23.0	30.0	M8	11.0	30	9.0	6.0	15.0
093P40N	78.0	24.0	40.0	M8	16.0	40	9.0	6.0	20.0
093P45N	88.0	26.5	45.0	M8	17.5	45	9.0	6.0	22.5
