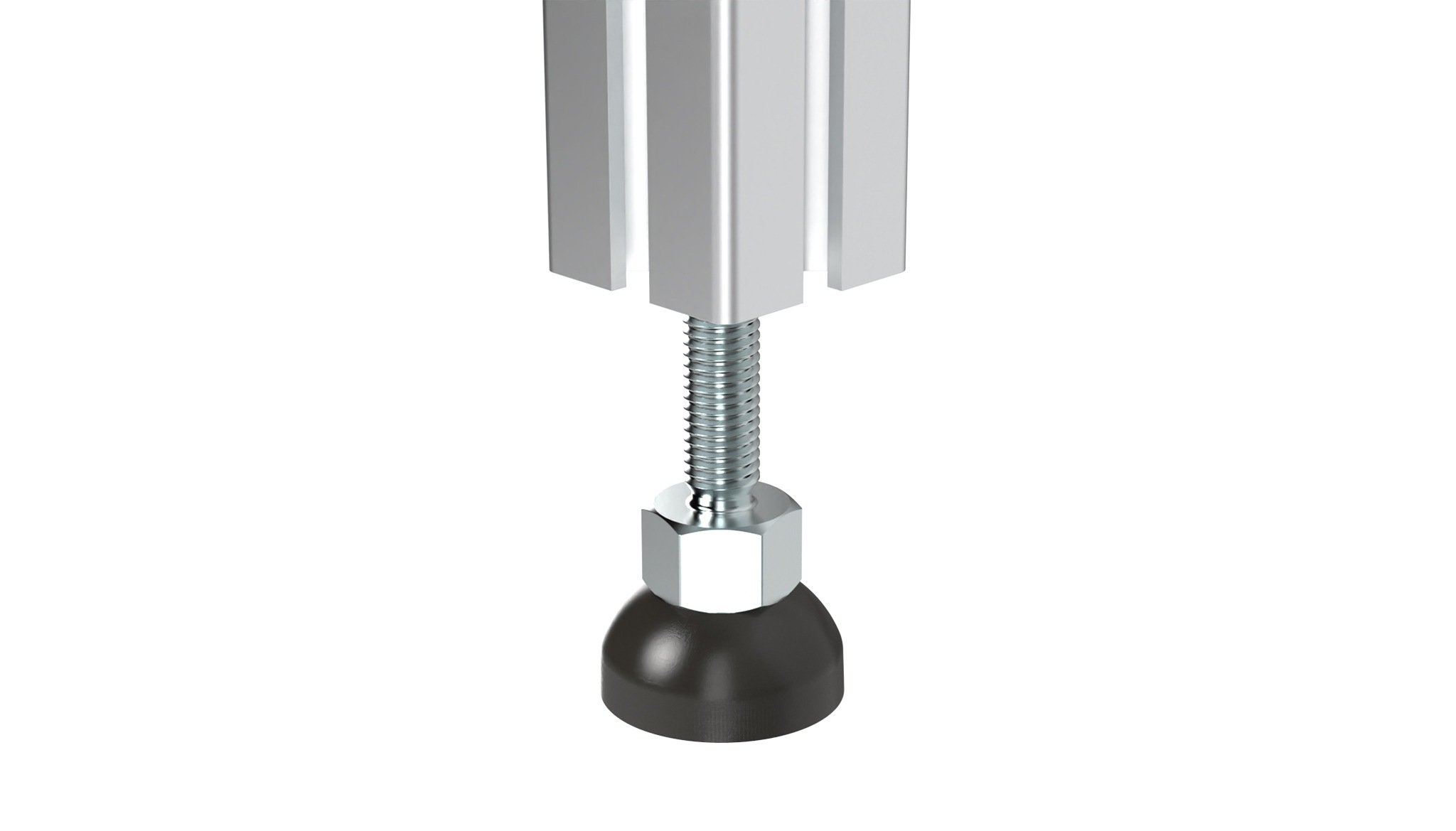

Pivot Foot, ZN / ST

Product information "Pivot Foot, ZN / ST"

Color:
Base: Black

Delivery Countries:
Worldwide

Description:
A leveling foot for strong positioning on slightly uneven floors

Material:
Base: Zinc die-cast
Threaded rod: Steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request

Surface:
Base: Powder coated
Threaded rod: Zinc plated

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.

Zolltarifnummer:
73269098900
Model: Zinc die-cast / steel, without bolt-down holes
Pack Quantity: 1 piece
Screw Joint: Swiveling range ±4°
Weight (g): 265.8

Variants

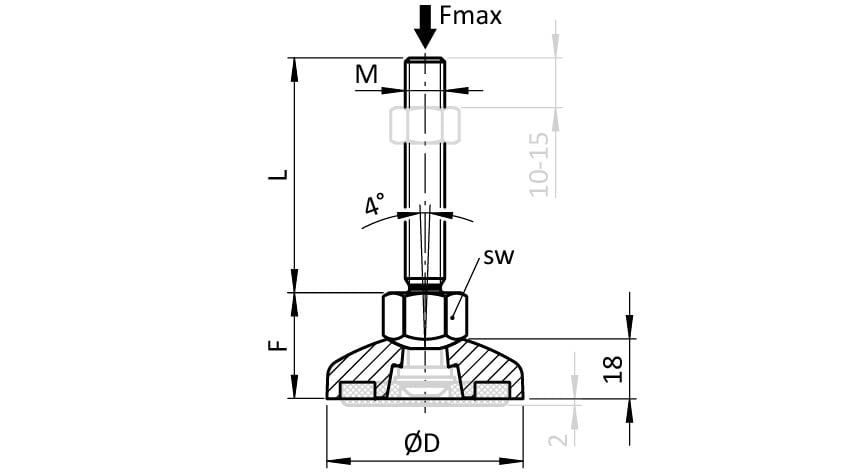

Product ID Fmax (N) Version F (mm) SW (mm) M x L (mm) Base D (mm) Feature
9A040ZS12100M 7550 without anti-slip plate 31 22 M12 x 100 40 39 Anti-slip plate not possible
9A060ZS12066M 7550 without anti-slip plate 31 22 M12 x 66 60 59
9A060ZS12100M 7550 without anti-slip plate 31 22 M12 x 100 60 59
9A100ZS24100M 34300 without anti-slip plate 31 24 M24 x 100 100 99
