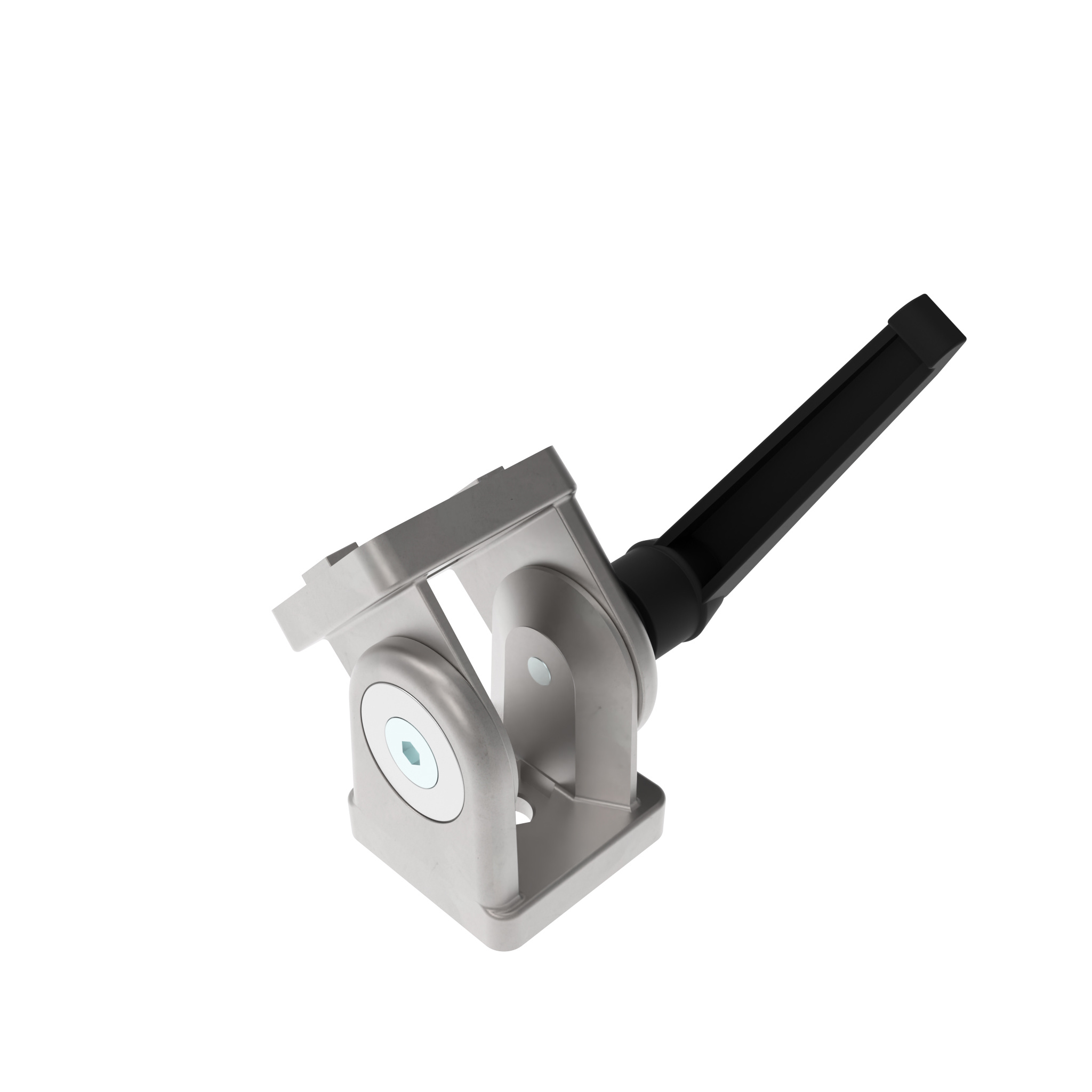

Pivot Joint 40 with Locking Lever
Regular price:
€0.00
Part #:
093GF40AN
Pack Quantity:
10 pieces
Product information "Pivot Joint 40 with Locking Lever"
Color:
Alu color
Delivery Countries:
Worldwide
Description:

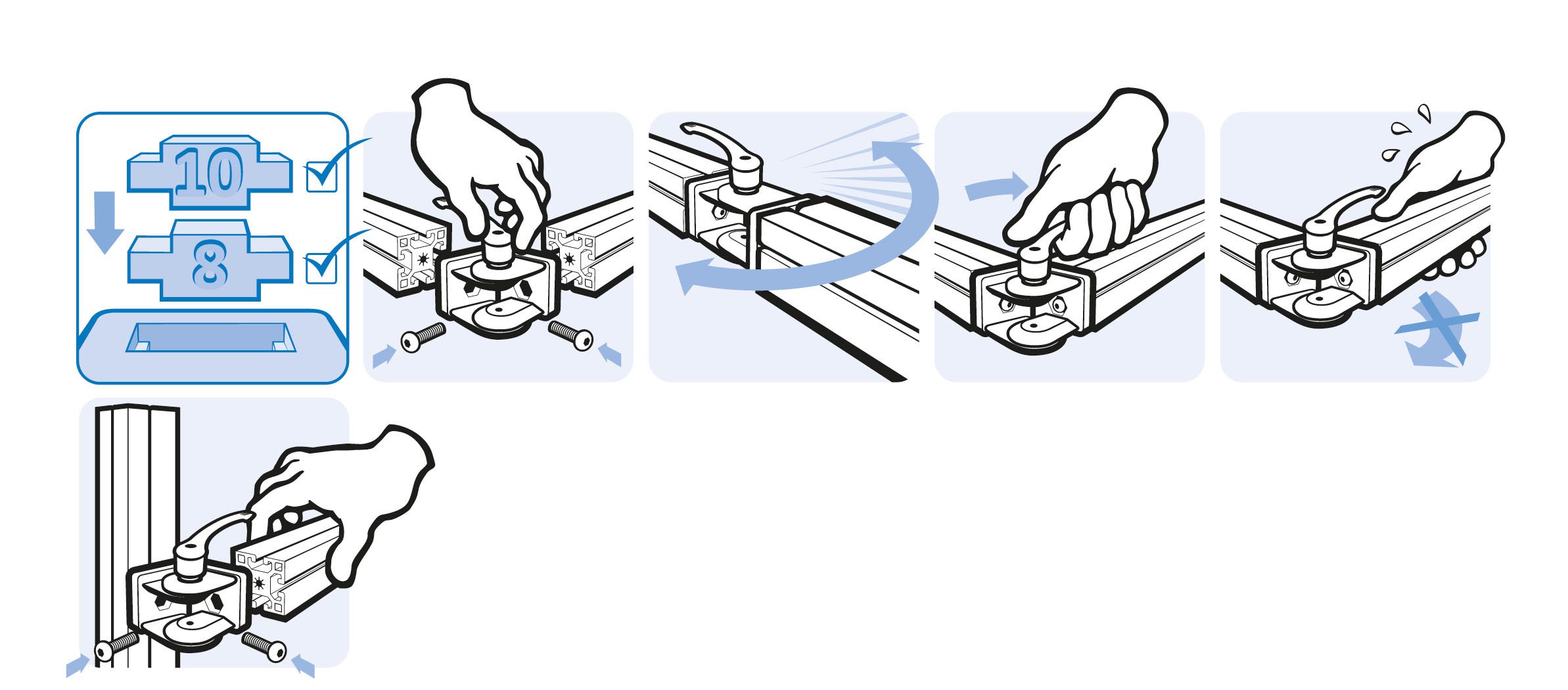

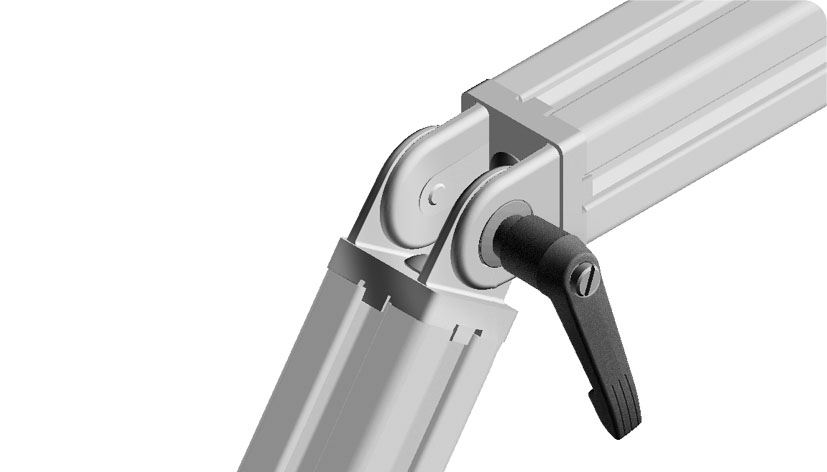

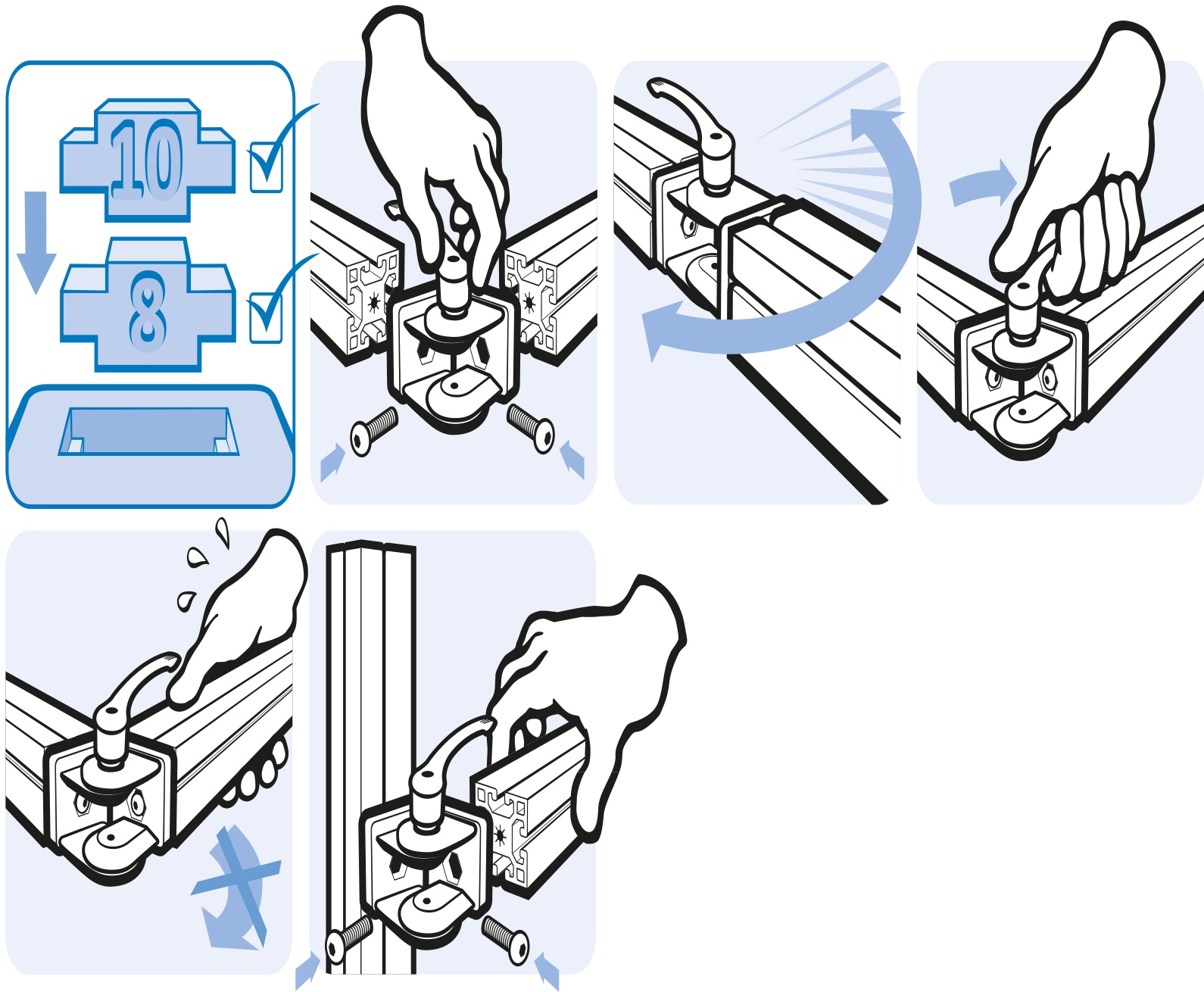

To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
Material:
Joint: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Alu color
Delivery Countries:
Worldwide
Description:
To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
Material:
Joint: Zinc die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
Specials:
Other surfaces, other colors on request
Surface:
Powder coated
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
| Profile Type: | Profile Type B, Profile Type I |
|---|---|
| Slot Size: | Slot 8, Slot 10 |
| Application Area: | Machinery & Plant Engineering |
| Pack Quantity: | 10 pieces |
| Model: | Zinc die-cast |
| Weight (g): | 338.0 |
| ERP Number: | 100680 |
Classifications
- ECLASS 6.0
- 23360301
- ECLASS 7.0
- 23360301
- ECLASS 8.0
- 23360301
- ECLASS 9.0
- 23360301
- ECLASS 10.0
- 23360301
- ECLASS 11.0
- 23360301
- ECLASS 12.0
- 23360301
- ECLASS 13.0
- 23360301
- Zolltarifnummer
- 79070000900
- Customs Tariff Number Export
- 79070000
Certificates
