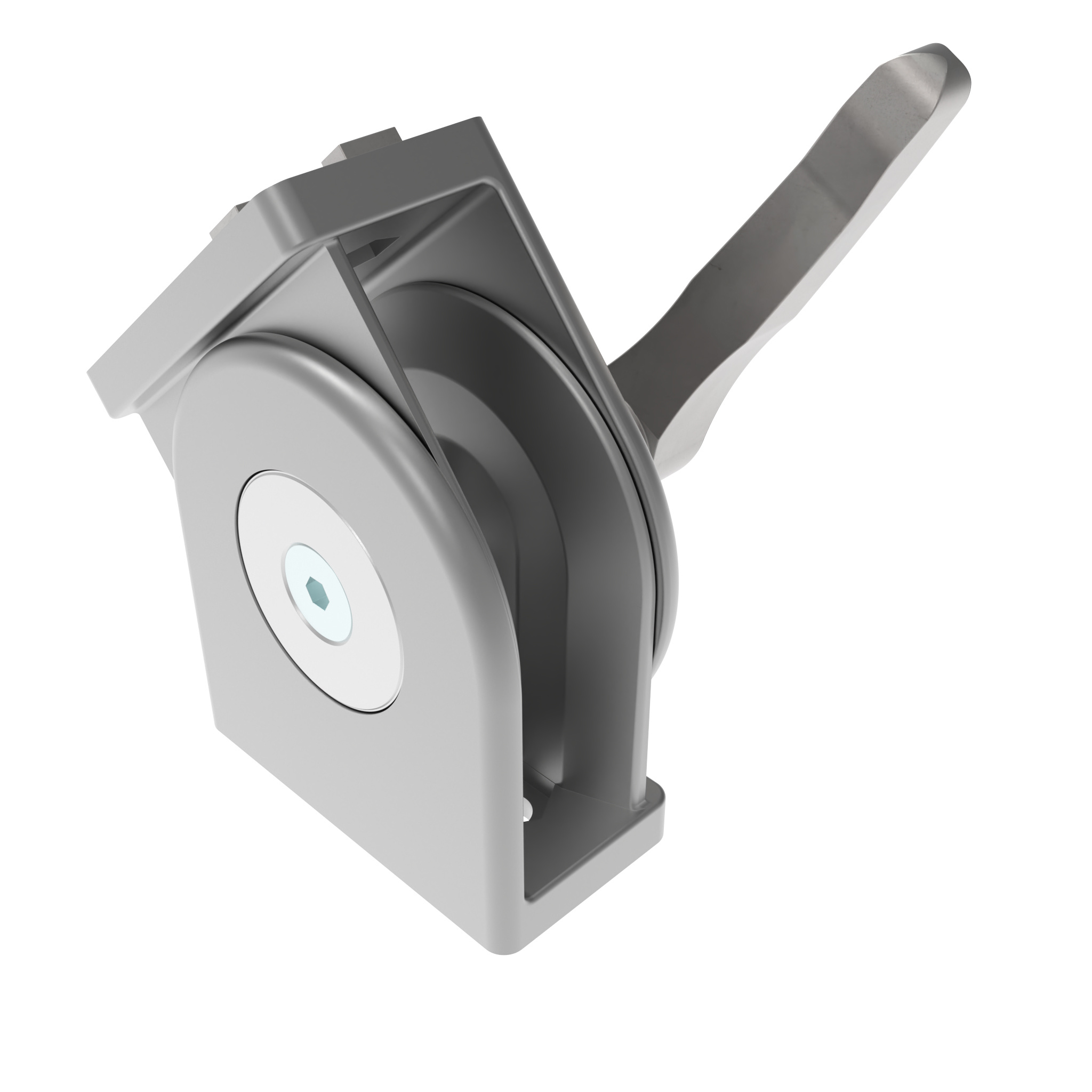

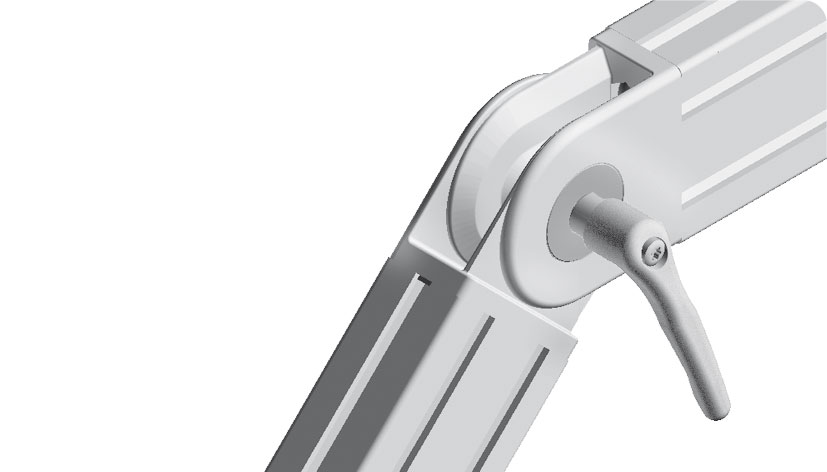

Pivot Joint 40 x 80 with Locking Lever

Product information "Pivot Joint 40 x 80 with Locking Lever"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

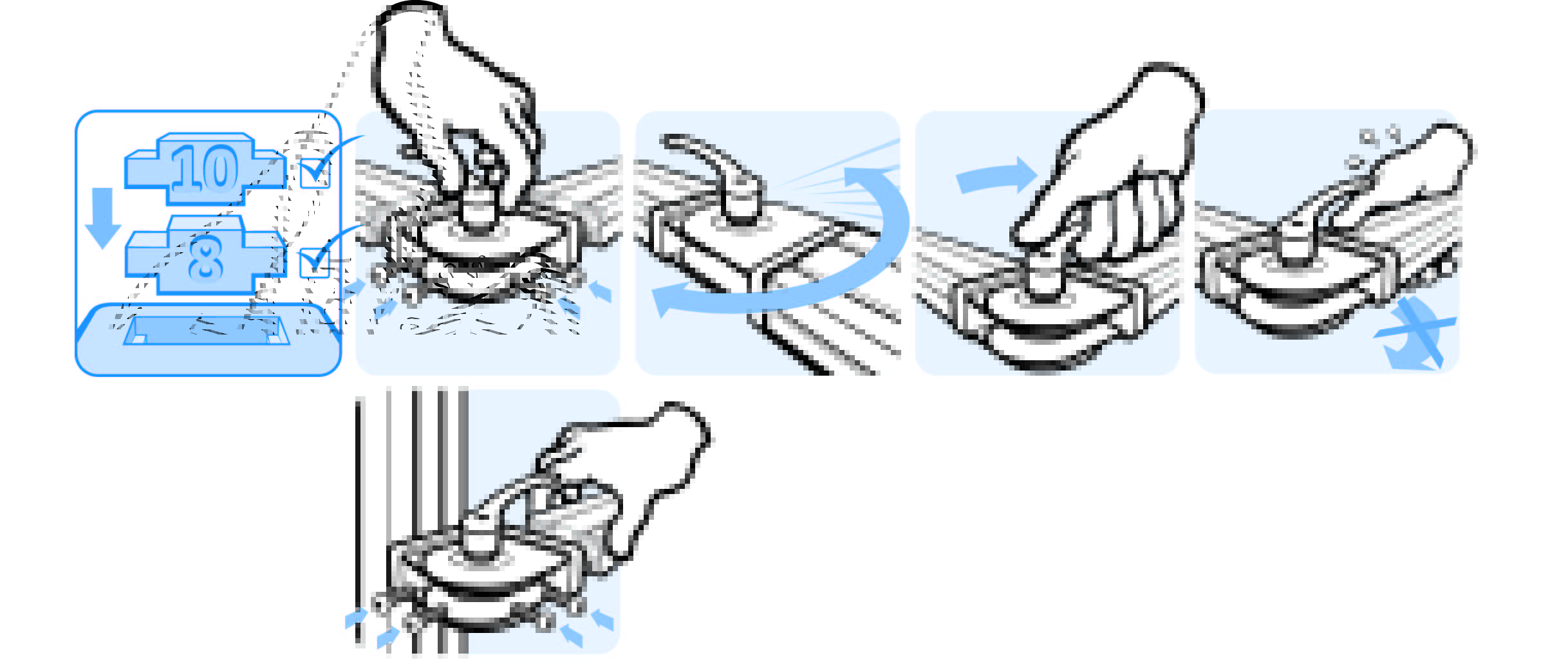

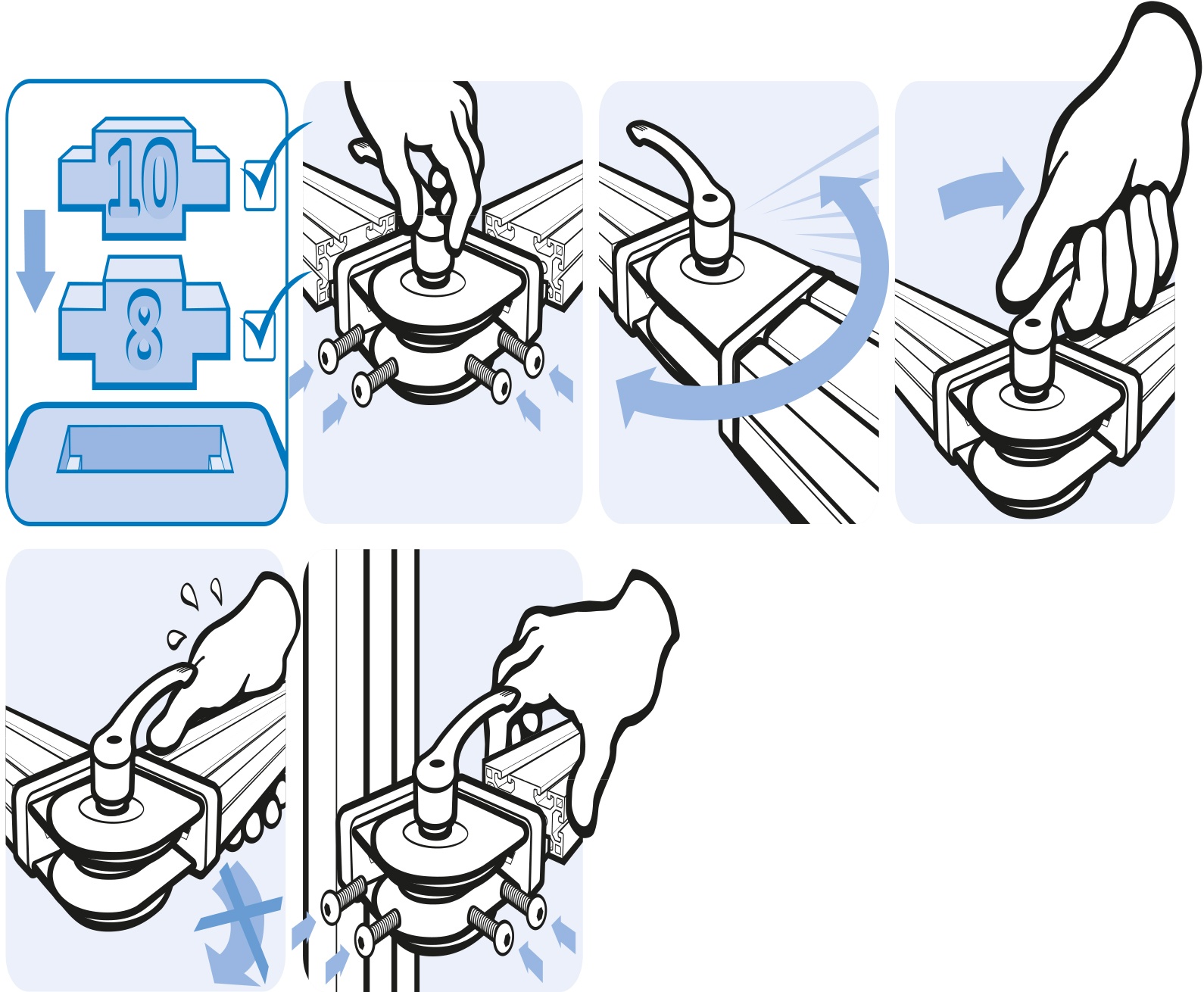

To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Joint: Aluminum die-cast
KIPP-locking lever: Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Joint: Powder coated
KIPP-locking lever: silver metallic plastic coated

Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Model: Aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 542.1

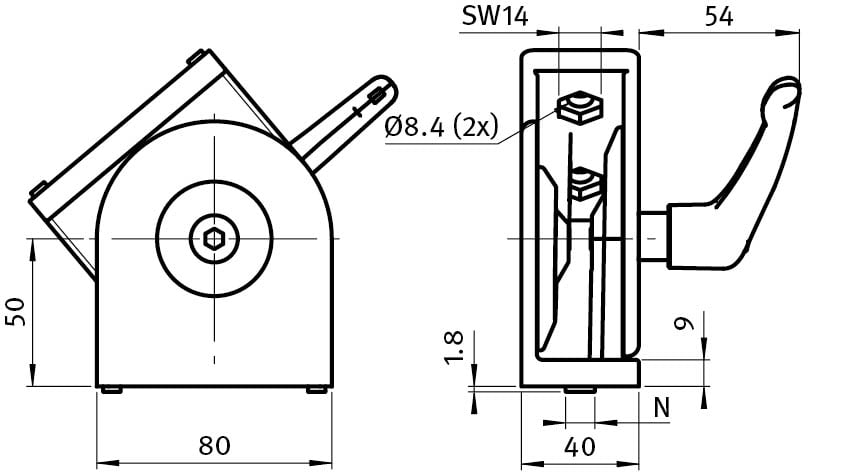

Variants

Product ID Slot N (mm) Opening Angle
093GAF4080AN 8 / 10 184°
