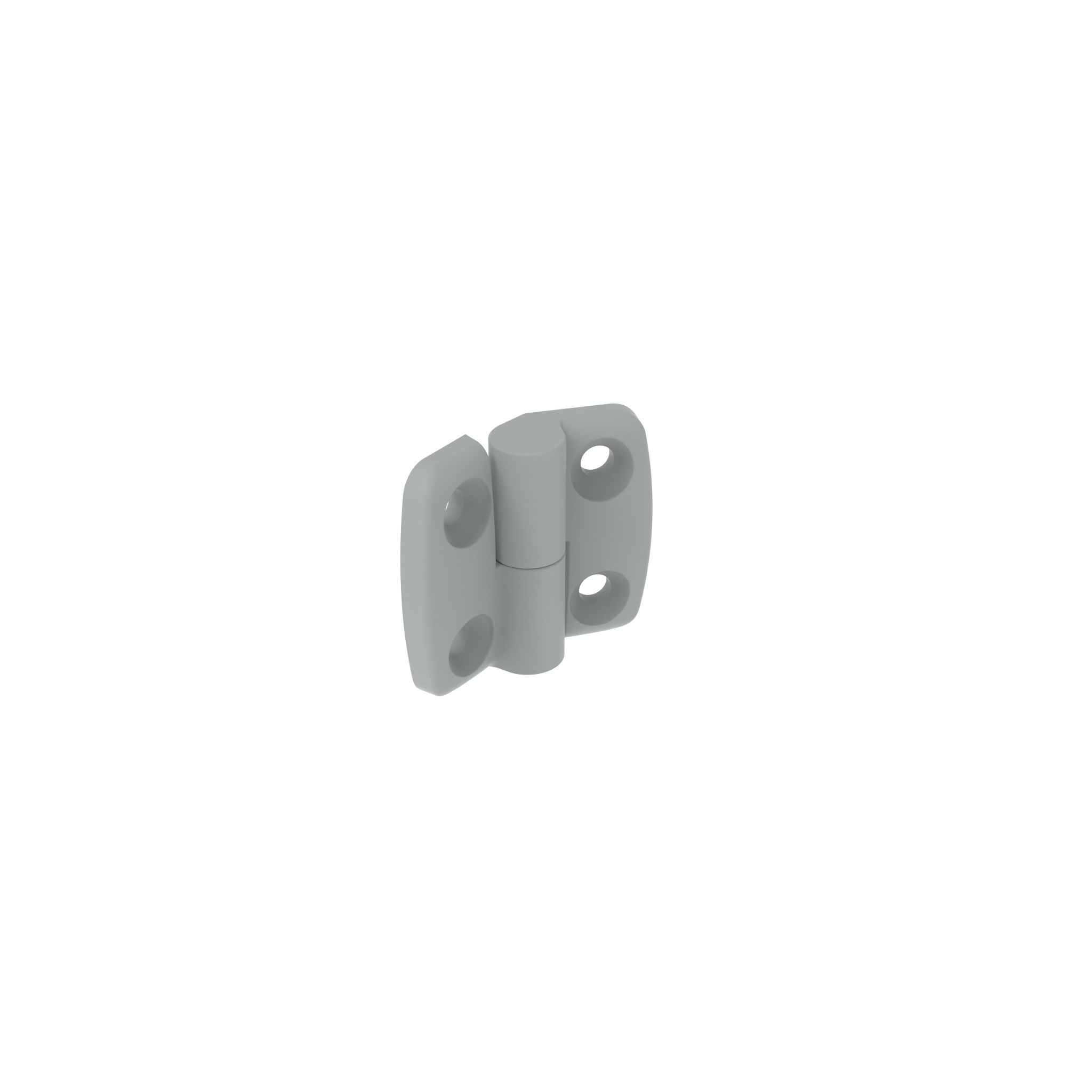

Plastic Combi Hinge 25, Detachable, Gray

Product information "Plastic Combi Hinge 25, Detachable, Gray"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

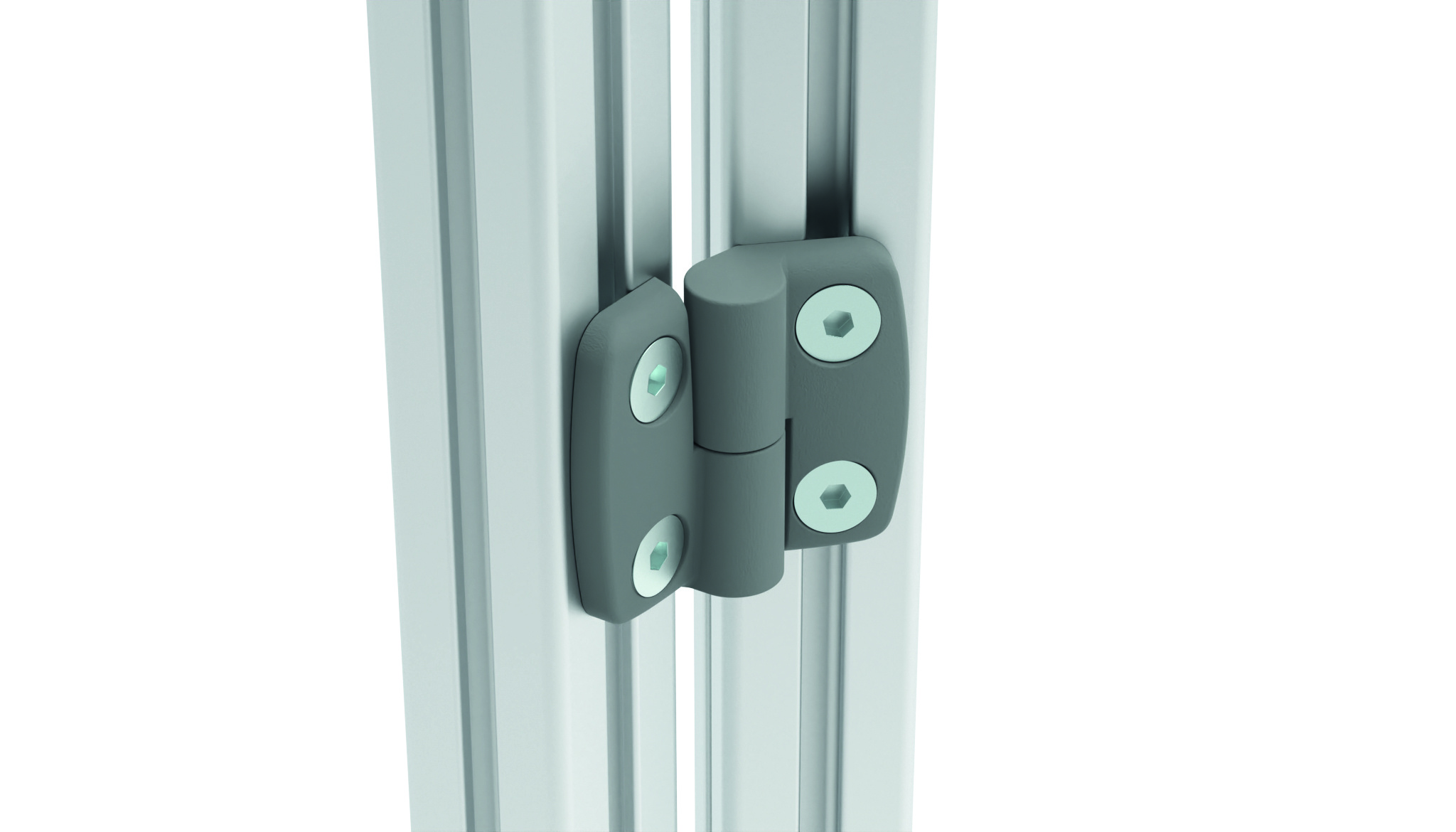

To hinge panels or aluminum profiles

Fastening:
From the front, using M6 countersunk screws

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
Further colors, centering pins for installation on aluminum profiles available on request

Pack Quantity:	10 pieces

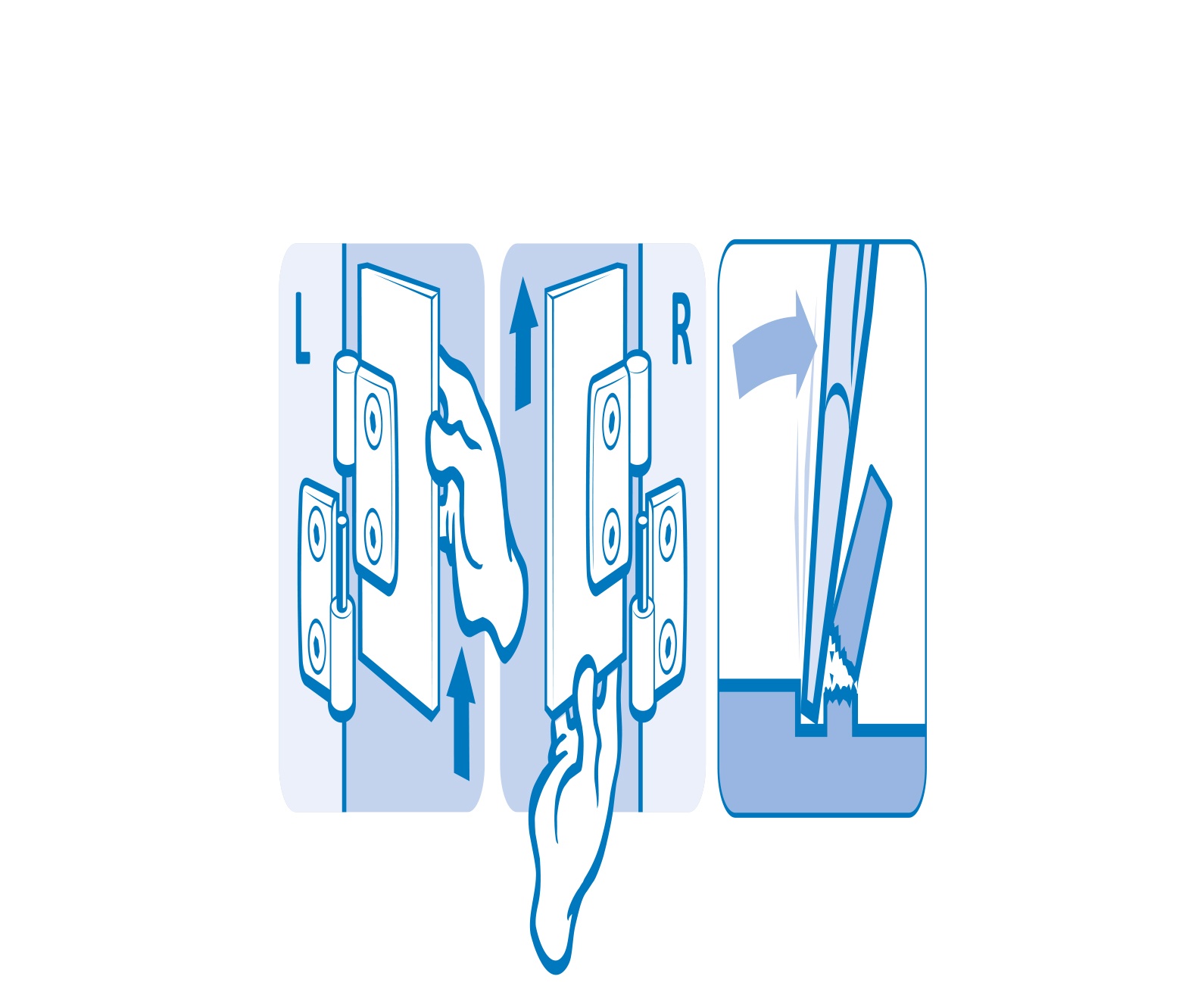

Model:	Detachable
Weight (g):	31.0
ERP Number:	140926

Variants

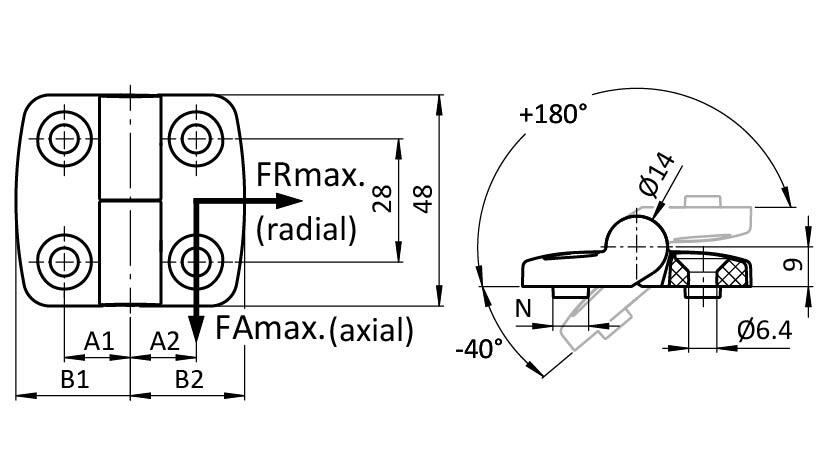

Part #	Version	Slot N (mm)	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095K2525L00S05	L: Left	-	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2525L06S02	L: Left	6	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2525R00S03	R: Right	-	26.0	26.0	25 / 25	425	625	15.0	15.0
095K2525R06S02	R: Right	6	26.0	26.0	25 / 25	425	625	15.0	15.0
