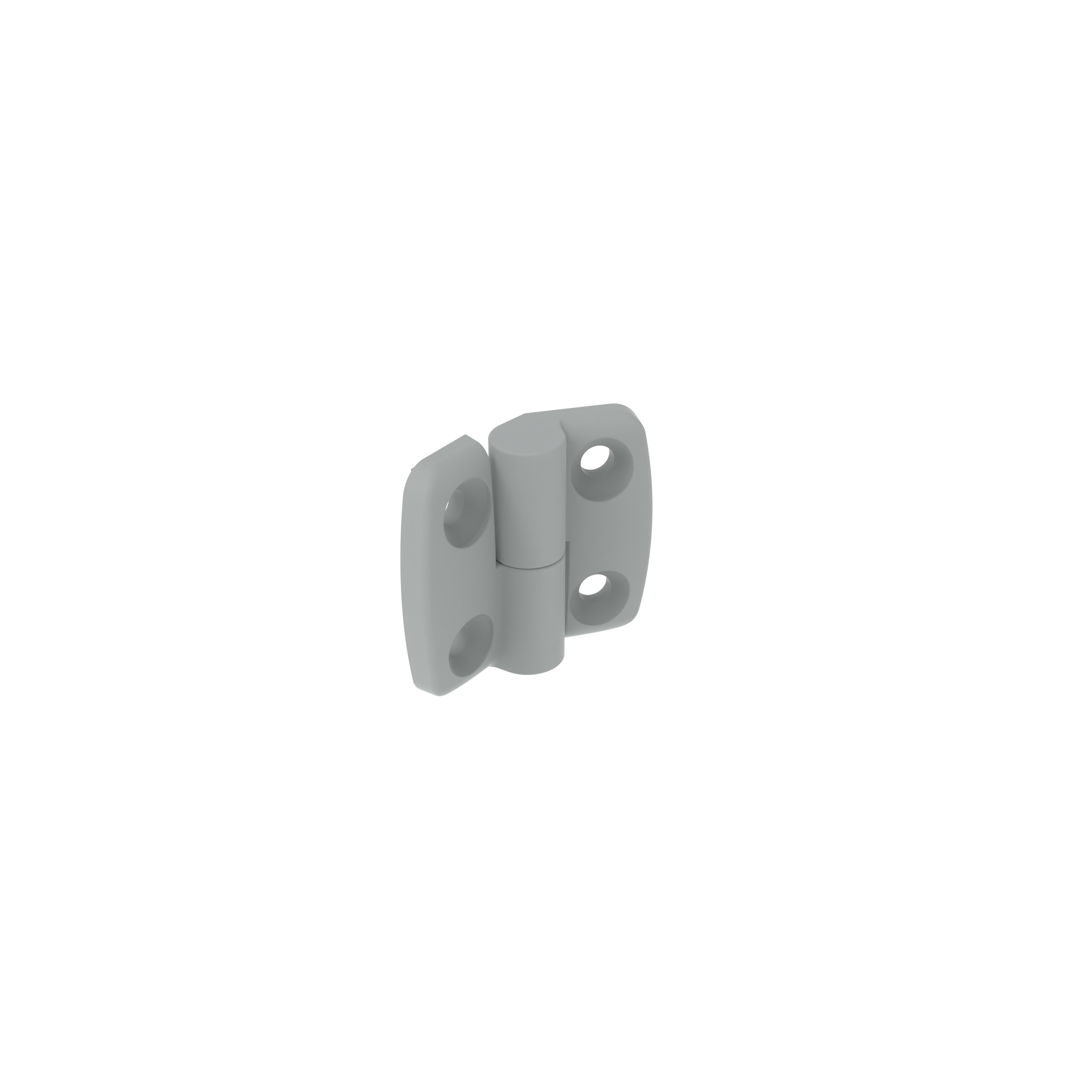

Plastic Combi Hinge 25, Detachable, Gray

Product information "Plastic Combi Hinge 25, Detachable, Gray"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
Further colors, centering pins for installation on aluminum profiles available on request

Zolltarifnummer:
39263000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 31.0

Variants

Product ID FRmax (N) B2 (mm) B1 (mm) FAmax (N) A2 (mm) Version Slot N (mm) Combination A1 (mm)
095K2525L00S05 625 26.0 26.0 425 15.0 L: Left 25 / 25 15.0
095K2525L06S02 625 26.0 26.0 425 15.0 L: Left 6 25 / 25 15.0
095K2525R00S03 625 26.0 26.0 425 15.0 R: Right 25 / 25 15.0
095K2525R06S02 625 26.0 26.0 425 15.0 R: Right 6 25 / 25 15.0
