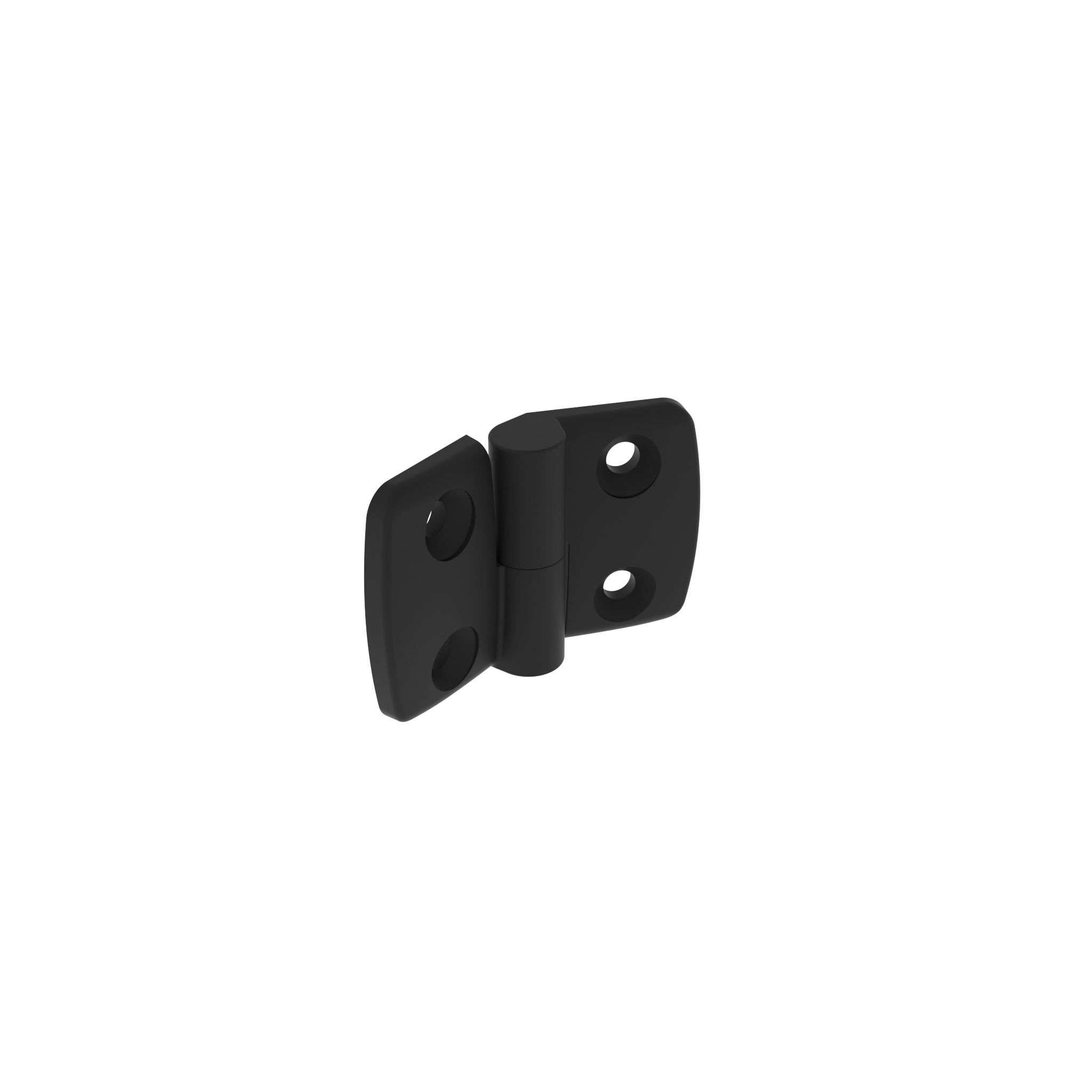

Plastic Combi Hinge 35, Detachable, Black

Skip image gallery

€0.00*

Prices excl. VAT plus shipping costs

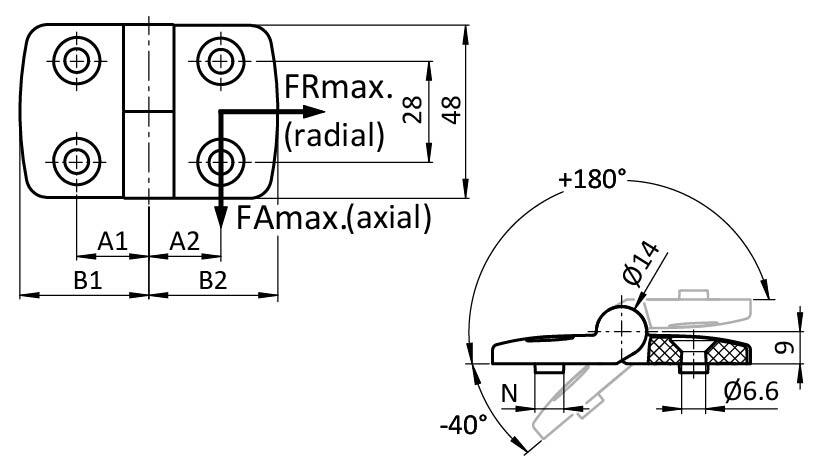

A1 (mm)
A2 (mm)
B1 (mm)
B2 (mm)
Combination
FAmax (N)
FRmax (N)
Slot N (mm)
Version
Part #: 095K3535L00

Product information "Plastic Combi Hinge 35, Detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

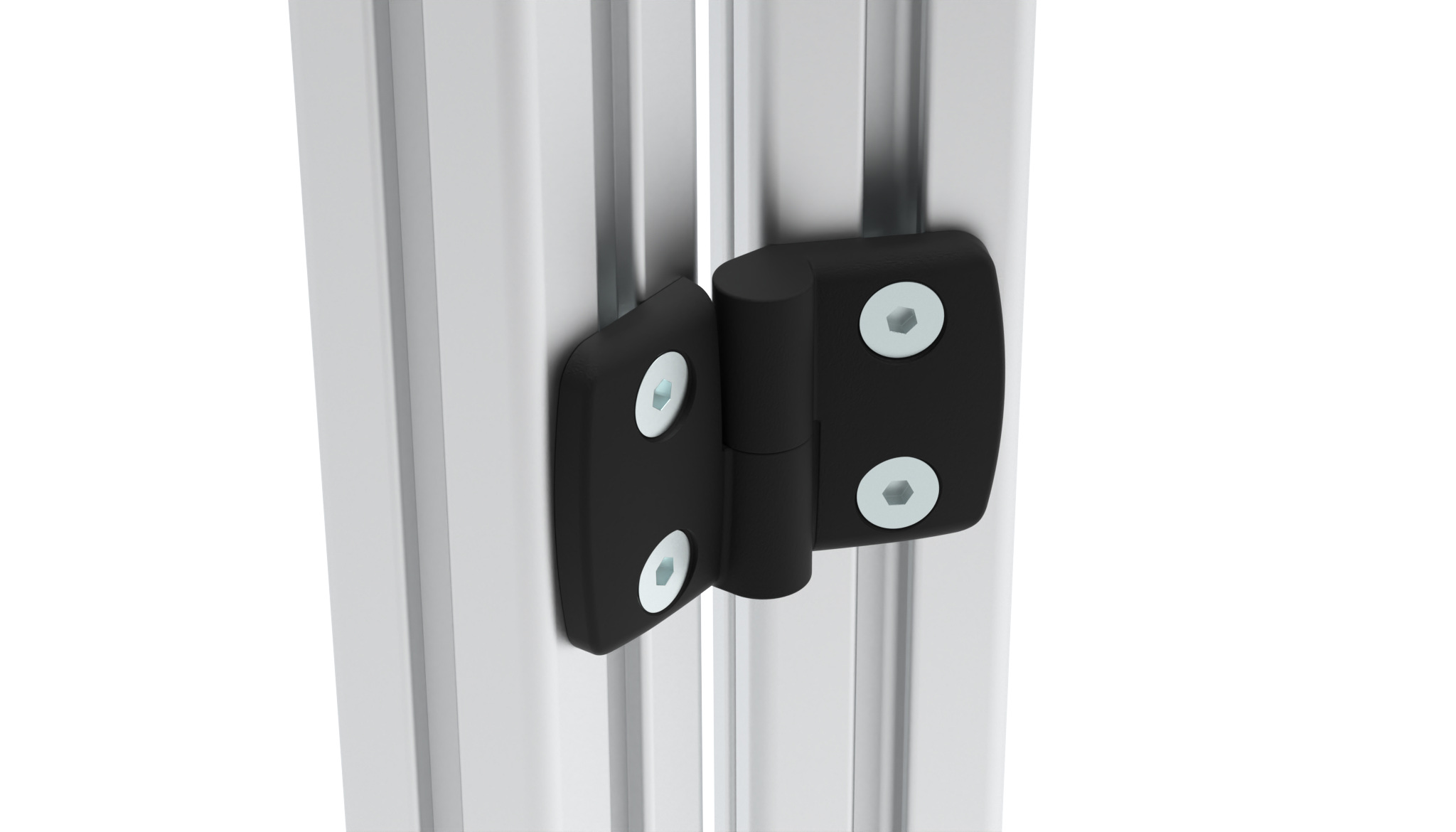

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 39263000
ERP Number: 101843
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 38.0
Zolltarifnummer: 39263000900

Variants

Product ID A1 (mm) FAmax (N) FRmax (N) B1 (mm) Slot N (mm) Version B2 (mm) A2 (mm) Combination
095K3525L00 20.0 400 750 36.0 L: Left 26.0 15.0 35 / 25
095K3530R00 17.5 750 29.5 R: Right 36.0 20.0 35 / 30
095K3535L00 20.0 400 750 36.0 L: Left 36.0 20.0 35 / 35
095K3535L08 20.0 400 750 36.0 8 L: Left 36.0 20.0 35 / 35
095K3535R00 20.0 400 750 36.0 R: Right 36.0 20.0 35 / 35
095K3535R08 20.0 400 750 36.0 8 R: Right 36.0 20.0 35 / 35
095K3535R10 20.0 400 750 36.0 10 R: Right 36.0 20.0 35 / 35
095K3540L00 20.0 350 36.0 L: Left 38.5 22.5 35 / 40
095K3560L00 20.0 36.0 L: Left 57.5 32.5 35 / 60
095K3560R00 32.5 57.5 R: Right 36.0 20.0 35 / 60

CAD Downloads

Product Portraits

Combi Hinges

Combi Hinges

FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

To Product Portrait
