Plastic Combi Hinge 35, Detachable, Black

Product information "Plastic Combi Hinge 35, Detachable, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

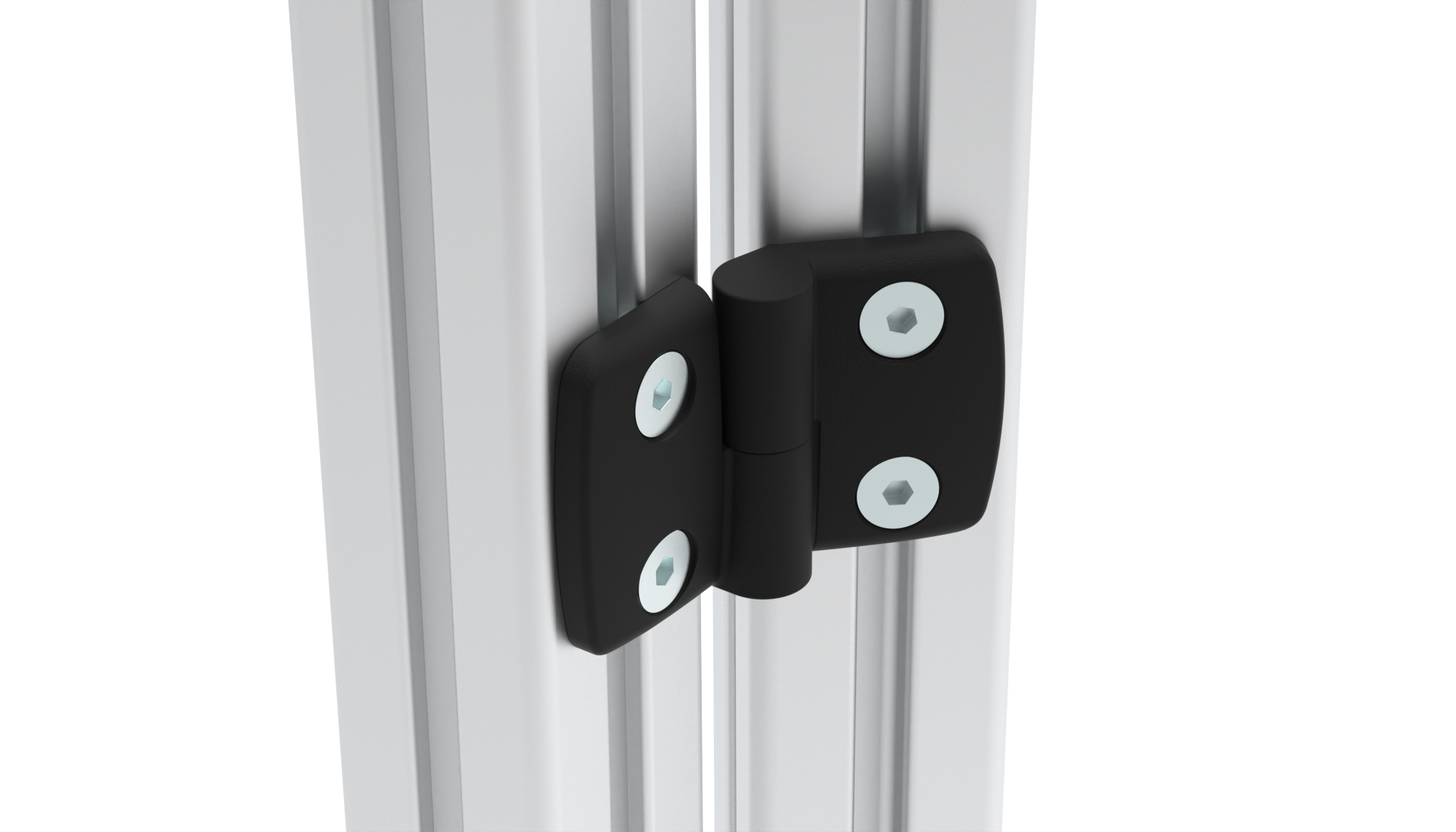

To hinge panels or aluminum profiles

Fastening:
From the front, using M6 countersunk screws

Material:
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request

Pack Quantity:	10 pieces
Model:	Detachable
Weight (g):	42.0
ERP Number:	101867

Variants

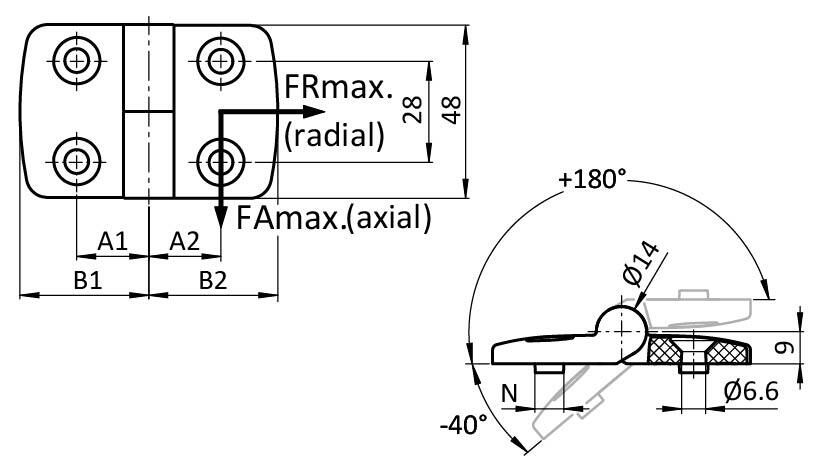

Part #	Version	Slot N (mm)	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095K3535L00	L: Left	-	36.0	36.0	35 / 35	400	750	20.0	20.0
095K3535L08	L: Left	8	36.0	36.0	35 / 35	400	750	20.0	20.0
095K3540L00	L: Left	-	36.0	38.5	35 / 40	350	800	20.0	22.5
095K3560L00	L: Left	-	36.0	57.5	35 / 60	240	800	20.0	32.5
095K3535R00	R: Right	-	36.0	36.0	35 / 35	400	750	20.0	20.0
095K3535R08	R: Right	8	36.0	36.0	35 / 35	400	750	20.0	20.0
095K3535R10	R: Right	10	36.0	36.0	35 / 35	400	750	20.0	20.0
095K3525L00	L: Left	-	36.0	26.0	35 / 25	400	750	20.0	15.0
095K3530R00	R: Right	-	29.5	36.0	35 / 30	500	750	17.5	20.0
095K3560R00	R: Right	-	57.5	36.0	35 / 60	240	800	32.5	20.0
095K3545L00	L: Left	-	36.0	43.5	35 / 45	350	800	20.0	25.0

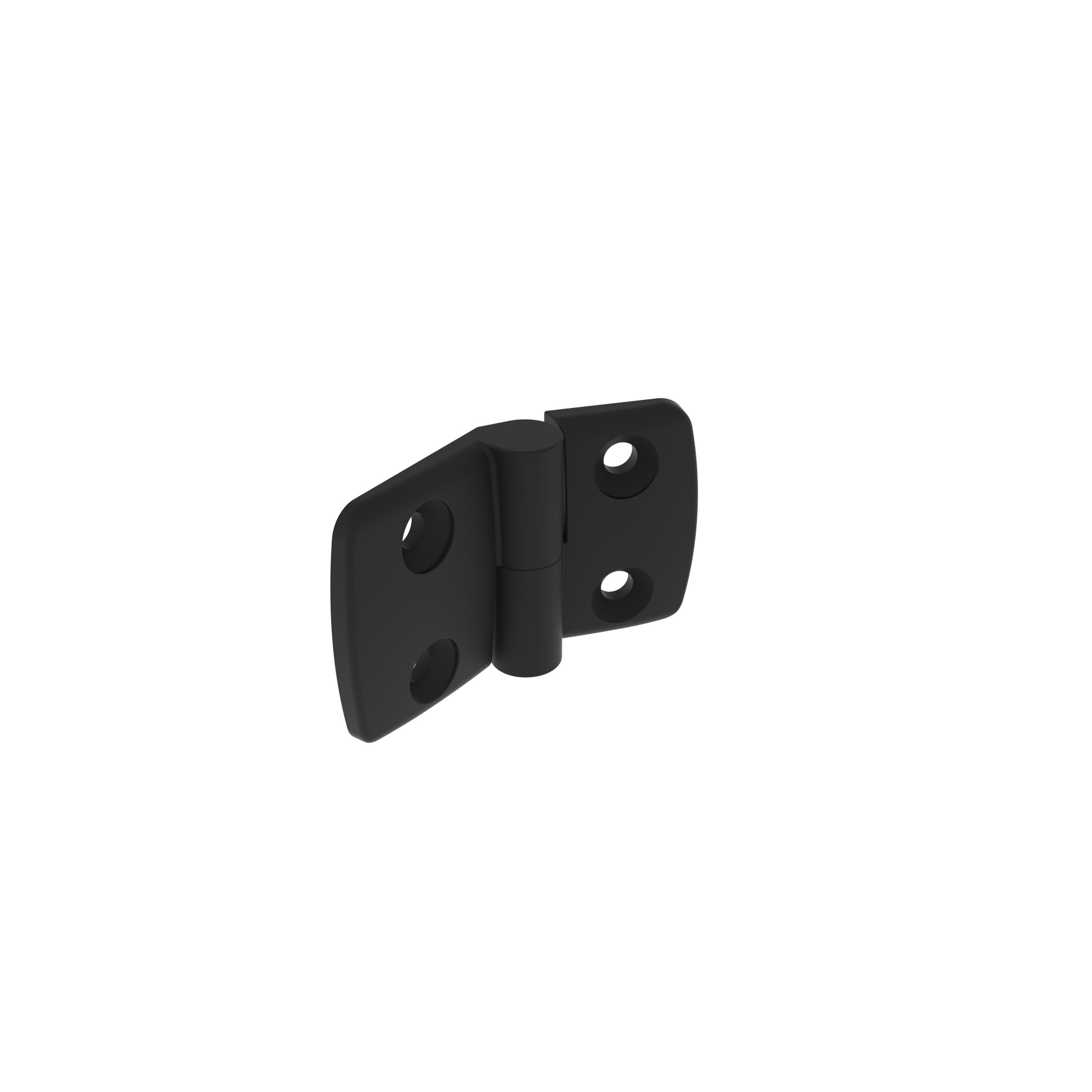

095K3545R00	R: Right	-	43.5	36.0	35 / 45	350	800	25.0	20.0
