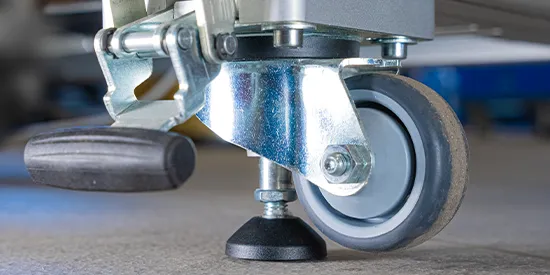

Swivel and Fixed Casters with Lifting Foot

The Lifting Foot is an ingenious combination of a FATH leveling foot with a Blickle swivel caster. Permanently mounted, it facilitates the frequent relocation of machines and devices on industrial floors, without any need for additional handling equipment, and without tools or assembly.
Filter products
–

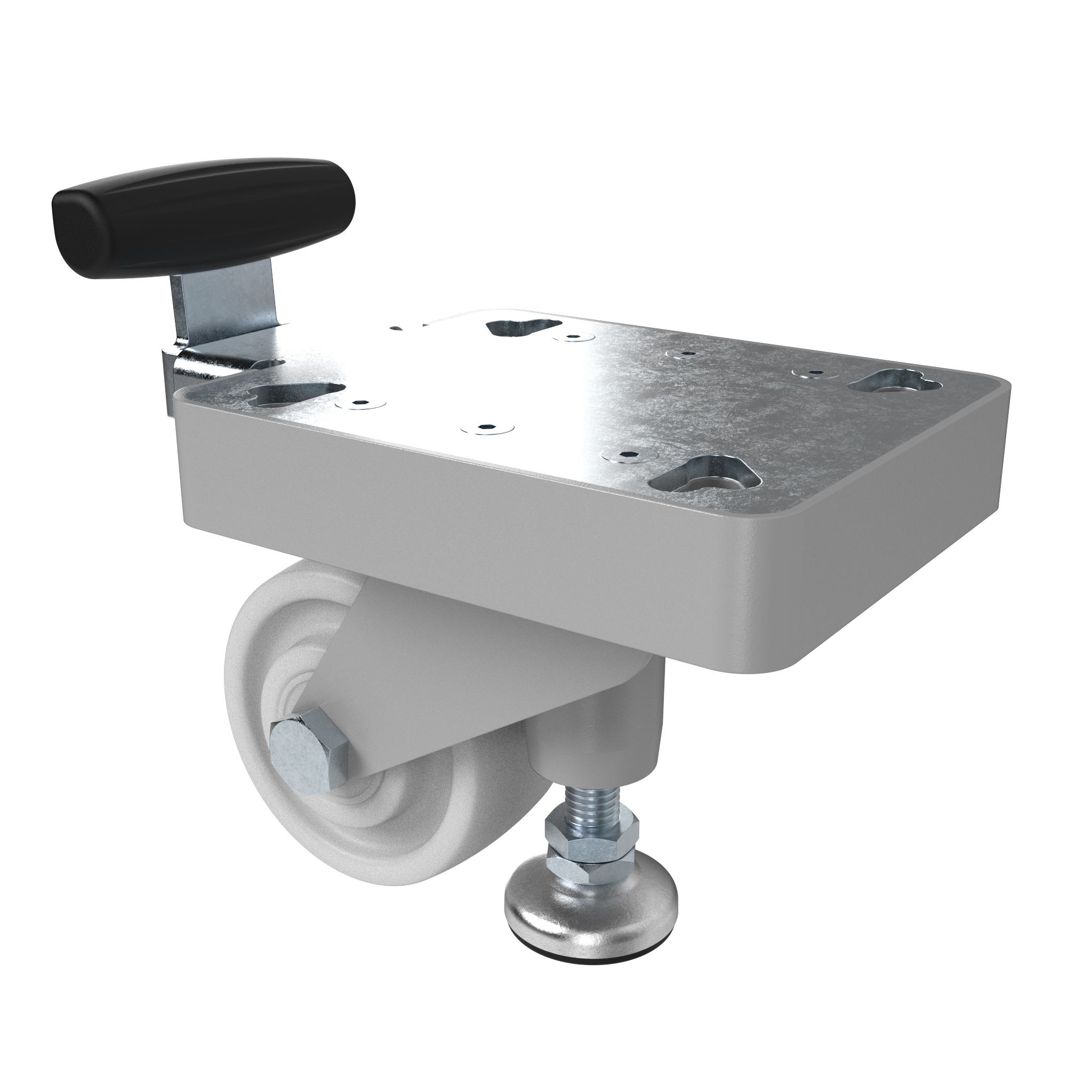

Fixed Caster with Lifting Foot
€0.00*
D (mm):
80
|
ESD:
-
|
Fixed Caster Tread:
PU, yellow
|
H (mm):
125
|
Max. Load (N):
1800
|
Wheel Body:
Aluminum die-cast, silver gray
Color:Housing: Alu color Tread: See table Wheel body: See table Foot pedal: BlackDelivery Countries:WorldwideDescription:Reliable and quiet fixed caster, trackless With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the fixed caster housingMaterial:Die-cast aluminum / steel Thread: See table Wheel body: See table Mounting plate: Steel Leveling foot: Steel / zinc / TPE Foot pedal: Plastic PUR / steelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated / zinc plated Mounting plate: Zinc plated Leveling foot: Zinc plated Foot pedal: Zinc platedZolltarifnummer:73269098900

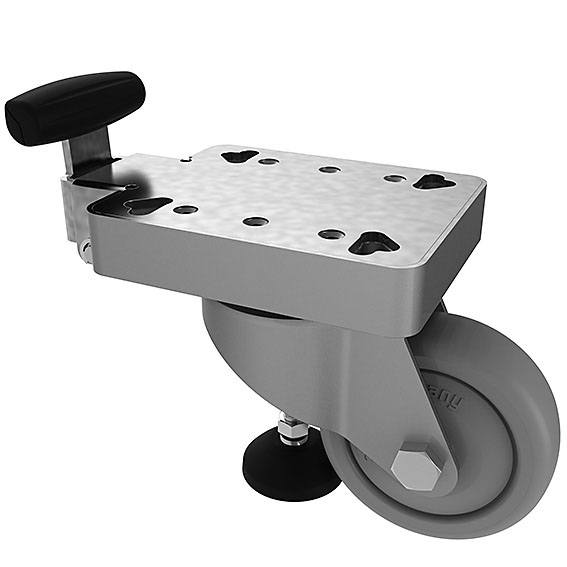

Swivel Caster with Lifting Foot
€0.00*
D (mm):
100
|
ESD:
-
|
H (mm):
145.0
|
Max. Load (N):
2500
|
Swivel Caster Tread:
PA, white
|
Wheel Body:
PA, natural white
Color:Housing: Alu color Tread: See table Wheel body: See table Foot pedal: BlackDelivery Countries:WorldwideDescription:Reliable and quiet swivel caster, trackless With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang No additional transport and base plate needed; Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the swivel caster housingMaterial:Die-cast aluminum / steel Thread: See table Wheel body: See table Mounting plate: Steel Leveling foot: Steel / zinc / TPE Foot pedal: Plastic PUR / steelSpecials:Other kinds of wheels, other colors, other surfaces on requestSurface:Housing: Powder coated / zinc plated Mounting plate: Zinc plated Leveling foot: Zinc plated Foot pedal: Zinc plated
