Product Portrait


Alu Connection Angle M (Set)

Connect aluminum profiles quickly and easily with the FATH Alu Connection Angle M (Set)

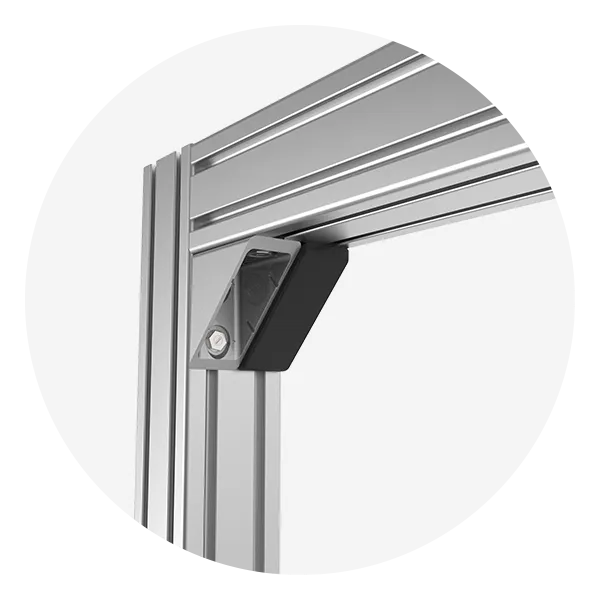

It doesn‘t get any faster than this! The FATH Alu Connection Angle M is the convenient angle for lightning-fast right angle connection of aluminum profiles. Installation is a cinch, as the convenient profile connectors are completely pre-assembled. You no longer need any additional assembly material such as T-slot nuts and screws.

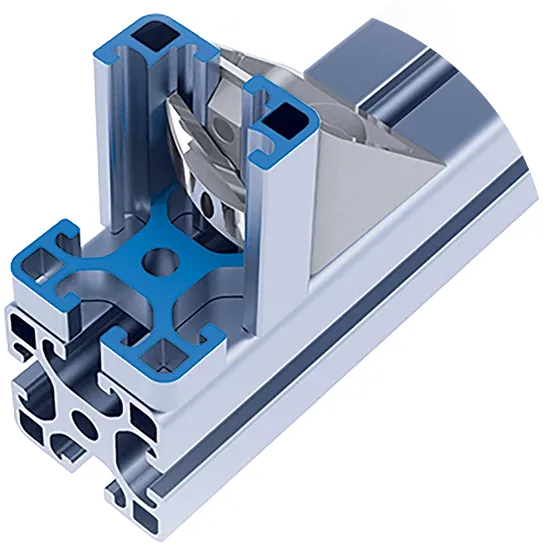

Thanks to the innovative use of magnet technology – there are tiny magnets inside – the rhombus screws are always correctly positioned and can be inserted directly into the profile slot. Pre-adjustment is no longer necessary. This magnet technology from FATH is patent-pending. For profile constructions where the slot of a profile is to be moved in a different direction, FATH Alu Connection Angle M is available in versions that allow a 90° rotation of the rhombus screws.

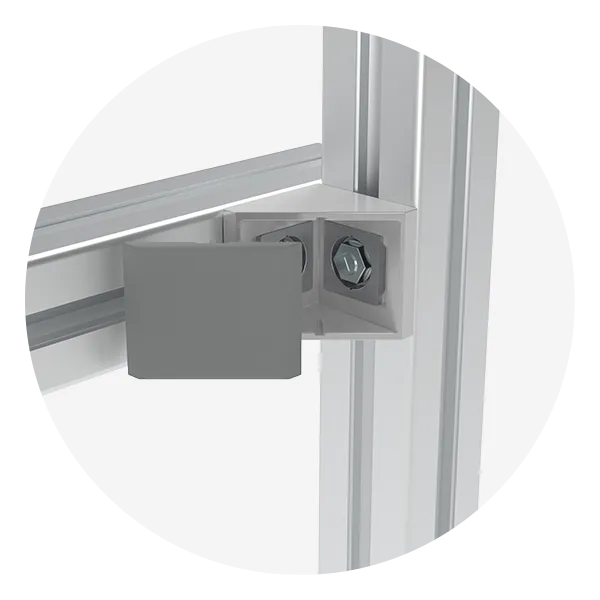

Simply place the FATH Alu Connection Angle M with pre-assembled magnet rhombus screws on the profiles with slot 8, tighten the nuts – done! The aluminum profiles are already firmly connected to one another.

Icon-Plus-white.svg?ts=1743167971 HIGHLIGHTS

  • Quick installation: put on, tighten, done
  • Rhombus screws always correctly positioned by magnets
  • Completely pre-assembled components for immediate use
  • Suitable for the profile modular dimensions 40 slot 8
  • Versions available for 90° rotation of the profile slot

Assembly: Quick and easy like never before

You only need a single tool for assembly: a socket wrench SW13-3/8“. That saves a lot of time! With the FATH Alu Connection Angle M (Set), you can connect aluminum profiles about 10 times faster compared to conventional angles.

The open sides of the FATH Connection Angle M (Set) can be closed with the matching cover cap. Cover caps are available separately in gray, matching the anodized aluminum profile surface, and black and are easily inserted into the FATH Alu Connection Angle M (Set).

A strong point: use as a reinforcing element

Since the FATH Alu Connection Angle M (Set) extends the support width of the frame structure, it is also suitable for reinforcing rectangular profile connections. This means that higher moment loads are possible without additional profile processing. Several angles can also be mounted in parallel for this purpose.


Icon-Additional-Plus-grey.svg?ts=1743005262 Another plus:

The FATH Alu Connection Angle M (Set) can compensate for errors and tolerances in the profile cross section.

Practical: FATH Alu Connection Angle M (Set) can be used again and again

The FATH Alu Connectionn Angle M (Set) can be dismantled in seconds at any time and reused as often as you like for new connections. The assembly and disassembly of profile structures is quick and effortless. This also makes the angle sets the perfect companion for mobile constructions.

WOULD YOU LIKE TO FIND OUT ABOUT OTHER ALU Connection angles?

Here you will find various sizes and matching Cover Caps.


To Alu Connection Angles

VERSIONS

Skip product gallery

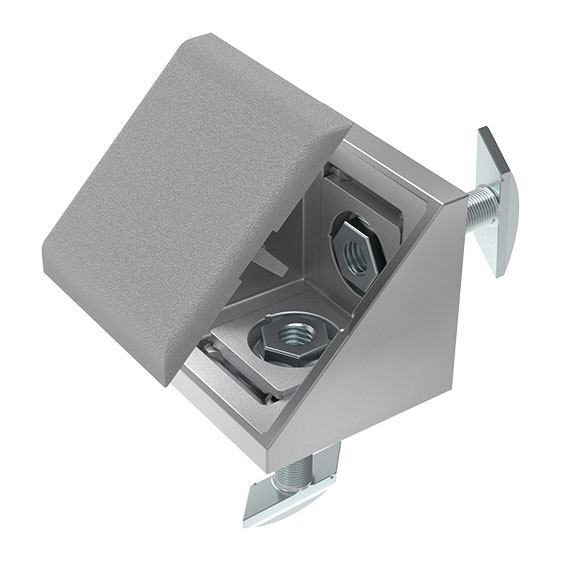

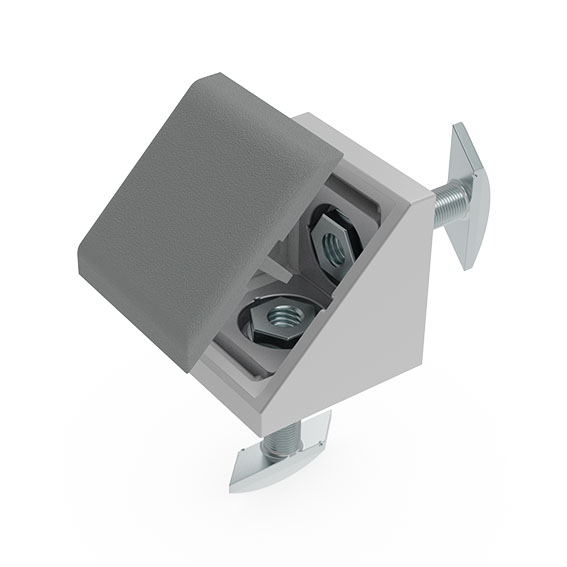

Alu Connection Angle I40 M Length/Cross (Set)
Profile: I | Slot N (mm): 8
Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169910990

€0.00*
Alu Connection Angle I40 M Length/Cross (Set)
Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169910990

€0.00*

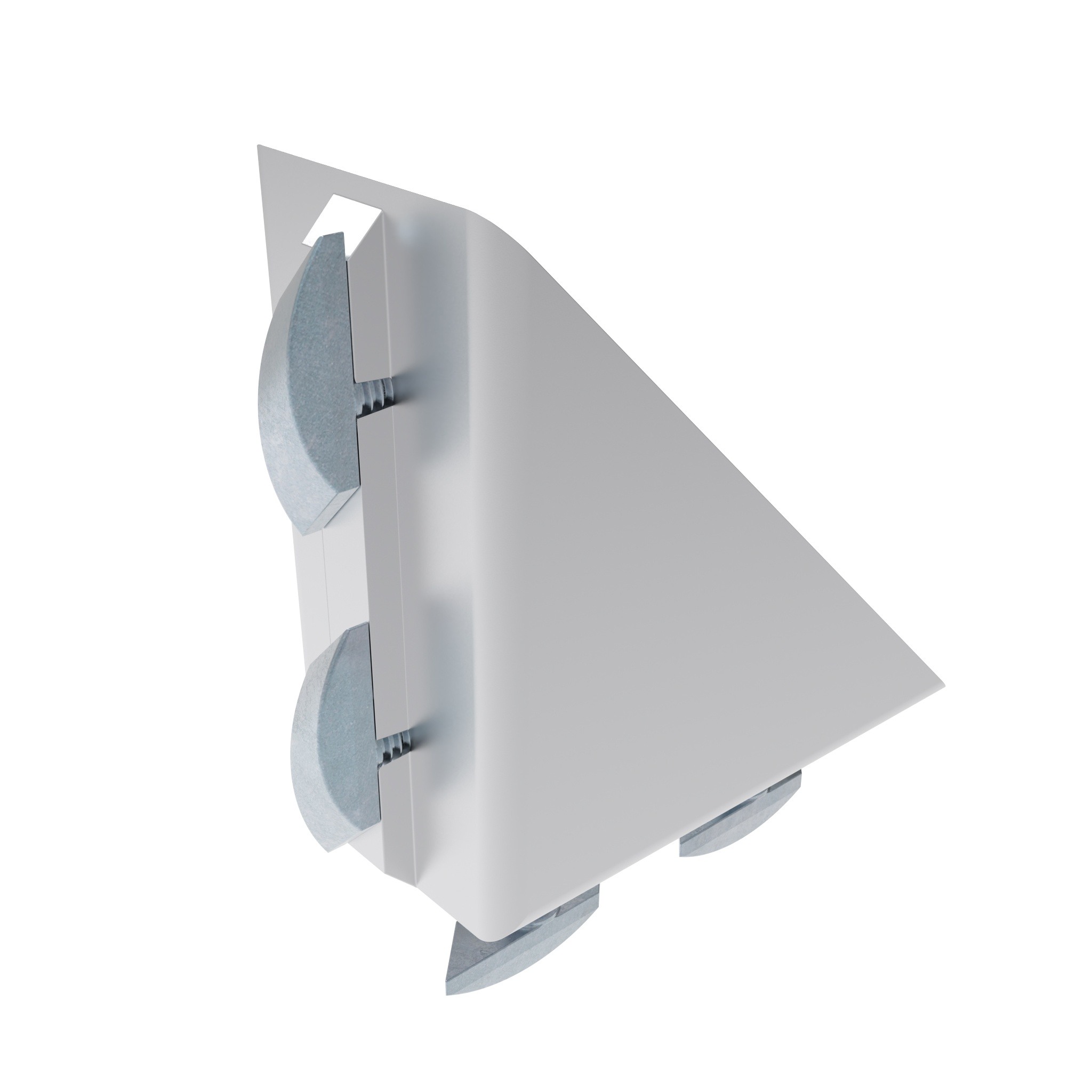

Alu Connection Angle I40 x 80 M (Set)
Profile: I | Slot N (mm): 8
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809Zolltarifnummer:76169910990

€0.00*
Alu Connection Angle 40 x 80 x 160 (Set)
Color:Angle: Alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws ISO 7380 - M8 x 16 4 square washersSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Screws and T-nuts: Zinc platedZolltarifnummer:76169910990

€0.00*
Alu Connection Angle B45 M Length/Cross (Set)
Profile: B | Slot N (mm): 10
Color:Angle: Alu color Cover cap: Gray≈ RAL 7004 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169910990

€0.00*

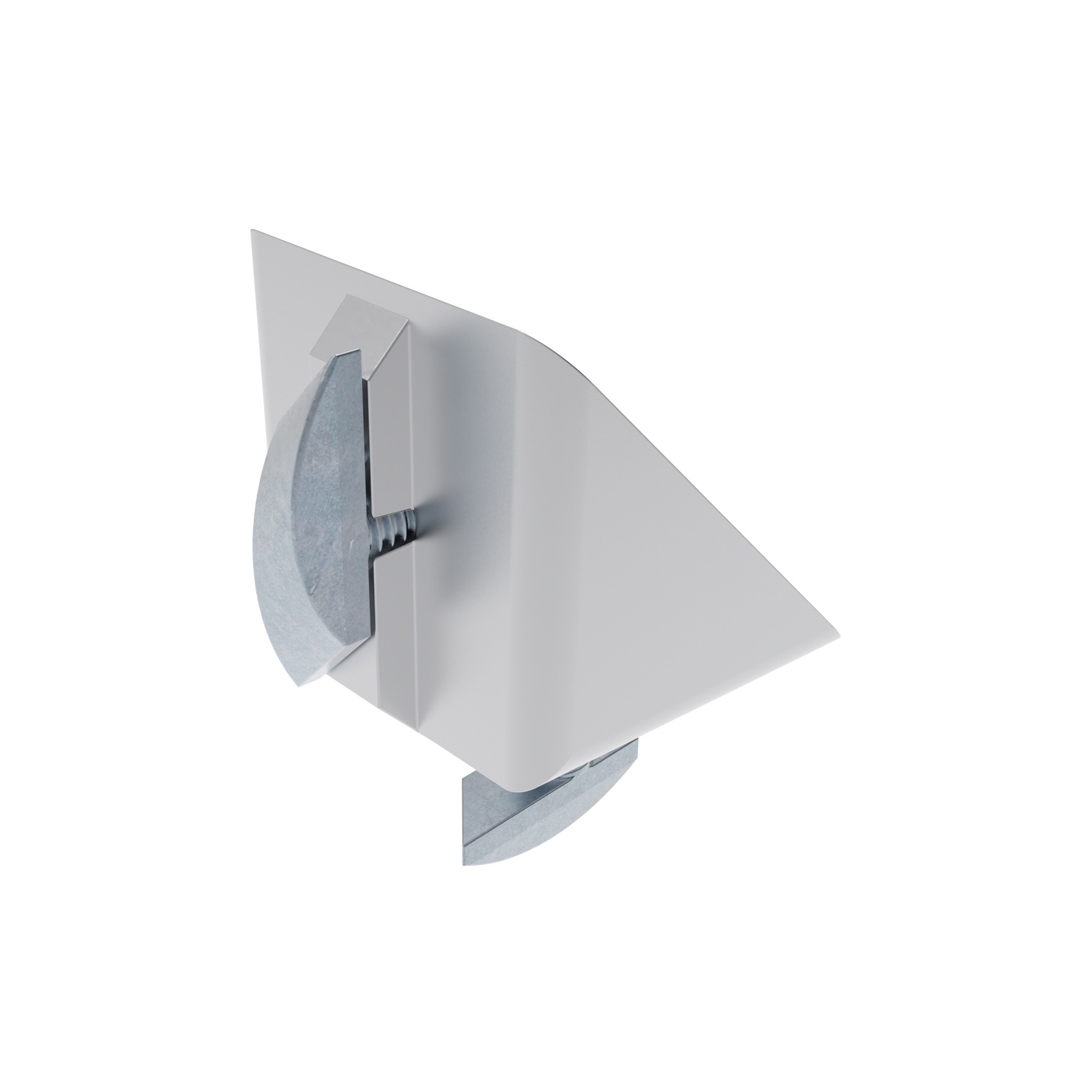

Alu Connection Angle I40 M (Set)
Profile: I | Slot N (mm): 8
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406Zolltarifnummer:76169910990

€0.00*

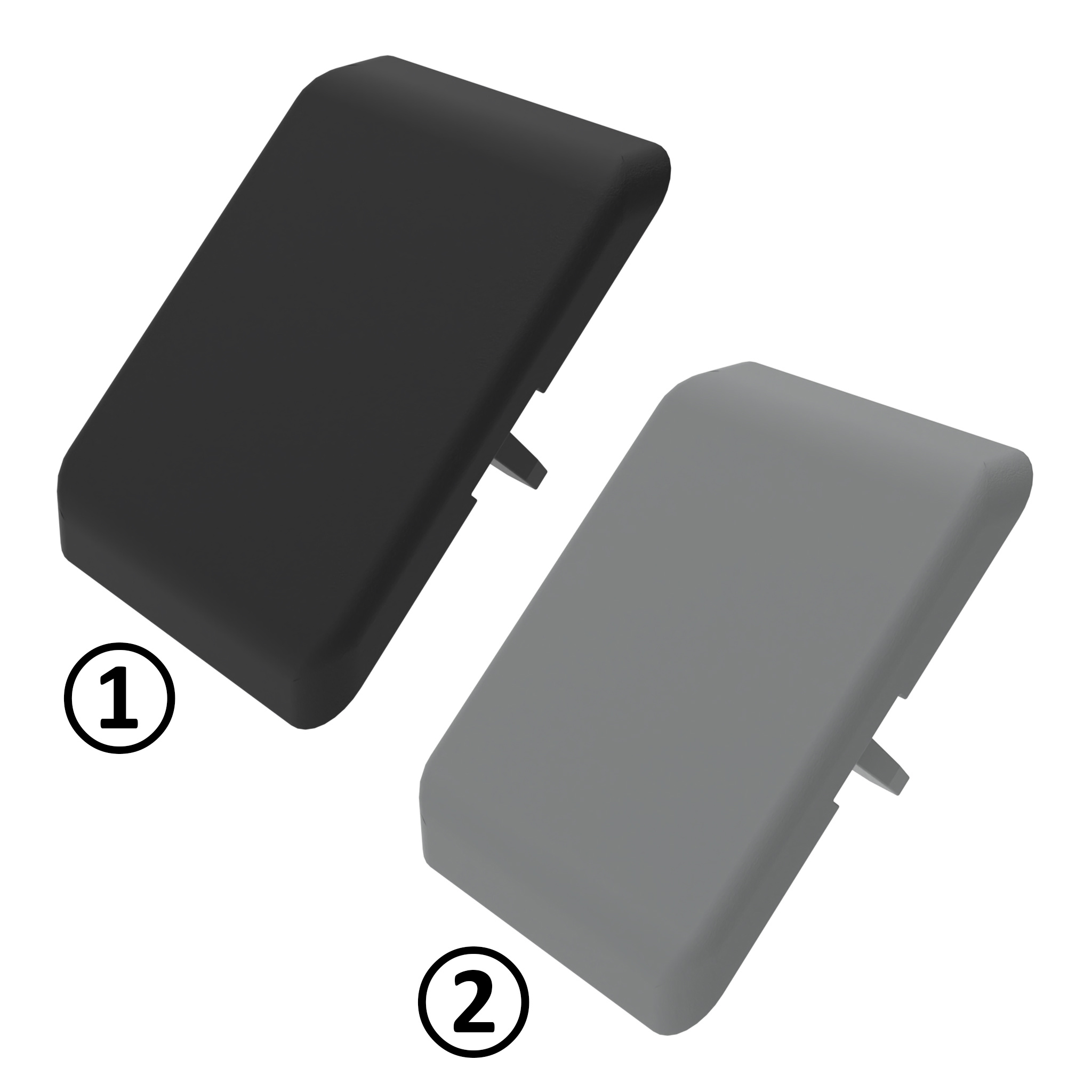

Cover Cap for Alu Connection Angle I40 M (Set)
Color:Black, grayDelivery Countries:WorldwideDescription:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on requestTip:Compatible Alu Connection Angle I40 M (Set) see 093W406N08S01Zolltarifnummer:39269097900

€0.00*
Alu Connection Angle I40 x 80 M (Set)
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809Zolltarifnummer:76169910990

€0.00*
Alu Connection Angle 40 x 80 x 160 (Set)
Profile: I | Slot N (mm): 8
Color:Angle: Alu color Cover cap: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws ISO 7380 - M8 x 16 4 square washersSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Screws and T-nuts: Zinc platedZolltarifnummer:76169910990

€0.00*
Alu Connection Angle I40 M (Set)
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406Zolltarifnummer:76169910990

€0.00*
Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color
A1 (mm): 20.0 | A2 (mm): 20.0 | B1 (mm): 36.0 | B2 (mm): 36.0 | Combination: 35 / 35 | FAmax (N): 250 | FRmax (N): - | Version: L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*
Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color
A1 (mm): 25.0 | A2 (mm): 17.5 | B1 (mm): 43.5 | B2 (mm): 29.5 | Combination: 45 / 30 | FAmax (N): 280 | FRmax (N): 450 | Version: L: Left
Color:Wing: Alu colorDelivery Countries:WorldwideDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05Zolltarifnummer:83021000900

€0.00*

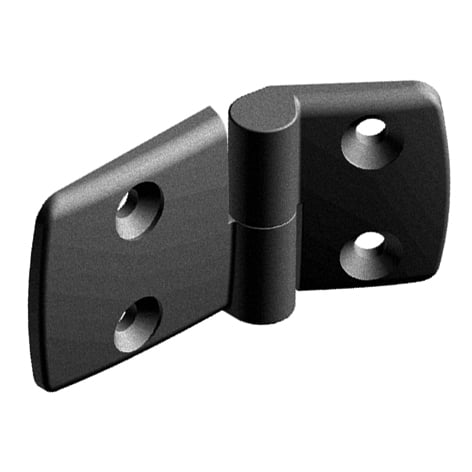

Plastic Combi Hinge 60, Detachable, Black
A1 (mm): 32.5 | A2 (mm): 32.5 | B1 (mm): 57.5 | B2 (mm): 57.5 | Combination: 60 / 60 | FAmax (N): - | FRmax (N): 900 | Slot N (mm): 10 | Version: L: Left
Color:BlackDelivery Countries:WorldwideDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelSpecials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestZolltarifnummer:39263000900

€0.00*
