Adjustable Friction Joint B40L for System Arm (Set)
€0.00*
B (mm):
40.0
|
MAmax (Nm):
45.0
|
Profile:
B
|
R (mm):
3.0
|
Slot N (mm):
10
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Tip 2:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-
Adjustable Friction Joint I40L for System Arm (Set)
€0.00*
B (mm):
40.0
|
MAmax (Nm):
45.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-
Anschluss-Friktionsgelenk I40L für Systemarm (Set)
€0.00*
B (mm):
40
|
MAmax (Nm):
45.0
|
Profile:
I
|
R (mm):
4.0
|
Slot N (mm):
8
|
W (Nm):
15.0
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Cable Binder Block
€0.00*
A2 (Profile) (mm):
4.3 (4.5)
|
Profile:
I
|
Slot N (mm):
8
|
Version:
-
|
ØD (mm):
-
Color:BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles; can be mounted into the slot by a quarter turnMaterial:Cable binding block: Plastic PA, glass fiber reinforced Velcro® strap: Plastic PE (hook), Plastic PA (loop)Specials:Customized hammer, other colors on request
Clip Cable Binder - 1 chamber - with Hammer
€0.00*
A2 (Profile) (mm):
1.6 (1.8)
|
Profile:
I
|
Slot N (mm):
5
Color:BlackDelivery Countries:WorldwideDescription:To fix cables without the need for cable ties, can be opened and closed again; can be mounted into the slot by a quarter turnMaterial:Plastic PA
Clip Cable Binder - 2 chambers
€0.00*
H (mm):
2.5
|
Slot N (mm):
10
Color:BlackDelivery Countries:WorldwideDescription:To fix cables without the need for cable ties, can be opened and closed againMaterial:Clip: Plastic PA Rubber: FPM 70Specials:ESD electrostatical discharging, other sizes, other colors on request
Clip Cable Binder - 2 chambers - with Hammer
€0.00*
A2 (Profile) (mm):
2.0 (2.2)
|
Color:
Black
|
Profile:
B
|
Slot N (mm):
8
Color:Black, grayDelivery Countries:WorldwideDescription:To fix cables without the need for cable ties, can be opened and closed again; can be mounted into the slot by a quarter turnMaterial:Clip: Plastic PA Rubber: FPM 70Specials:Customized hammer, other colors on request
Conduit Profile PVC
€0.00*
A2 (Profile) (mm):
4.2 (4.5)
|
Color:
Gray ≈ RAL 7042
|
Profile:
I
|
Slot N (mm):
8
Color:GrayDelivery Countries:WorldwideDescription:To lay cables and hoses along the profile slot, reclosableMaterial:Plastic PVCSpecials:Other colors on requestTip:Please note: You are ordering in meters!
Connecting Strip 140 I, Slot 8 (Set)
€0.00*
L (mm):
140.0
|
M:
M8
|
Profile:
I
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles without machiningMaterial:SteelSet:1 connecting strip 140 - slot 8 4 screws DIN 914 - M8 x 10Surface:Zinc plated
Connection Cable GST15i5 for Module F Line
€0.00*
Color:
Black
|
L (mm):
4000.0
Color:BlackDelivery Countries:WorldwideDescription:5 wire cable to connect LED lamps with remote dimmer and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible Power Strip see 6SBEU24DU.370 Compatible LED Lamp see 6SL0040I953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
Connection Cable GST18i3 for Module F Line
€0.00*
L (mm):
2000.0
Color:BlackDelivery Countries:WorldwideDescription:3 wire cable to connect LED lamps and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible Power Strip see 6SBEU14UI.370 Compatible LED Lamp see 6SL1040DI.953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
Connection Coupling GST15i5 for Module F Line (Set)
€0.00*
Color:Connection coupling: BlackDelivery Countries:WorldwideDescription:5 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU24DI.370 Compatible LED Lamp see 6SL0040RI.476Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
Connection Coupling GST18i3 for Module F Line (Set)
€0.00*
Color:Connection coupling: BlackDelivery Countries:WorldwideDescription:3 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU04I.264 Compatible LED Lamp see 6SL1040DI.476Tip 2:Please note: Usage of connection coupling only in combination with connector T-slot nut permitted Max. chaining of 6 modules, 8 m or 3500 watts for Module F Line
Cover Cap GST18i3 for Module F Line
€0.00*
Color:
Black
Color:BlackDelivery Countries:WorldwideDescription:Cover cap to cover three pole sockets of LED lamps and power strips Module F LineMaterial:Plastic PATip:Compatible Power Strip see 6SBEU24I.370 Compatible LED Lamp see 6SL1040DI.953

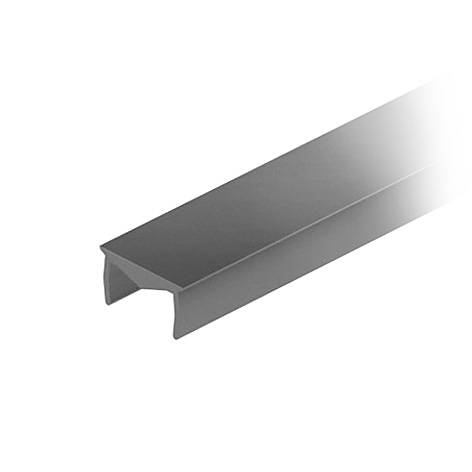

Cover Profile AL Slot 10 - 6.0
€0.00*
Profile:
B
|
Slot N (mm):
10
Delivery Countries:WorldwideDescription:To cover T-Slots with 10 mm width and a 6 mm profile webMaterial:AluminumSurface:AnodizedTip:Please note: You are ordering in meters!
Cover Profile AL Slot 8 - 2.2
€0.00*
Profile:
B
|
Slot N (mm):
8
Delivery Countries:WorldwideDescription:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:AluminumSurface:AnodizedTip:Please note: You are ordering in meters!
Cover Profile Slot 10 - 6.0
€0.00*
Color:
Blue ≈ RAL 5005
|
ESD:
-
|
Profile:
B
|
Slot N (mm):
10
Color:Black, yellow, orange, red, blue, gray, green, white, natural, aluminum color Delivery Countries:WorldwideDescription:To cover T-Slots with 10 mm width and a 6 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom side
Cover Profile Slot 6 - 3.0
€0.00*
Color:
Alu color coated
|
Profile:
I
|
Slot N (mm):
6
Color:Black, gray, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 6 mm width and a 3.0 mm profile webMaterial:Plastic PPSpecials:Other colors on request
Cover Profile Slot 8 - 2.2
€0.00*
Color:
Yellow ≈ RAL 1018
|
ESD:
-
|
Profile:
B
|
Slot N (mm):
8
Color:Black, yellow, red, blue, gray, white, natural, aluminum colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom side
Cover Profile Slot 8 - 4.5
€0.00*
Color:
Black
|
ESD:
ESD electrostatical discharging
|
Profile:
I
|
Slot N (mm):
8
Color:Black, yellow, gray, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:Plastic PPSpecials:Other colors on request
Cross Cable Binder Block
€0.00*
A2 (Profile) (mm):
5.8 (6.0)
|
Profile:
B
|
Slot N (mm):
10
|
Version:
-
|
ØD (mm):
-
Color:BlackDelivery Countries:WorldwideDescription:To fix cables to aluminum profiles in two directions; can be mounted into the slot by a quarter turnMaterial:Cable binding block: Plastic PA, glass fiber reinforced Velcro® strap: Plastic PE (hook), Plastic PA (loop)Specials:Customized hammer, other colors on request
Cross Cable Binder Block D28
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:To fasten cables and tubes parallel to the slot, simple click-in assemblyMaterial:Plastic PA, glass fiber reinforcedTip:Compatible Velcro® strap for Cross Cable Binder Block D28 see 340ME8200KL
Cross Cable Binder Block D28 Universal
€0.00*
Color:BlackDelivery Countries:WorldwideDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PA, carbon fiber reinforced
Cross Cable Binder Block D30
€0.00*
Profile:
I
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PP
