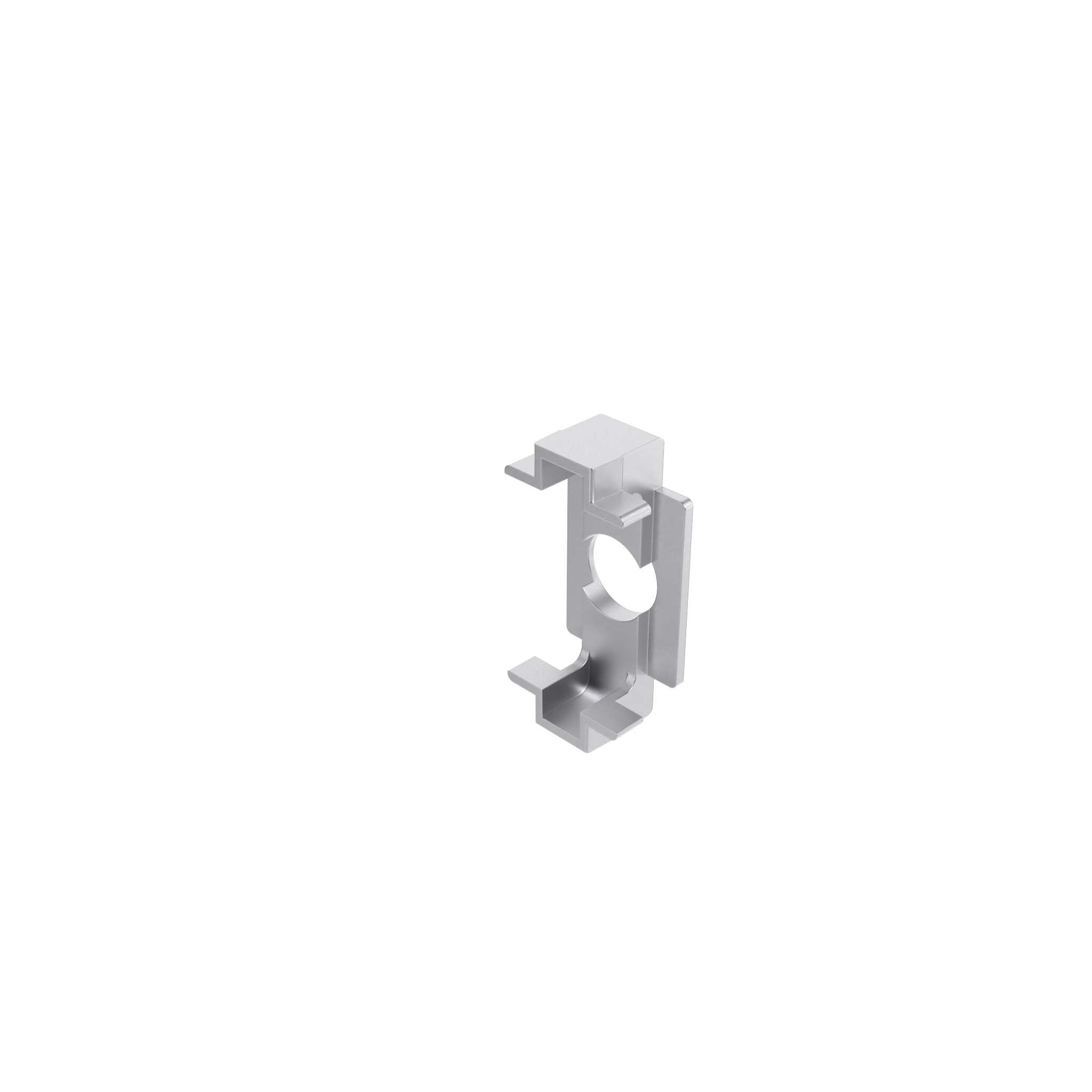

Screw Connector B, Slot 10

Product information "Screw Connector B, Slot 10"

Delivery Countries:
Worldwide

Description:

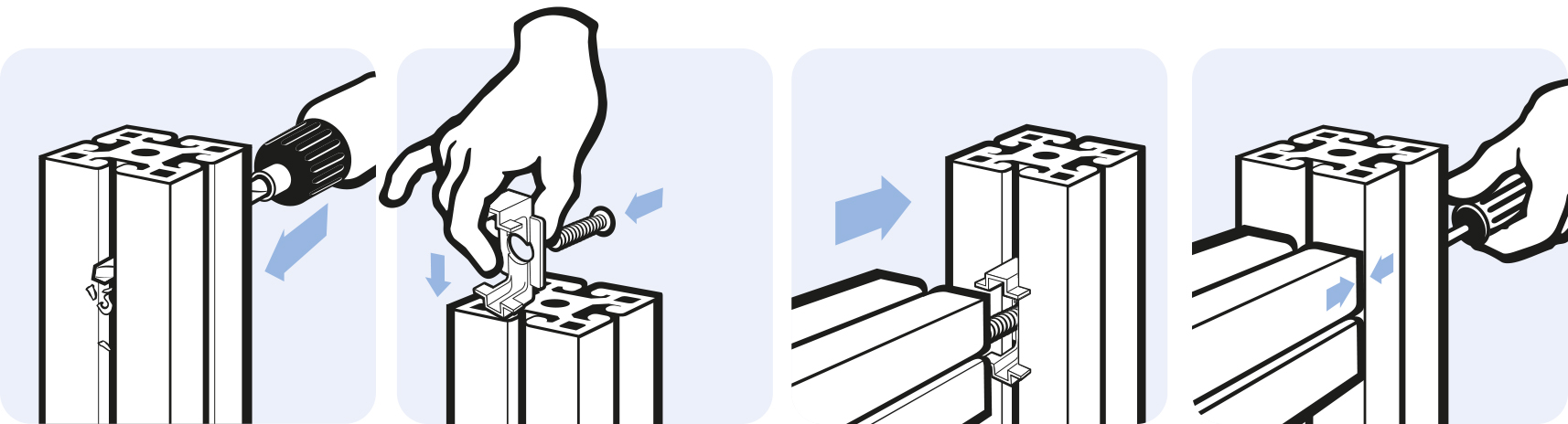

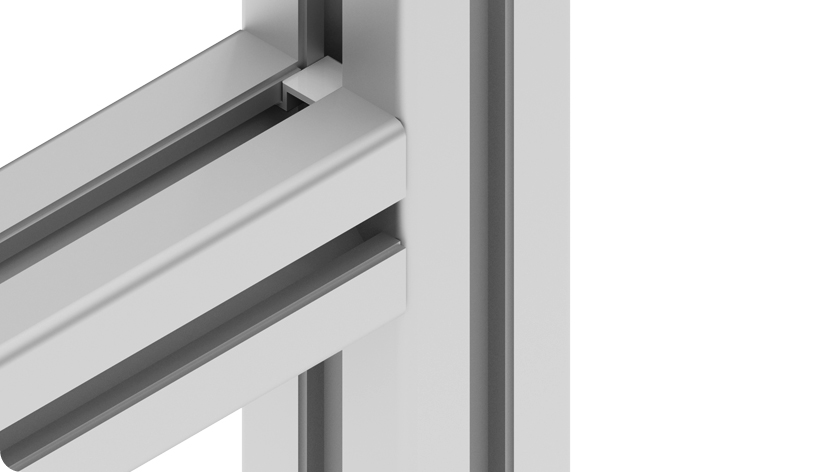

To connect two aluminum profiles

Material:
Zinc die-cast

Surface:
Zinc plated
Model: Slot 10
Pack Quantity: 100 Stück
Customs Tariff Number Export: 79070000
Weight (g): 16.0
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
ERP Number: 117809

Variants

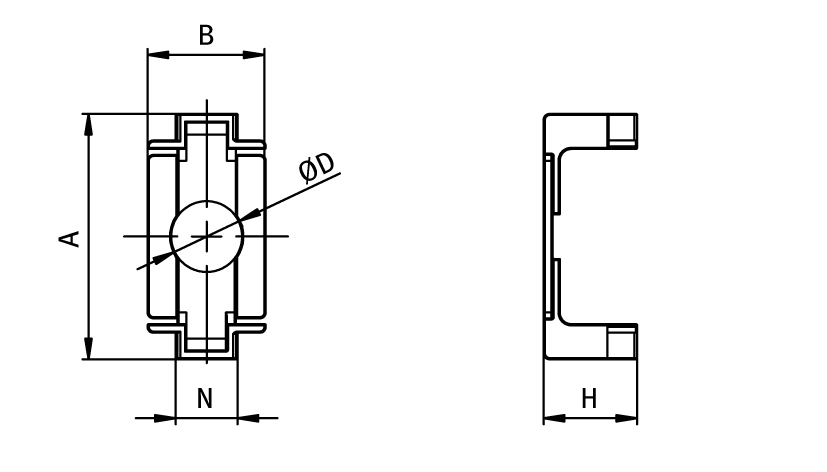

Part # Version A x B (mm) D (mm) H (mm) Screw Slot N (mm) Profile
092092 - 41.6 x 20.0 12.0 15.8 M12 x 40 10 -
099F1045S13 With self forming screw 41.6 x 20.0 12.0 15.8 M12 x 40 10 B
