Screw Connector B, Slot 10

Description:

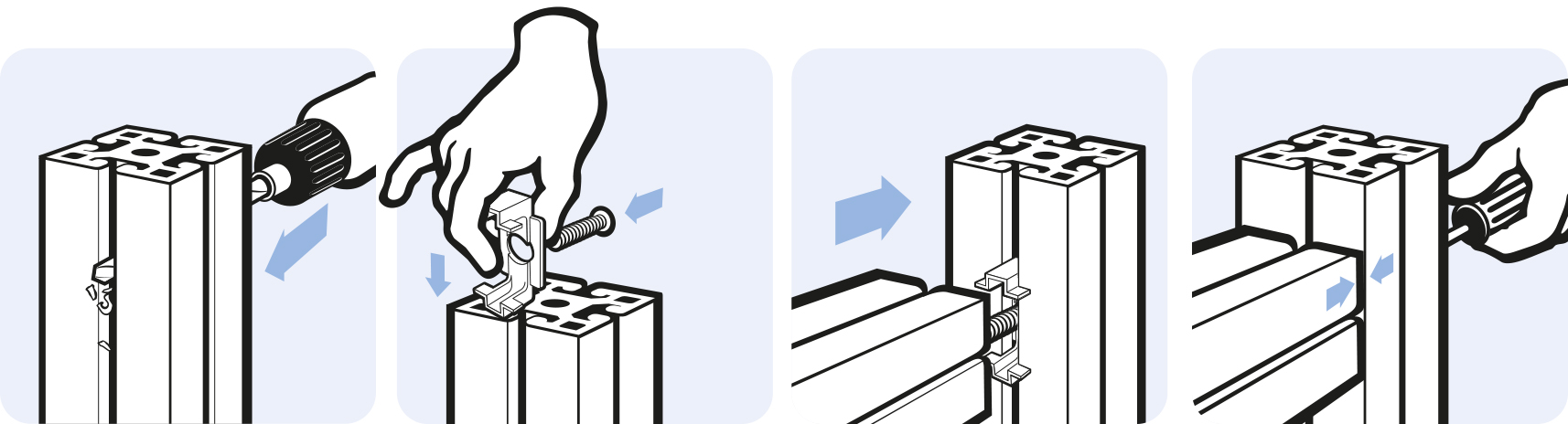

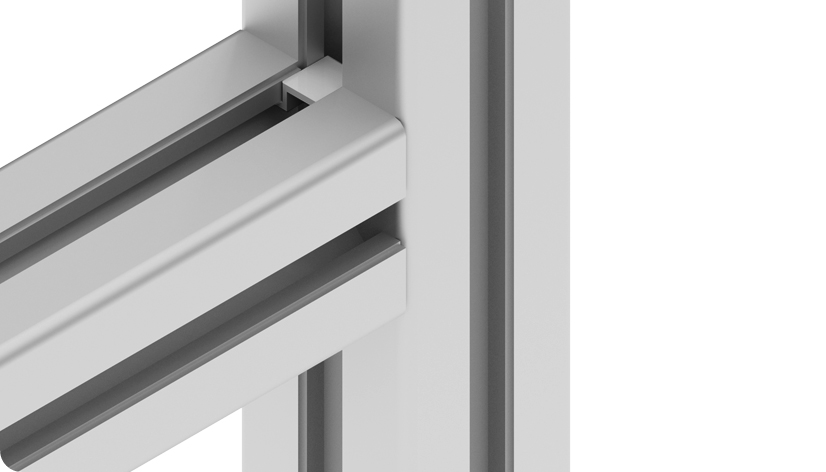

To connect two aluminum profiles

Material:
Zinc die-cast

Surface:
Zinc plated

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Slot 10
Weight (g):	42.0
ERP Number:	119107

Variants

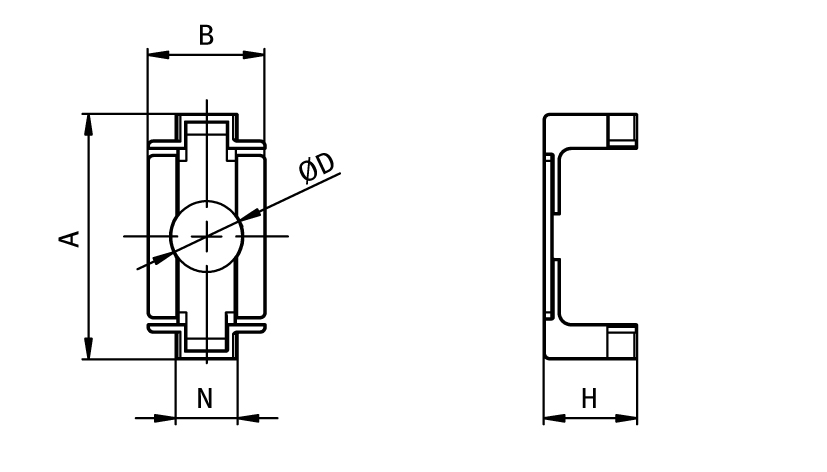

Part #	D (mm)	Version	H (mm)	Profile	Slot N (mm)	Screw	A x B (mm)	CAD
092092	12.0	-	15.8	-	10	M12 x 40	41.6 x 20.0
099F1045S13	12.0	With self forming screw	15.8	B	10	M12 x 40	41.6 x 20.0

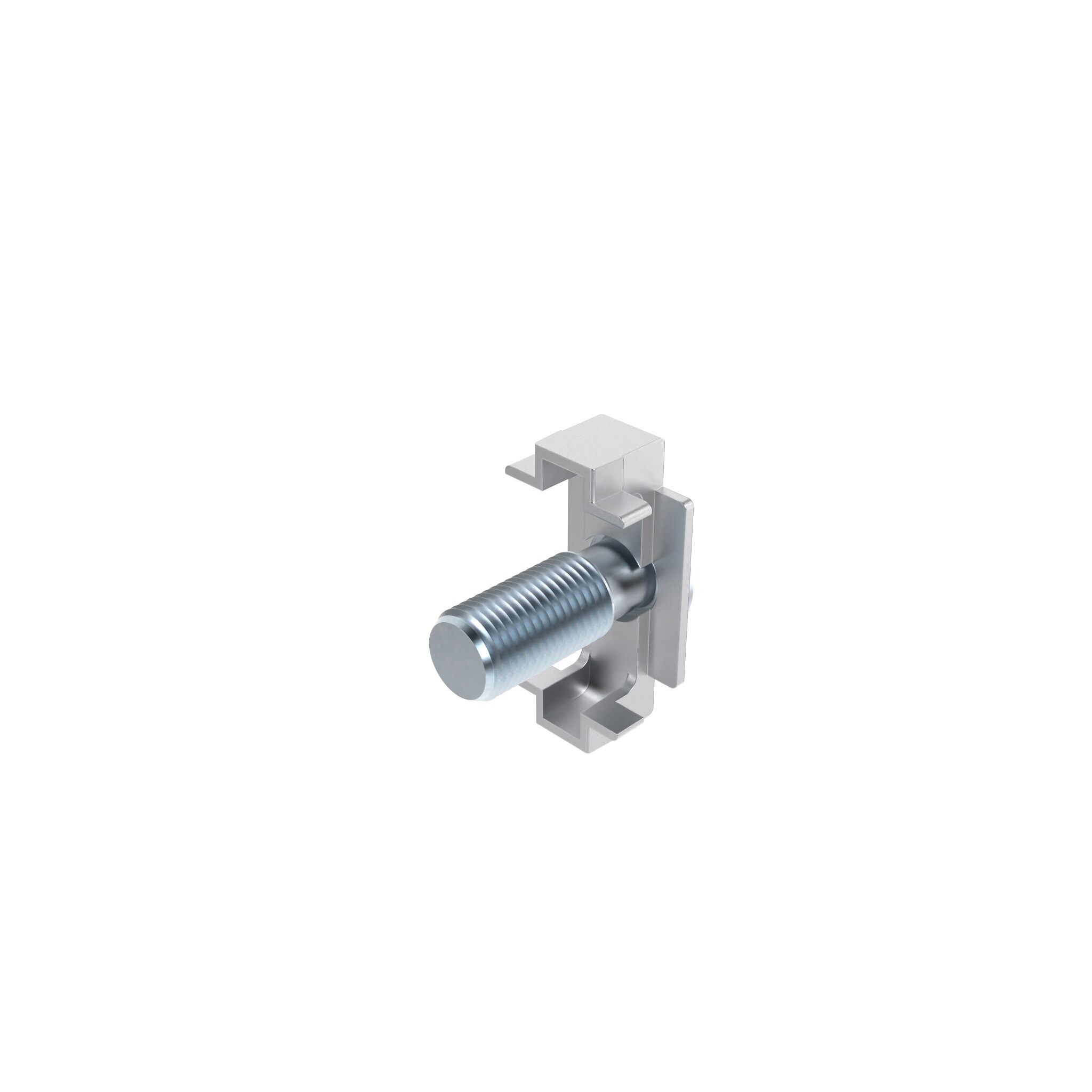

099F1045S11	12.0	With hexalobular socket TX screw	15.8	-	10	M12 x 30	41.6 x 20.0

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Customs Tariff Number Export: 73269098

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Profile Form	T-slot Profiles
