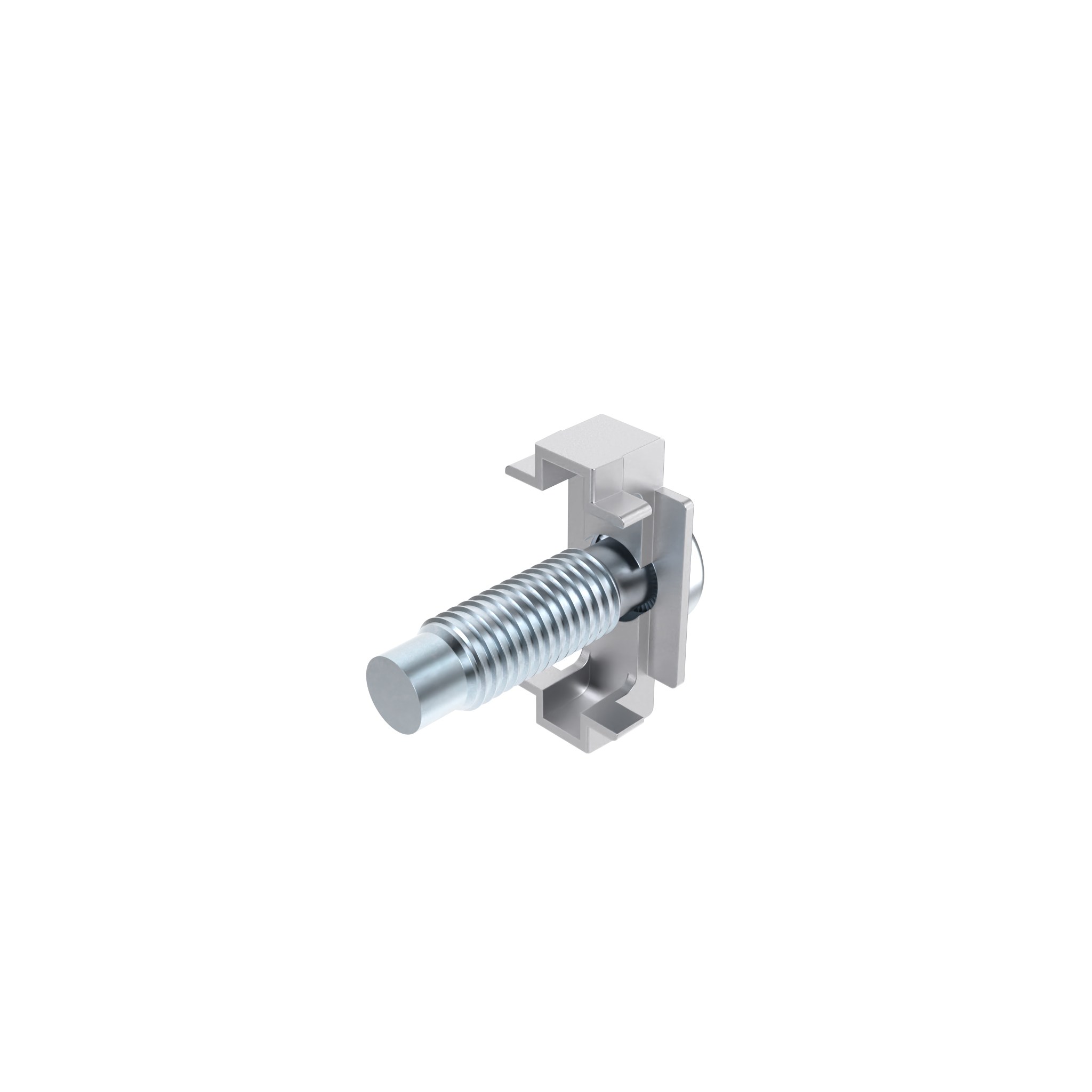

Screw Connector B, Slot 10

€0.00

D (mm)

12.0

Version

-

With self forming screw

H (mm)

15.8

Profile

-

B

Slot N (mm)

10

Screw

M12 x 40

A x B (mm)

41.6 x 20.0

Part #: 099F1045S13

Pack Quantity: 100 pieces

Product information "Screw Connector B, Slot 10"

Delivery Countries:
Worldwide

Description:

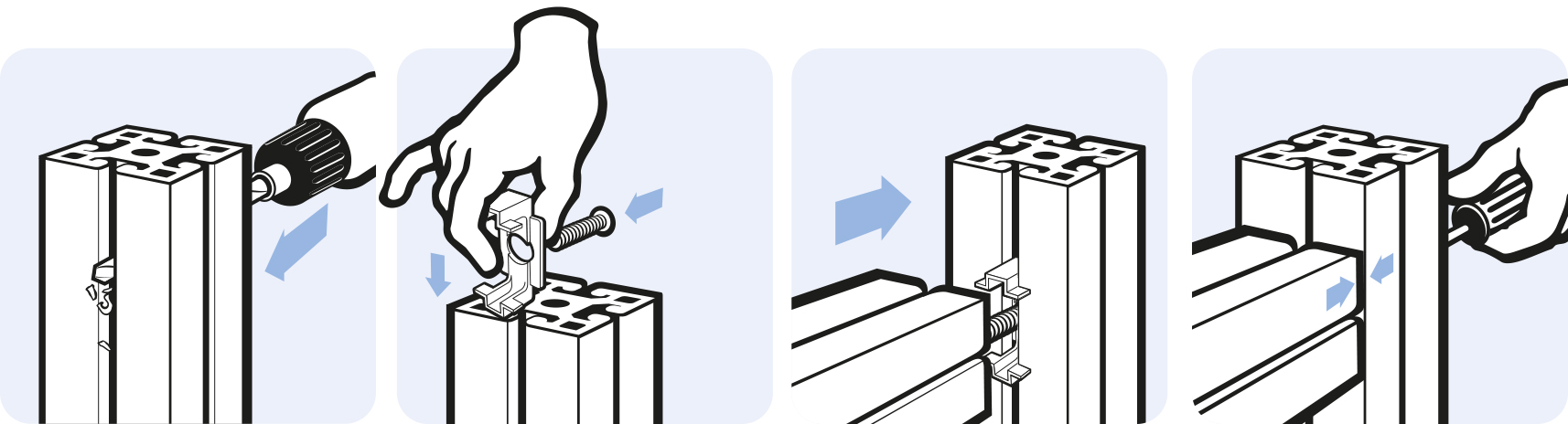

To connect two aluminum profiles

Material:
Zinc die-cast

Surface:
Zinc plated

Pack Quantity:	100 pieces
Model:	Slot 10
Weight (g):	47.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Customs Tariff Number Export:	73269098
ERP Number:	118970

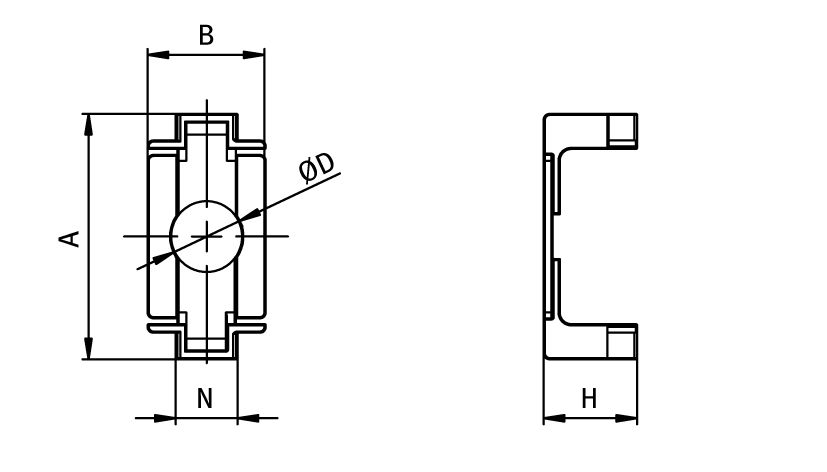

Part #	D (mm)	Version	H (mm)	Profile	Slot N (mm)	Screw	A x B (mm)
092092	12.0	-	15.8	-	10	M12 x 40	41.6 x 20.0
099F1045S13	12.0	With self forming screw	15.8	B	10	M12 x 40	41.6 x 20.0
