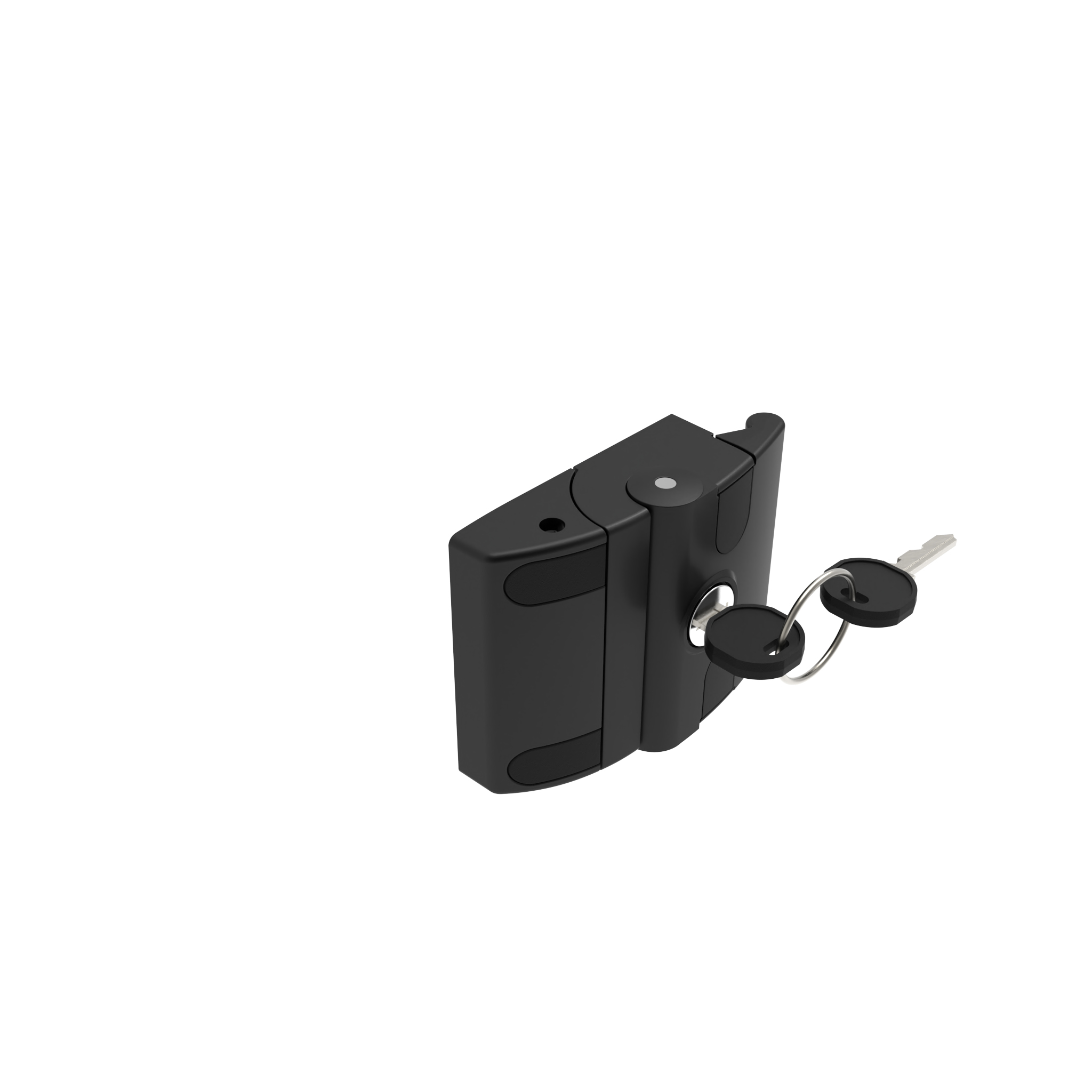

Slide Door Latch COMPACT
€0.00
Product information "Slide Door Latch COMPACT"
Black
Delivery Countries:
Worldwide
Description:

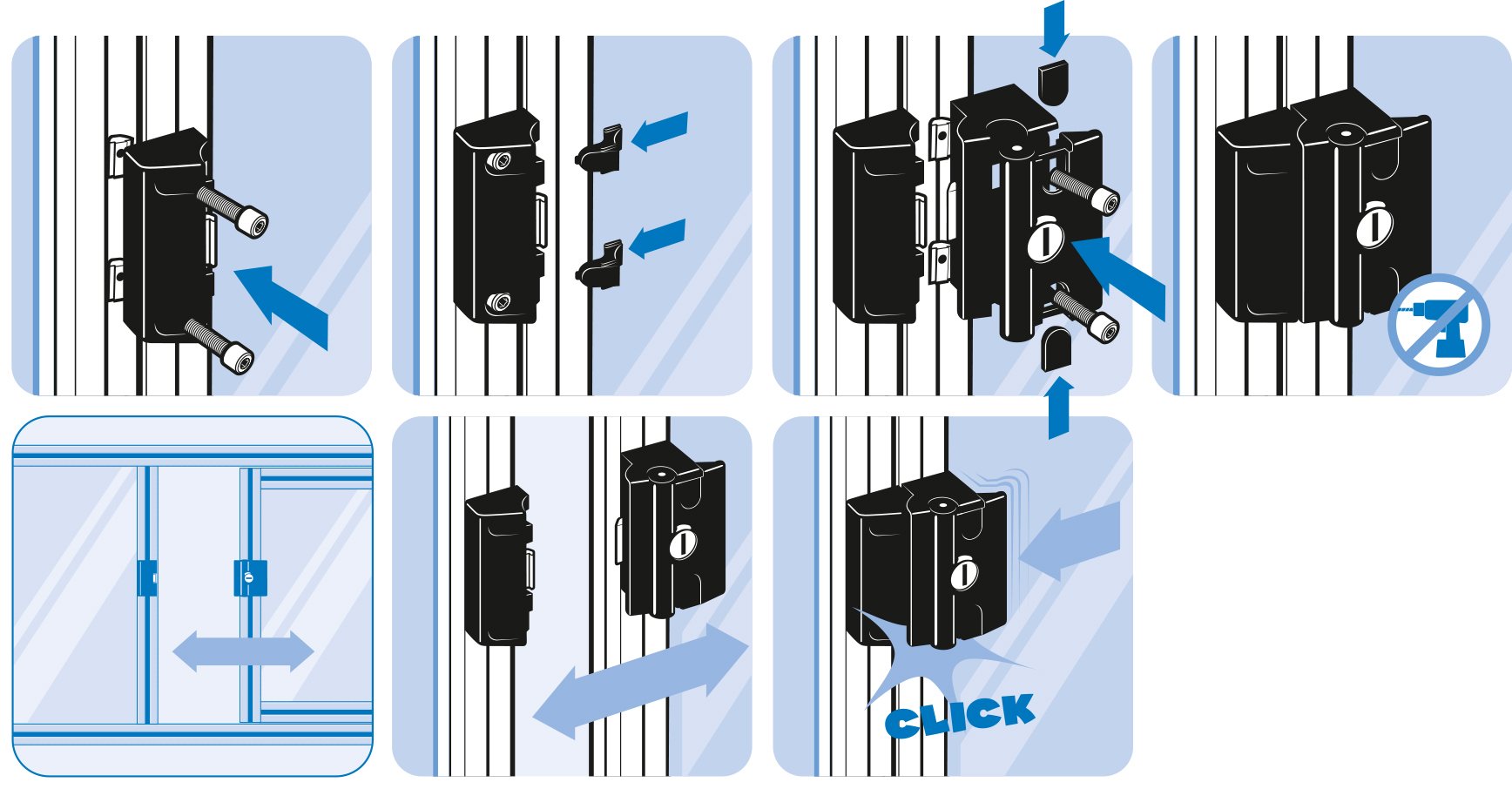

For an easy and secure latching and locking of sliding doors, no mechanical preparation needed for the assembly; safe against disassembling in the locked position
Fastening:
From the front, using M6 socket head or pan head screws
Material:
Aluminum die-cast
Surface:
Powder coated
Tip:
*Universal: One key fits all slam latches
Unique: Each slam latch has a different key
Compatible Emergency Opener for Slam Latch with Safety Catch see 0957409S02, additional inside mounted handle recommended
Compatible Replacement Cover Cap (Set) see 0957408RS01
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Aluminum die-cast |
| Weight (g): | 246.0 |
| ERP Number: | 142934 |
Product Portraits
Classifications
- ECLASS 6.0
- 23199090
- ECLASS 7.0
- 23199090
- ECLASS 8.0
- 23199090
- ECLASS 9.0
- 23199090
- ECLASS 10.0
- 23199090
- ECLASS 11.0
- 23190290
- ECLASS 12.0
- 23190290
- ECLASS 13.0
- 23190290
- Zolltarifnummer
- 83014090000
- Customs Tariff Number Export
- 83014090
Certificates
Matching accessories
Color:Base part: Black Push button: Red ≈ RAL 3020Delivery Countries:WorldwideDescription:Inside emergency release for slam latches PRO and Compact; with or without safety catchFastening:From the front, using two socket head screws DIN EN ISO 4762 (DIN 912) M6 x 20Material:Base part: Plastic PA, glass fiber reinforced Push button: Plastic PA, glass fiber reinforced Unlocking plate: SteelSurface:Unlocking plate: Zinc platedTip:Recommendation for slide door latch Compact 0957415 et sq.: Emergency opener for slam latch with safety catch and an inside mounted handle; Not compatible with slam latch 0957101 et sq.
Color:Black, alu colourDelivery Countries:WorldwideDescription:To cover and protect the Slam Latch attachmentMaterial:Plastic PASurface:Powder coatedTip:Compatible Slam Latch Compact see 0957408 Compatible Slide Door Latch Compact see 0957415
