Slide Door Latch COMPACT

Product information "Slide Door Latch COMPACT"

Color:
Black

Delivery Countries:
Worldwide

Description:

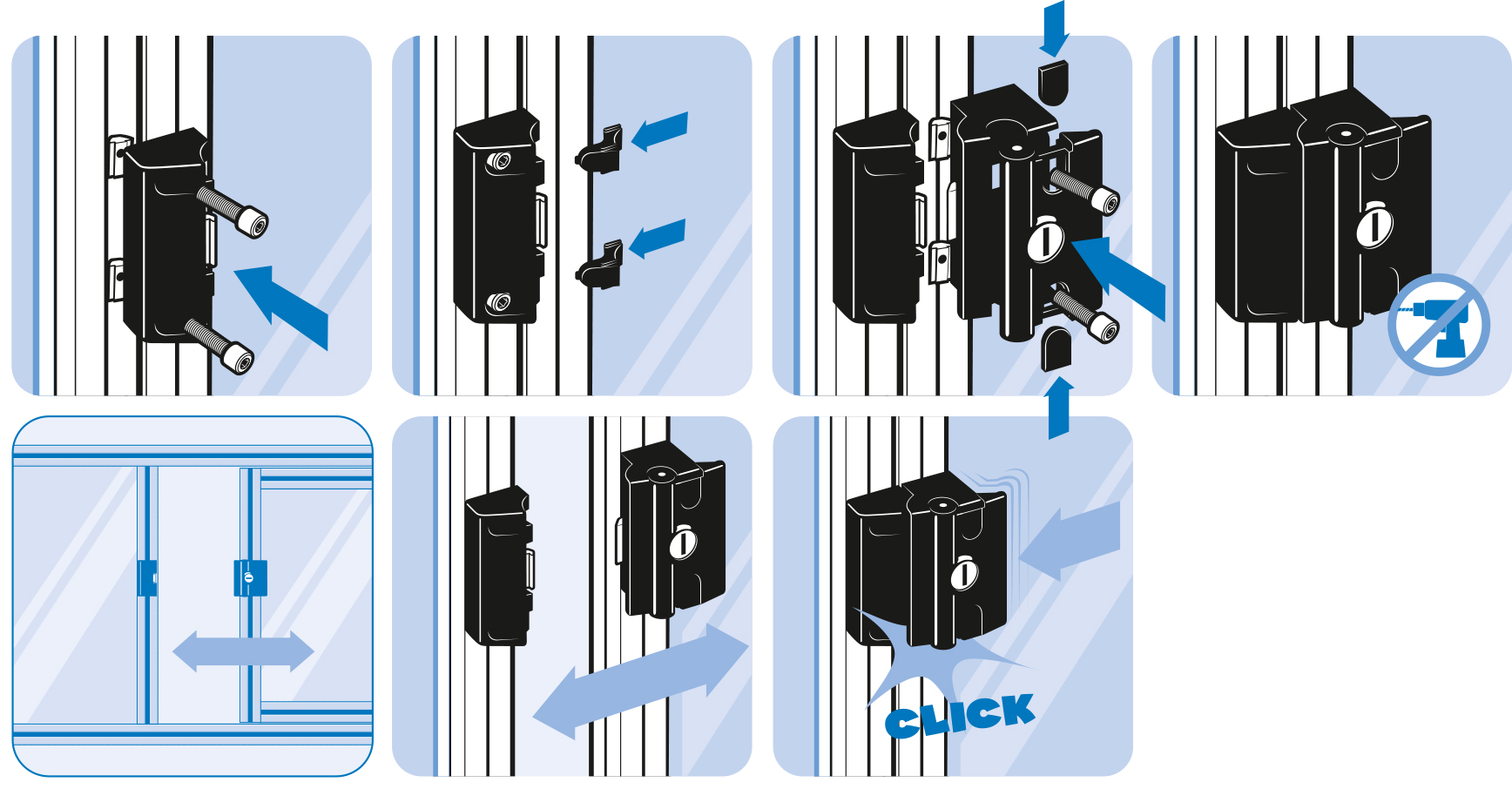

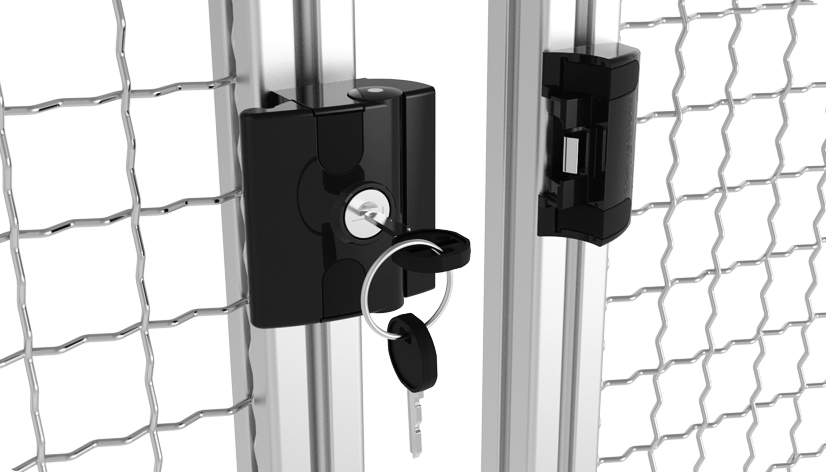

For an easy and secure latching and locking of sliding doors, no mechanical preparation needed for the assembly; safe against disassembling in the locked position

Material:
Aluminum die-cast

Surface:
Powder coated

Tip:
* Universal: One key fits all slam latches
Unique: Each slam latch has a different key
Compatible Emergency Opener for Slam Latch with Safety Catch see 0957409S02, additional inside mounted handle recommended
Compatible Replacement Cover Cap (Set) see 0957408RS01
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23190290
(ECLASS 12.0): 23190290
(ECLASS 13.0): 23190290
Customs Tariff Number Export: 83014090

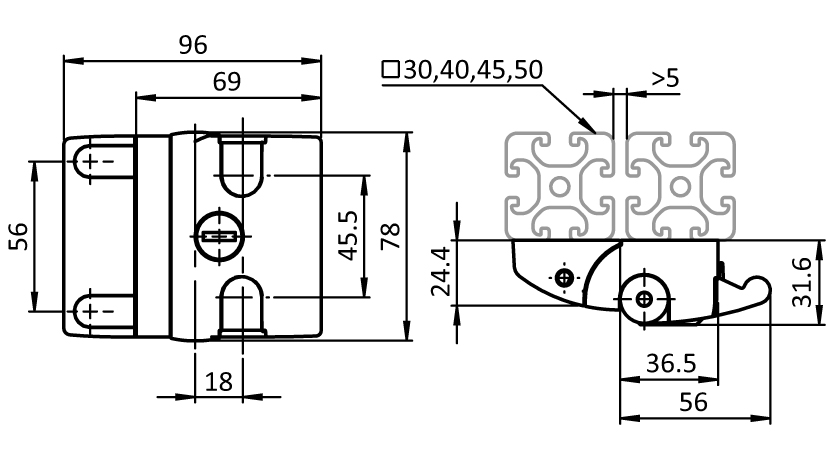

Fastening: From the front, using M6 socket head or pan head screws, V_From the front, using M6 socket head or pan head screws
Model: Aluminum die-cast
Pack Quantity: 1 piece
Pack Quantity (1): 1
Weight (g): 216.0
Zolltarifnummer: 83014090000
pA Number: 142935

Variants

Product ID Color Version Fig. Lock
0957415 Universal*
0957416 Unique*

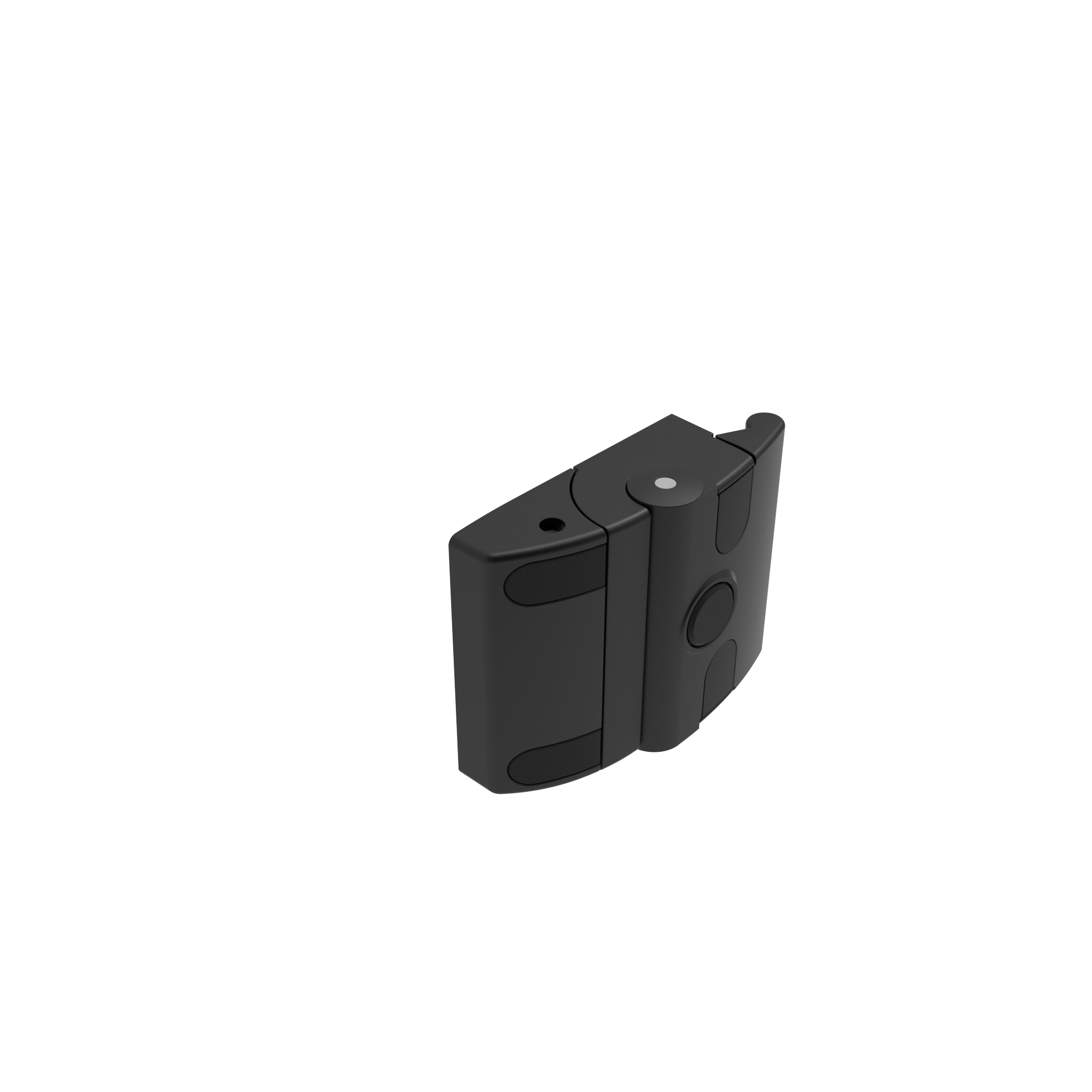

0957417 without
