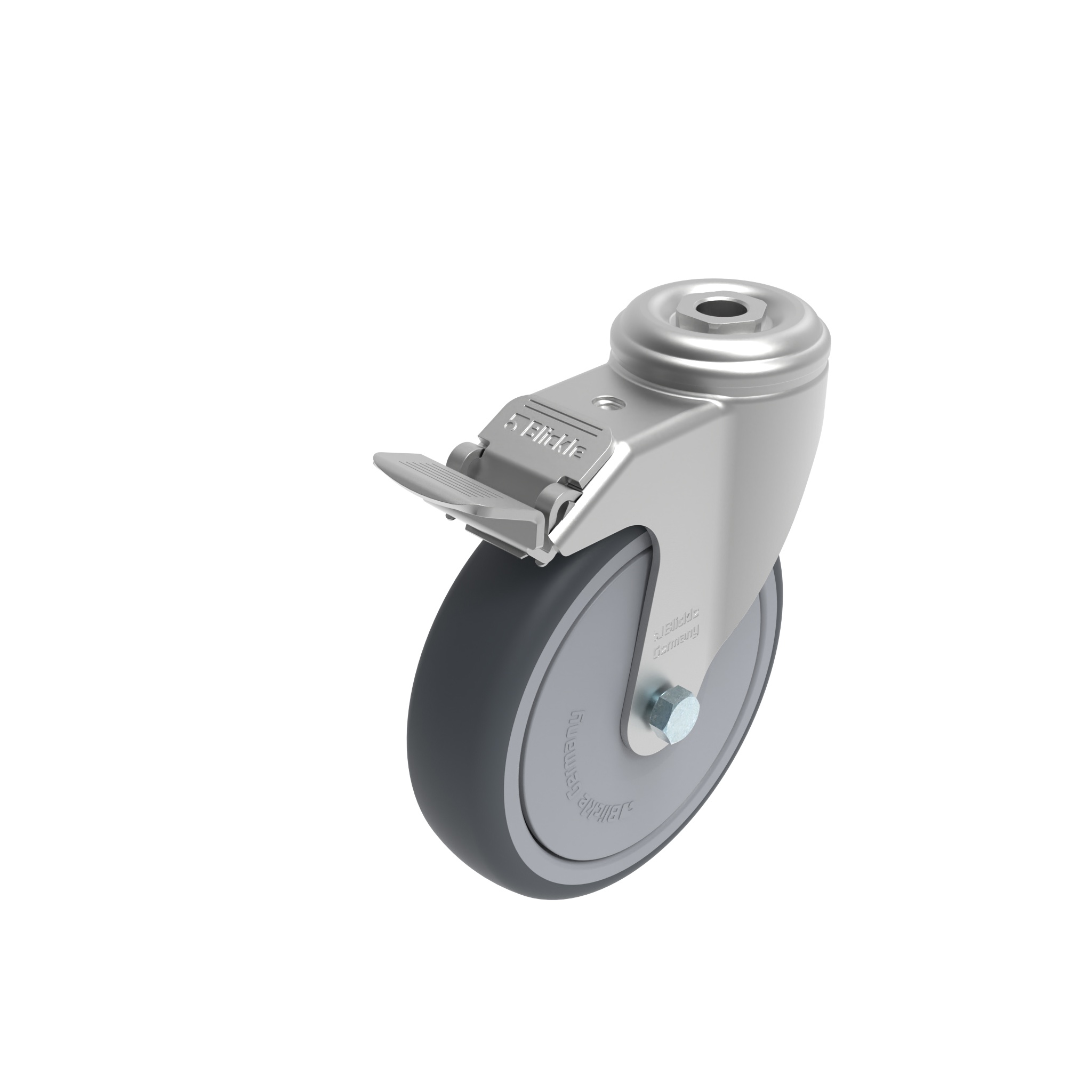

Swivel Caster Ø 80 / 100 / 125 with System Brake

Product information "Swivel Caster Ø 80 / 100 / 125 with System Brake"

Color:
Housing: Alu color
Tread: See table
Wheel body: Black, gray

Delivery Countries:
Worldwide

Description:
Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate needed

Material:
Housing: Steel
Tread: See table
Wheel body: See table

Specials:
Other kinds of wheels, other colors, other surfaces on request

Surface:
Housing: Powder coated

Tip:
Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08

Model:	With bolt hole and system brake; compatible with optional adapter plate S
Pack Quantity:	1 piece
Customs Tariff Number Export:	73269098
Weight (g):	773.0
(ECLASS 6.0):	23370201
(ECLASS 7.0):	23370201
(ECLASS 8.0):	23370201
(ECLASS 9.0):	23370201
(ECLASS 10.0):	23370201
(ECLASS 11.0):	23370201
(ECLASS 12.0):	23370201
(ECLASS 13.0):	23370201
ERP Number:	140608
Zolltarifnummer:	73269098900

Variants

Part #	Bearing	ESD	D (mm)	H (mm)	Max. Load (N)	Swivel Caster Tread	Wheel Body	Pack Quantity
098S080ADN	Slide bearing	-	80	108	1000	PA, black; *with slide bearings	PA, black	1 piece
098S080GDN	Ball bearing	-	80	108	800	Solid rubber, gray ≈ RAL 7001	PA, black	1 piece
098S080GDNESD	Ball bearing	ESD	80	108	600	Solid rubber, black	PA, black	1 piece
098S080TDN	Slide bearing	-	80	108	1000	TPE, gray ≈ RAL 7031	PP, gray	1 piece
098S080TDNESD	Ball bearing	ESD	80	108	650	TPE, gray ≈ RAL 7031	PP, black	1 piece
098S080UDN	Ball bearing	-	80	108	1200	TPU, gray ≈ RAL 7024	PA, gray	1 piece
098S080UDNESD	Ball bearing	ESD	80	108	1000	TPU, gray ≈ RAL 7024	PA, black	1 piece
098S100ADN	Slide bearing	-	100	133	1200	PA, black; *with slide bearings	PA, black	1 piece
098S100GDN	Ball bearing	-	100	133	1100	Solid rubber, gray ≈ RAL 7001	PA, black	1 piece
098S100GDNESD	Ball bearing	ESD	100	133	800	Solid rubber, black	PA, black	1 piece
098S100TDN	Ball bearing	-	100	133	1100	TPE, gray ≈ RAL 7031	PP, gray	1 piece
098S100TDNESD	Ball bearing	ESD	100	133	700	TPE, gray ≈ RAL 7031	PP, black	1 piece
098S100UDN	Ball bearing	-	100	133	1200	TPU, gray ≈ RAL 7024	PA, gray	1 piece
098S100UDNESD	Ball bearing	ESD	100	133	1200	TPU, gray ≈ RAL 7024	PA, black	1 piece
098S125ADN	Slide bearing	-	125	158	1200	PA, black; *with slide bearings	PA, black	1 piece
098S125GDN	Ball bearing	-	125	158	1000	Solid rubber, gray ≈ RAL 7001	PA, black	1 piece
098S125GDNESD	Ball bearing	ESD	125	158	750	Solid rubber, black	PA, black	1 piece
098S125TDN	Ball bearing	-	125	158	1200	TPE, gray ≈ RAL 7031	PP, gray	1 piece
098S125TDNESD	Ball bearing	ESD	125	158	800	TPE, gray ≈ RAL 7031	PP, black	1 piece
098S125UDN	Ball bearing	-	125	158	1200	TPU, gray ≈ RAL 7024	PA, gray	1 piece
098S125UDNESD	Ball bearing	ESD	125	158	1200	TPU, gray ≈ RAL 7024	PA, black	1 piece
