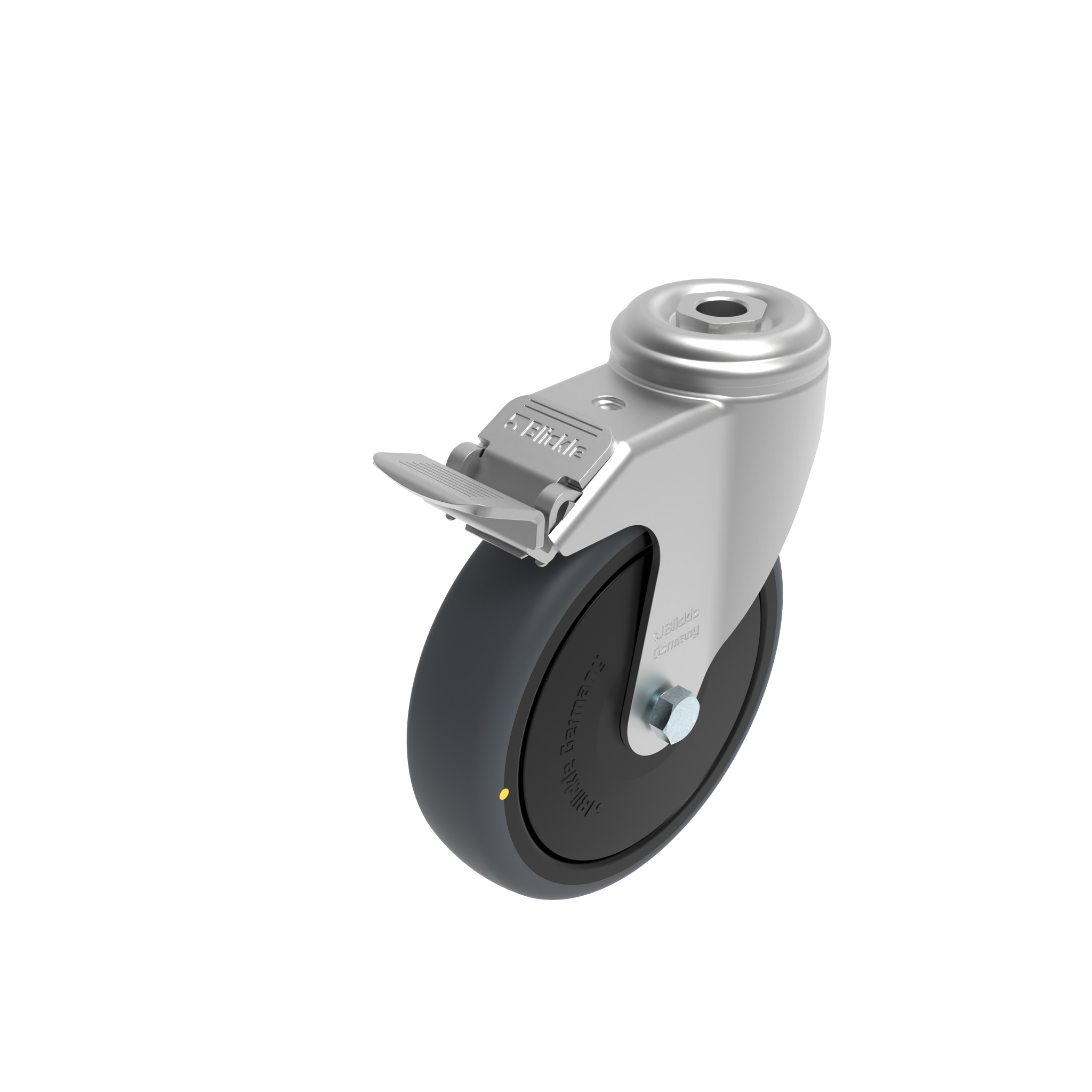

Swivel Caster Ø 80 / 100 / 125 with System Brake

Product information "Swivel Caster Ø 80 / 100 / 125 with System Brake"

Color:
Housing: Alu color
Tread: See table
Wheel body: Black, gray

Delivery Countries:
Worldwide

Description:
Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate needed

Material:
Housing: Steel
Tread: See table
Wheel body: See table

Specials:
Other kinds of wheels, other colors, other surfaces on request

Surface:
Housing: Powder coated

Tip:
Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08

Pack Quantity:	1 piece
Model:	With bolt hole and system brake; compatible with optional adapter plate S
Weight (g):	843.0
ERP Number:	140611

Variants

Part #	D (mm)	H (mm)	ESD	Max. Load (N)	Swivel Caster Tread	Wheel Body	Bearing
098S080TDN	80	108	-	1000	TPE, gray ≈ RAL 7031	PP, gray	Slide bearing
098S100TDN	100	133	-	1100	TPE, gray ≈ RAL 7031	PP, gray	Ball bearing
098S125TDN	125	158	-	1200	TPE, gray ≈ RAL 7031	PP, gray	Ball bearing
098S080TDNESD	80	108	ESD	650	TPE, gray ≈ RAL 7031	PP, black	Ball bearing
098S100TDNESD	100	133	ESD	700	TPE, gray ≈ RAL 7031	PP, black	Ball bearing
098S125TDNESD	125	158	ESD	800	TPE, gray ≈ RAL 7031	PP, black	Ball bearing
098S080UDN	80	108	-	1200	TPU, gray ≈ RAL 7024	PA, gray	Ball bearing
098S100UDN	100	133	-	1200	TPU, gray ≈ RAL 7024	PA, gray	Ball bearing
098S125UDN	125	158	-	1200	TPU, gray ≈ RAL 7024	PA, gray	Ball bearing
098S080UDNESD	80	108	ESD	1000	TPU, gray ≈ RAL 7024	PA, black	Ball bearing
098S100UDNESD	100	133	ESD	1200	TPU, gray ≈ RAL 7024	PA, black	Ball bearing
098S125UDNESD	125	158	ESD	1200	TPU, gray ≈ RAL 7024	PA, black	Ball bearing
098S080GDN	80	108	-	800	Solid rubber, gray ≈ RAL 7001	PA, black	Ball bearing
098S100GDN	100	133	-	1100	Solid rubber, gray ≈ RAL 7001	PA, black	Ball bearing
098S125GDN	125	158	-	1000	Solid rubber, gray ≈ RAL 7001	PA, black	Ball bearing
098S080GDNESD	80	108	ESD	600	Solid rubber, black	PA, black	Ball bearing
098S100GDNESD	100	133	ESD	800	Solid rubber, black	PA, black	Ball bearing
098S125GDNESD	125	158	ESD	750	Solid rubber, black	PA, black	Ball bearing
098S080ADN	80	108	-	1000	PA, black; *with slide bearings	PA, black	Slide bearing
098S100ADN	100	133	-	1200	PA, black; *with slide bearings	PA, black	Slide bearing
098S125ADN	125	158	-	1200	PA, black; *with slide bearings	PA, black	Slide bearing
